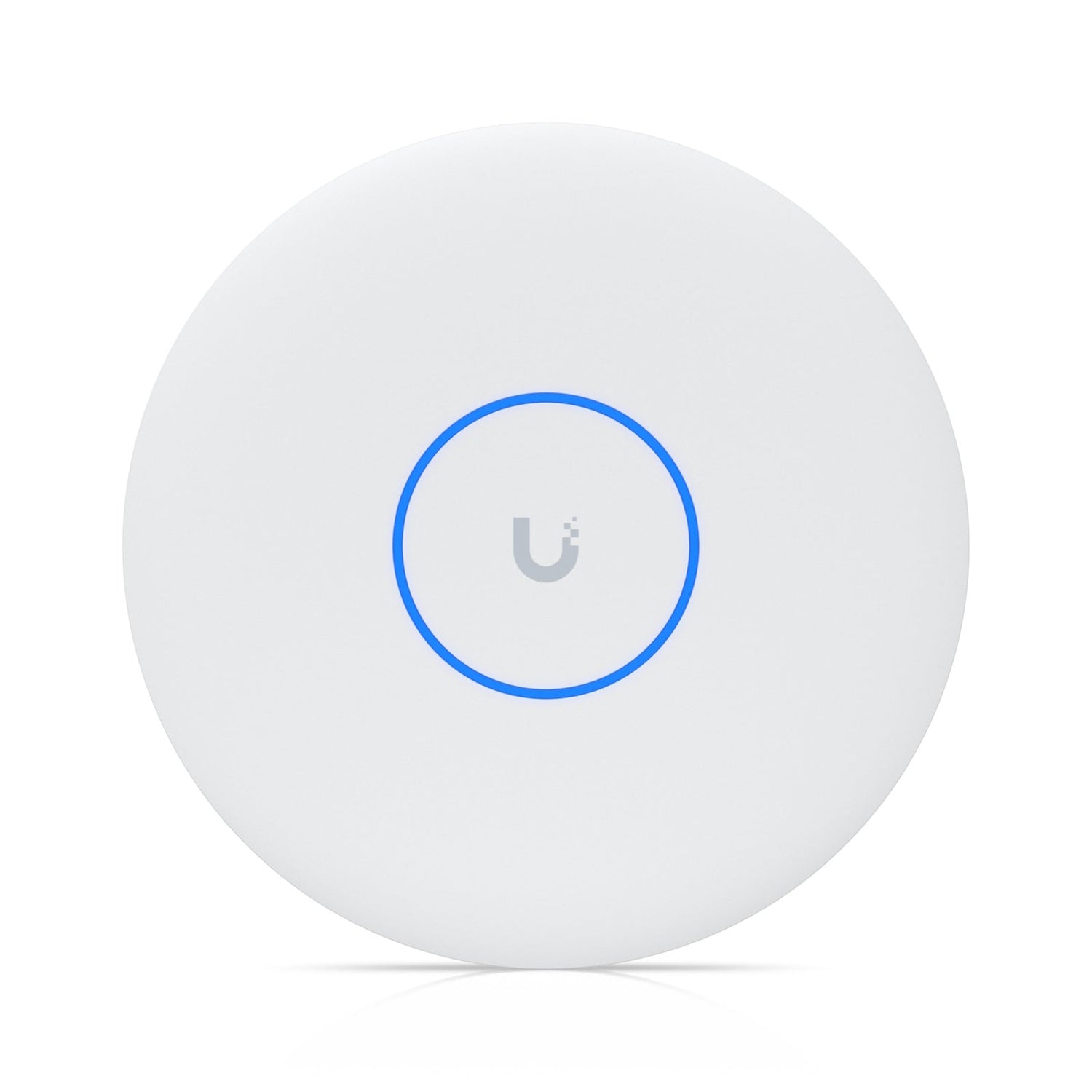

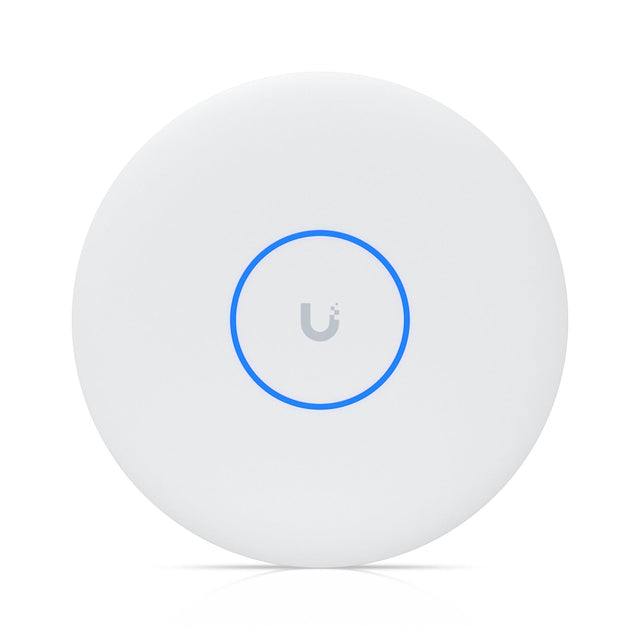

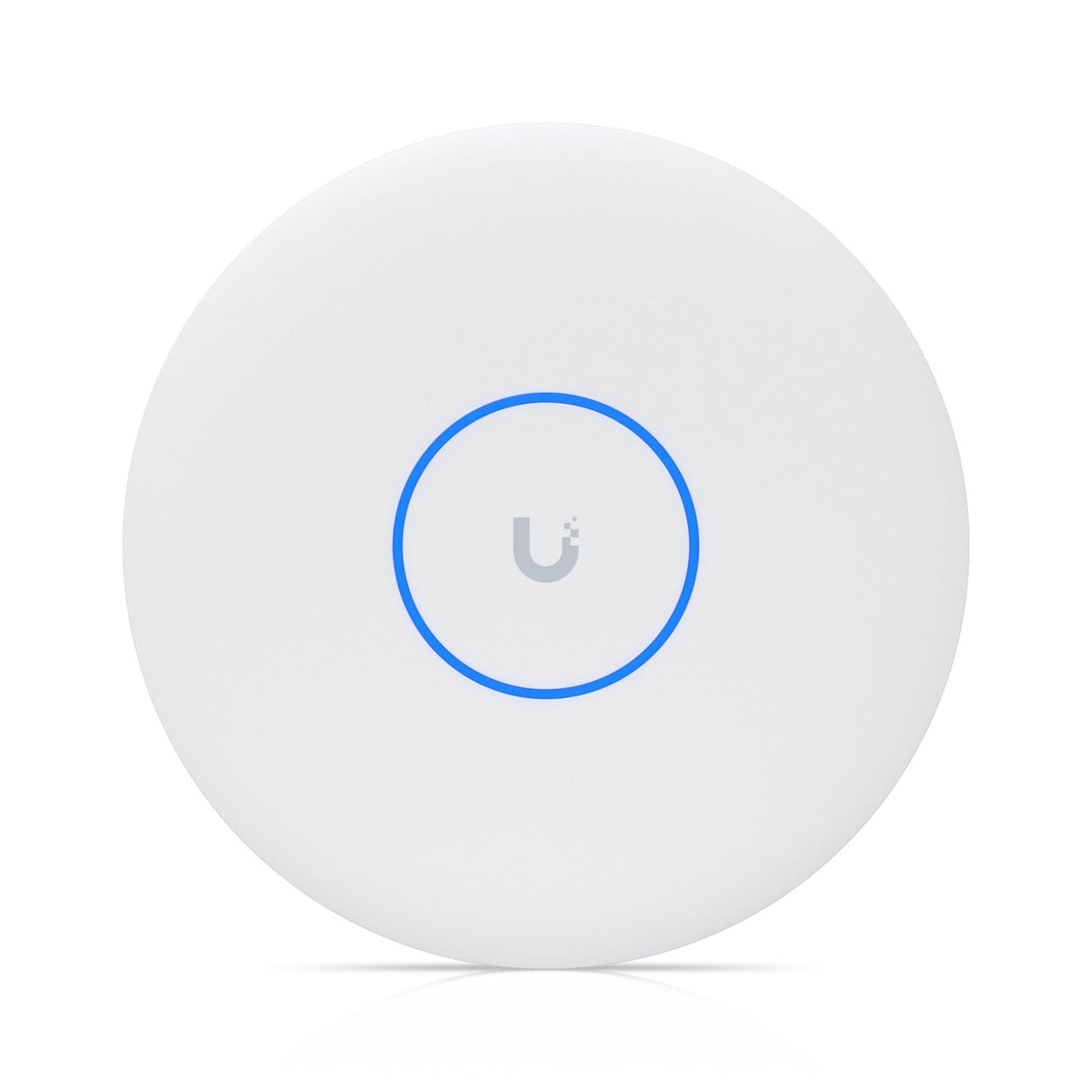

Ubiquiti U7-PRO-XGS UniFi 7 Pro XGS Ceiling Mounted 8 Stream WiFi 7 6GHz 10GbE Access Point - White

Ceiling-Mounted 8-Stream WiFi 7 Access Point with 10 GbE Uplink

Deliver high-performance wireless connectivity with this ceiling- or wall-mounted WiFi 7 access point featuring 8 spatial streams, 6 GHz support, real-time spectral analysis, and multi-gigabit Ethernet up to 10 GbE.

Key Features

• WiFi 7 with 6 GHz support for next-generation wireless performance
• 8 spatial streams for high-capacity, efficient data throughput
• Coverage up to 160 m² (1,750 ft²)
• Supports 500+ client devices
• Real-time spectral analysis for enhanced channel selection
• Zero-wait DFS and advanced radio management
• Ceiling and wall mounting (Lite Mount included)
• Powered via PoE++
• 10 GbE RJ45 uplink with 10/5/2.5/1 GbE support

Performance & Wireless Technology

• WiFi Standard: WiFi 7 (802.11be)
• Spatial Streams: 8
• Coverage Area: 160 m² (1,750 ft²)
• Max. Client Count: 500+
• Max. BSSIDs: 8 per radio
• Wireless Meshing: Yes
• Band Steering: Yes
• Zero-Wait DFS: Yes
• Advanced Radio Management: Yes
• Real-Time Spectral Analysis: Yes

MIMO Configuration

• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 4 x 4 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Maximum Data Rates

• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 8.6 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)

Antenna Gain

• 6 GHz: 6 dBi
• 5 GHz: 6 dBi
• 2.4 GHz: 4 dBi

Max. TX Power

• 6 GHz: 24 dBm
• 5 GHz: 29 dBm
• 2.4 GHz: 23 dBm

Supported WiFi Standards & Data Rates

802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/320)
- 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0–MCS13, NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0–MCS11, NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0–MCS9, NSS1/2/3/4, VHT 20/40/80/160)

802.11n
- 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)

Channel Bandwidth Support

• HT 20/40 MHz
• VHT 20/40/80/160 MHz
• HE 20/40/80/160 MHz
• EHT 20/40/80/160/240/320 MHz

Security & Network Control

• Passpoint (Hotspot 2.0): Yes
• Captive Hotspot Portal: Yes
• Private Pre-Shared Key (PPSK): Yes
• WiFi Speed Limiting: Yes
• Client Device Isolation: Yes
• WiFi Schedules: Yes
• RADIUS over TLS (RadSec): Yes
• Dynamic RADIUS-assigned VLAN: Yes

Roaming & Management Enhancements

• 802.11v BSS Transition Management: Yes
• 802.11r Fast Roaming: Yes
• 802.11k Radio Resource Management (RRM): Yes

Hardware & Power

Physical & Mounting

Certifications

• CE
• FCC
• IC
