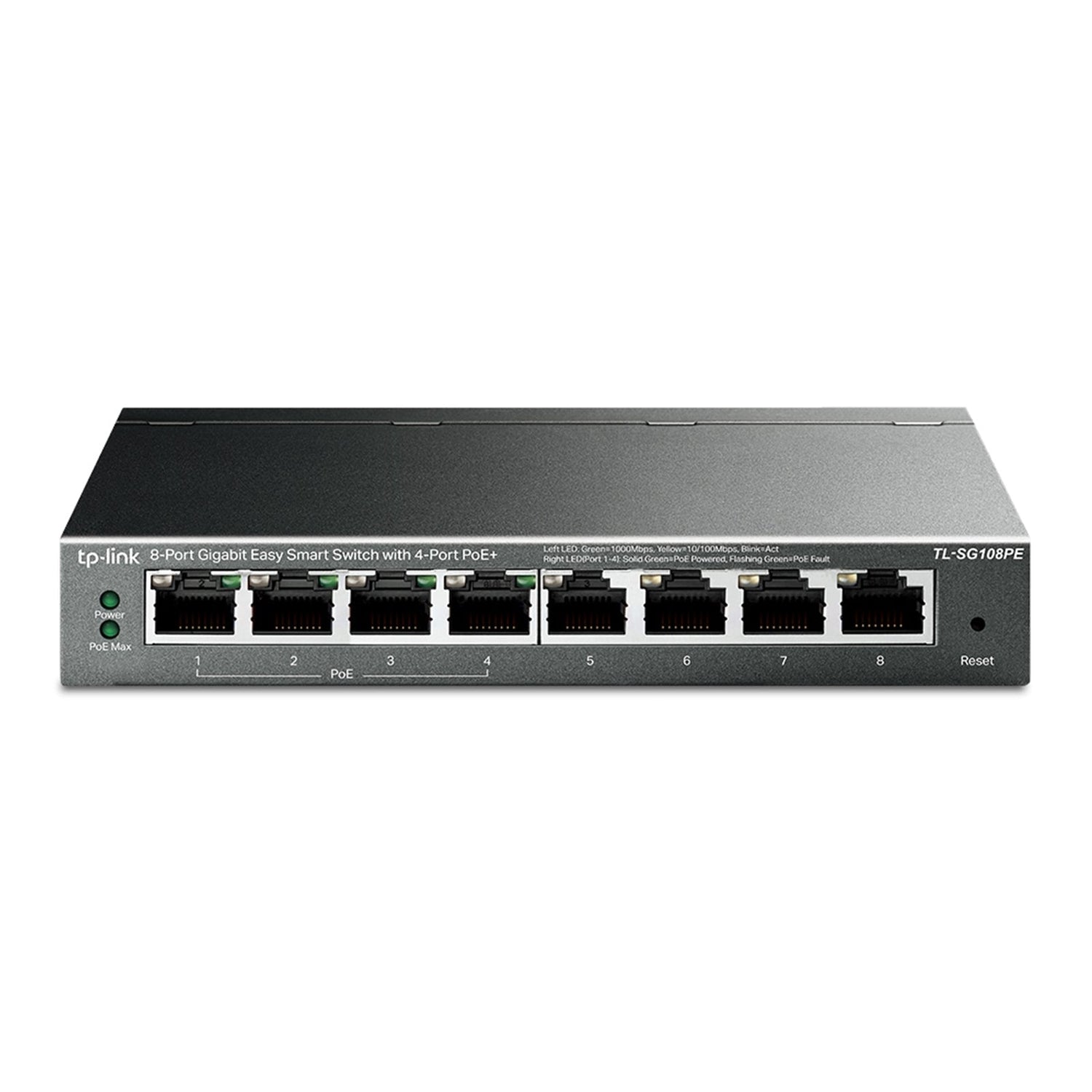

TP-Link TL-SG108PE 8-Port Metal Gigabit Easy Smart Switch with 4-Port PoE+ (64W)
$111.00
8‑Port Gigabit Easy Smart Switch with 4‑Port PoE+ (TL‑SG108PE)
The TL‑SG108PE is an 8‑port Gigabit Easy Smart Switch with 4 PoE+ ports, designed for simple deployment, flexible power delivery, and smarter network control in environments such as surveillance, offices, dormitories, and small businesses.
Key Features
- 8 Gigabit RJ45 Ports
-
Eight 10/100/1000 Mbps RJ45 ports with AUTO Negotiation and AUTO MDI/MDIX
-
4 PoE+ Ports (64 W Power Budget)
- Four 802.3af/at‑compliant PoE+ ports (Port 1–Port 4)
- Up to 30 W per PoE port
- Total PoE power budget up to 64 W*
-
Data and power over a single Ethernet cable
-
Smart Network Management
- Network monitoring and traffic prioritization
- VLAN features to segment traffic for higher security and performance
- PoE Auto Recovery for automatic reboot of offline or unresponsive PDs (such as cameras and APs)
-
Intelligent power management to prevent PoE power overload
-
Simple Setup & Configuration
- Plug‑and‑play installation
- Web‑based user interface
-
Easy Smart Configuration Utility
-
Silent, Reliable Operation
- Fanless design for silent operation and reduced energy consumption
- Durable, high‑quality metal casing
- Tested for reliable switching performance
*PoE budget is not guaranteed and may vary based on environmental conditions.
Multiple Application Scenarios
The TL‑SG108PE is compatible with a wide range of powered and non‑powered devices:
- PoE Devices
- IP cameras
- Access points
-
IP phones
-
Non‑PoE Devices
- PCs
- Printers
- IPTV
- Computers and other wired devices
PoE+ for Flexible Deployment
- 802.3af/at PoE+ Compliance
- Supports up to 30 W on each PoE port
- 64 W Total PoE Budget
- Supports numerous PoE applications in:
- Surveillance
- Offices
- Dormitories
- Small businesses
- Great Compatibility
- Fully compatible with IP cameras, access points, IP phones, computers, printers, and more
- PD detection automatically determines required PoE power and protects non‑PoE equipment
Optimized Network Experience
- QoS for Lag‑Free Performance
-
Ensures smoother traffic for latency‑sensitive applications such as voice and video
-
IGMP Snooping for Multicast Optimization
- Enhances network efficiency and optimizes multimedia traffic delivery
-
Ideal for applications like IPTV
-
VLAN for Enhanced Security
- Divides the network into smaller groups
- Helps improve security and overall network performance
Smart Management & Reliability
- Easy Network Monitoring
- Observe traffic behavior through the web‑based GUI or Easy Smart Configuration Utility
-
Supports network monitoring, traffic prioritization, and enhanced QoS
-
System Self‑Healing with PoE Auto Recovery
- Automatically detects and reboots PoE devices (e.g., cameras, APs) when they go offline or unresponsive
-
Helps ensure stable operation without manual intervention
-
Intelligent Power Management
- Automatically cuts power to lower‑priority PoE ports when total consumption exceeds 64 W
- Protects the switch from power overload
Specifications
Hardware Features
| Category | Details |
|---|---|
| Standards & Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3x, 802.1q, 802.1p, 802.3at |
| Interface | Eight 10/100/1000 Mbps RJ45 ports |
| Auto Features | AUTO Negotiation / AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Standard | 802.3af/at compliant |
| PoE Ports | Port 1 – Port 4 |
| PoE Power Budget | 64 W |
| Dimensions (W × D × H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max Power Consumption | 5.41 W (220V/50Hz, no PD connected) 74.27 W (220V/50Hz, 64 W PD) |
| Max Heat Dissipation | 18.45 BTU/h (no PD connected) 253.26 BTU/h (64 W PD connected) |
Network Media
| Speed | Cable Type (Max 100 m) |
|---|---|
| 10BASE‑T | UTP Cat 3, 4, 5; EIA/TIA‑568 100 Ω STP |
| 100BASE‑TX | UTP Cat 5, 5e; EIA/TIA‑568 100 Ω STP |
| 1000BASE‑T | UTP Cat 5, 5e, 6 or above; EIA/TIA‑568 100 Ω STP |
Performance
| Parameter | Details |
|---|---|
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Transmission Method | Store‑and‑Forward |
Software Features
Quality of Service (QoS)
- Port‑Based / 802.1p / DSCP priority
- 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
Management
- Web‑based GUI
- Easy Smart Configuration Utility
Other Information
Certification
- FCC, CE, RoHS
Package Contents
- TL‑SG108PE
- Power Adapter
- Installation Guide
- Rubber Feet
System Requirements
- Microsoft Windows for running the Utility
