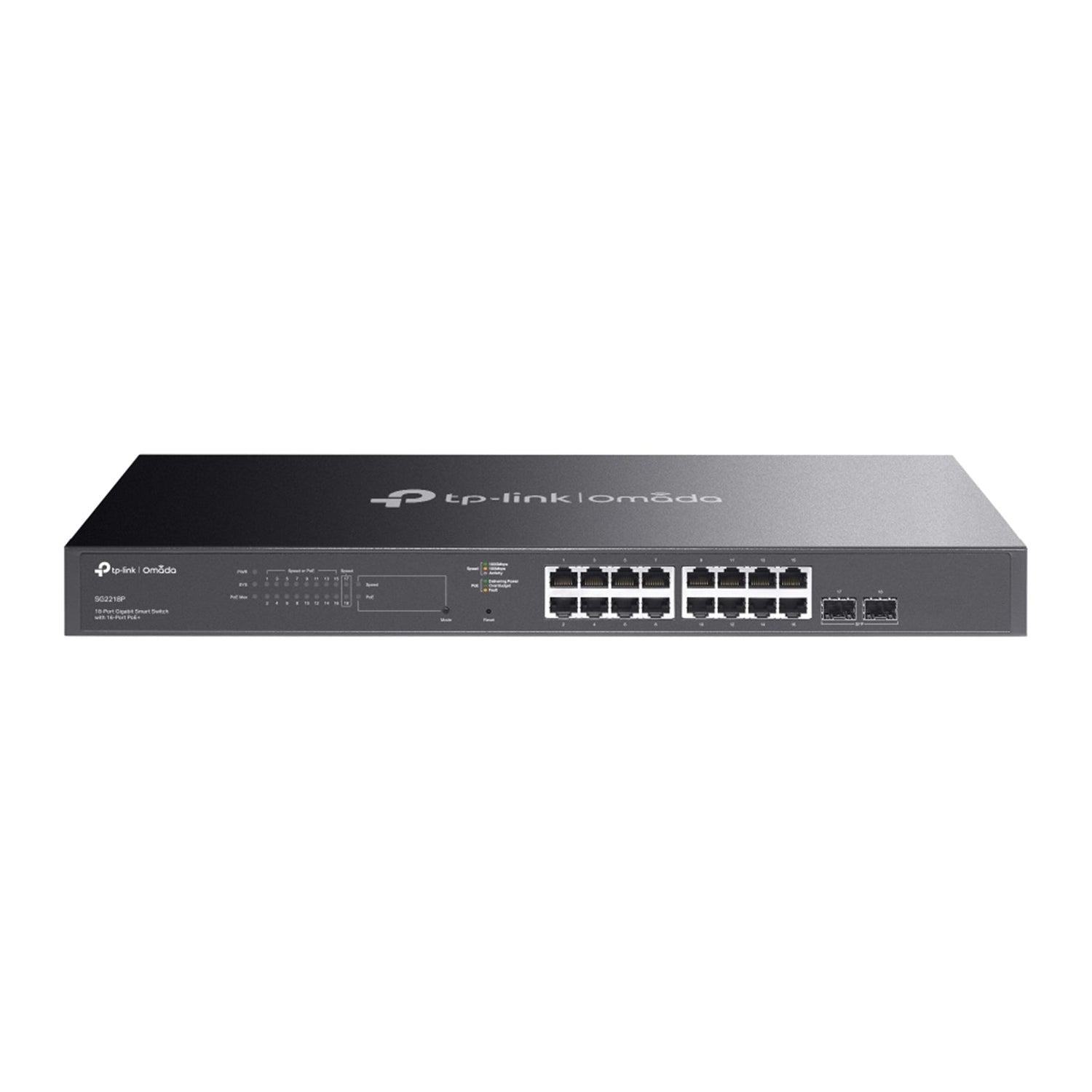

TP-Link Omada SG2218P 18-Port Gigabit Smart Switch with 16-Port PoE

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

The TP-Link Omada 18-Port Gigabit Smart Switch delivers powerful PoE+, advanced Layer 2/L2+ features, and centralized cloud management in a fanless, rackmountable design.

Key Features

• 18 Gigabit Ports with PoE+
• 16× Gigabit 802.3af/at PoE+ RJ45 ports
• Up to 30 W PoE output per port*
• 150 W total PoE power budget*

• 2× Gigabit SFP slots

• Centralized & Standalone Management

• Centralized cloud management via web or Omada app†
• Standalone management via web GUI, CLI, SNMP, and RMON
• Software Defined Networking (SDN) with Cloud Access

• Remotely manage access points, switches, and gateways across multiple sites from a single interface

• Advanced Layer 2/L2+ Functionality

• Static Routing for internal traffic efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• DHCP Server, DHCP Relay, and DHCP L2 Relay

• Rich multicast management with IGMP Snooping and MVR

• Robust Design

• Fanless design for silent operation
• Durable metal casing
• Rackmountable form factor

* Actual PoE power budget may vary.
† Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Hardware Specifications

Performance

Software Features

Quality of Service (QoS)

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority scheduling modes:
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• Queue weight configuration
• Bandwidth control (Port/Flow based rate limit)
• Storm control with multiple control modes (kbps/ratio)
• Broadcast / Multicast / Unknown-Unicast control

L2 and L2+ Features

• 32 IP interfaces: IPv4/IPv6 interface support
• 32 IPv4/IPv6 static routes (Static Routing)
• DHCP Server
• DHCP Relay:
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP, Proxy ARP, Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Port Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP / LLDP-MED

L2 Multicast

• 511 IPv4/IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Management Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

VLAN

• VLAN Groups: up to 4K VLAN groups
• 802.1Q tag VLAN
• MAC VLAN: 12 entries
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List (ACL)

• Up to 230 ACL entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL

Rule Operation:

• Permit / Deny

Policy Actions:

• Mirroring
• Redirect
• Rate Limit
• QoS Remark

ACL Binding:

• Port binding
• VLAN binding

Security

• IP-MAC-Port Binding
• AAA
• 802.1X
• Port-based authentication
• MAC (Host) based authentication
• Authentication methods: PAP / EAP-MD5
• MAB
• Guest VLAN
• Radius authentication and accountability
• IP/IPv6-MAC Binding (512 binding entries)
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Detection
• IP Source Guard (253 entries: Source IP + Source MAC)
• IPv6 Source Guard (183 entries: Source IPv6 Address + Source MAC)
• DoS Defense
• Static/Dynamic/Permanent Port Security (up to 64 MAC addresses per port)
• Broadcast/Multicast/Unicast Storm Control (kbps/ratio control mode)
• Port Isolation
• Secure web management via HTTPS with SSLv3/TLS 1.2
• Secure CLI management via SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6 Features

• IPv6 Static Routing and ACL
• Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 Neighbor Discovery (ND)
• Path MTU Discovery
• ICMPv6
• TCPv6/UDPv6

IPv6 Applications:

• DHCPv6 Client
• Ping6
• Tracert6
• Telnet(v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• HTTP/HTTPS
• IPv6 TFTP

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• TP-Link private MIBs
• RMON MIB (RFC1757, RMON 1, 2, 3, 9)

Management & Omada SDN

Omada App

• Supported (requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller)

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access & Zero-Touch Provisioning

• Cloud Access (with Omada controller)
• Zero-Touch Provisioning (with Omada Cloud-Based Controller)

Management Features

• Web-based GUI
• Command Line Interface (CLI) through Telnet
• SNMP v1/v2c/v3
• SNMP Trap/Inform
• RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

Other Information

Certification

• CE
• FCC
• RoHS

Package Contents

• SG2218P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

System Requirements

• Microsoft Windows XP/Vista/7/8/10/11
• MAC OS
• NetWare
• UNIX
• Linux

Environment

• Operating Temperature: 0–45 °C (32–113 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH, non-condensing
• Storage Humidity: 5–90% RH, non-condensing
