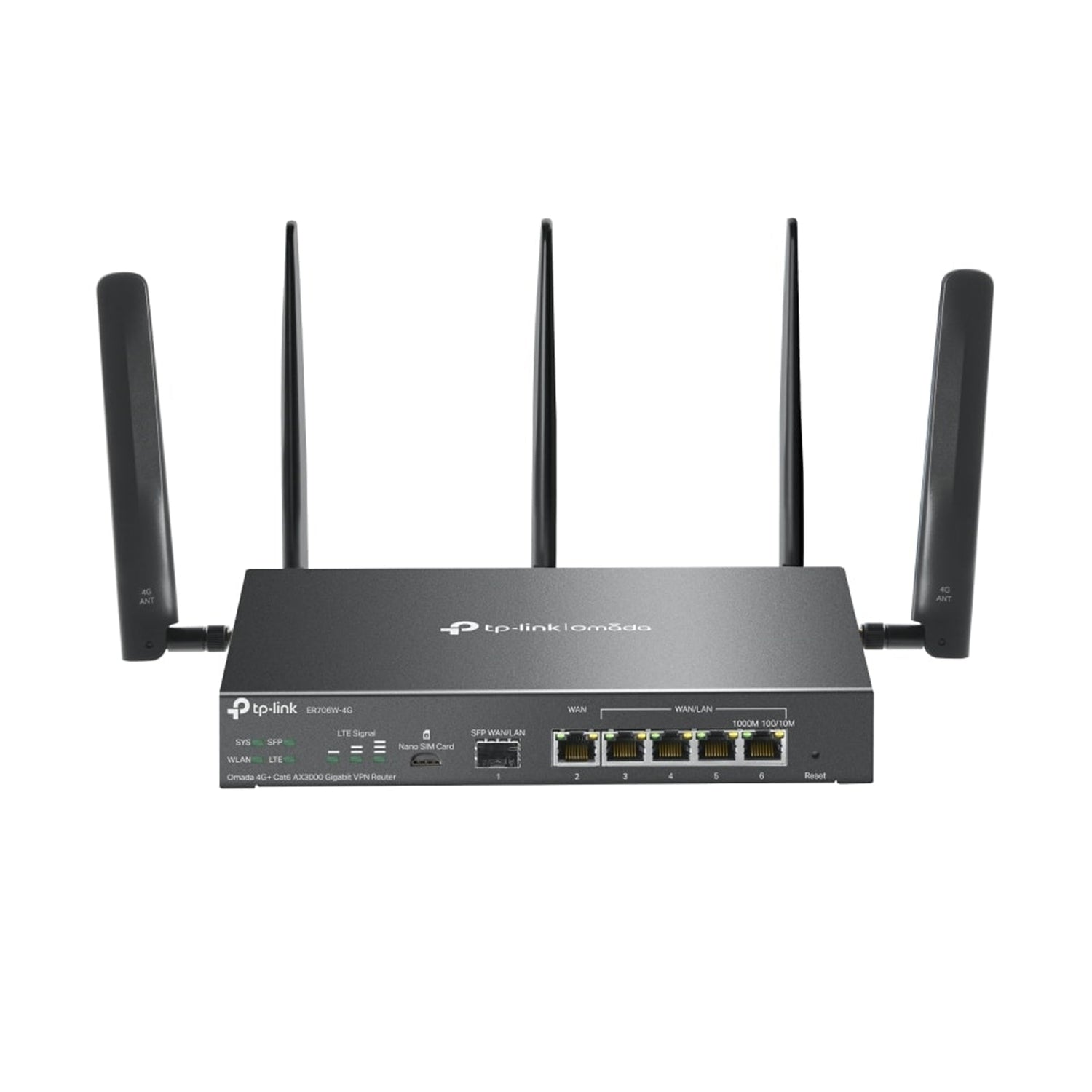

TP-Link Omada ER706W-4G 4G+ Cat6 AX3000 Gigabit VPN Router

TP-Link Omada ER706W-4G AX3000 Gigabit VPN Router with 4G+ Cat6

The TP-Link Omada ER706W-4G is a high-performance AX3000 Gigabit VPN router designed for flexible 4G+ connectivity, secure VPN performance, and centralized cloud management via the Omada platform.

Key Features

• 4G+ Cat6 Connectivity

• Insert a Nano SIM card to enjoy 4G+ Cat6 speeds of up to 300 Mbps downlink and 50 Mbps uplink.

• AX3000 Dual-Band Wi-Fi 6

• 5 GHz: up to 2402 Mbps (HE160)

• 2.4 GHz: up to 574 Mbps

• High-Speed Wired Networking

• 6 Gigabit Ethernet ports for reliable, high-speed wired connections.

• Detachable High-Gain Antennas

• 5 high-gain detachable antennas to extend and concentrate Wi-Fi signals (3 Wi-Fi antennas, 2 LTE antennas).

• Centralized Cloud Management

• Manage easily via Omada Cloud-Based Controller, Omada Hardware/Software Controller, and Omada app

• Supports zero-touch provisioning, unified configuration, intelligent network monitoring, and abnormal event warnings.

• Omada Mesh Support

• Seamlessly connects to EAP access points that support mesh technology.

• High-Security VPN

• Supports IPSec, SSL, WireGuard, OpenVPN, PPTP, and L2TP VPN.

4G Network Specifications

Network Type

• 4G LTE-FDD (EU Bands):
  B1/B3/B5/B7/B8/B20/B28/B32
  (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD:
  B38/B40/B41
  (2600/2300/2500 MHz)
• 3G: DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA
  B1/B3/B5/B8 (2100/1800/850/900 MHz)

Carrier Aggregation Combinations

• B1 + B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
• B3 + B3/B5/B7/B8/B20/B28/B38/B40/B41
• B5 + B5/B7/B38/B40/B41
• B7 + B7/B8/B20/B28/B32
• B8 + B32/B38/B40/B41
• B20 + B32/B38/B40
• B28 + B32/B38/B40/B41
• B38 + B38
• B40 + B40
• B41 + B41

SIM Type

• 1 × Nano SIM card slot

4G Speed

• Downlink: 300 Mbps
• Uplink: 50 Mbps

Security Features

• DPI (Deep Packet Inspection)
• Application control via DPI

• Updated application library

• IDS/IPS

• Signature-based IPS/IDS threat detection

• Access Control & Filtering

• Source/Destination IP-based access control
• Web Group Filtering

• URL Filtering

• Web Security & ARP Protection

• ARP Inspection (sending GARP packets, ARP scanning)

• IP-MAC binding

• Attack Defense

• TCP/UDP/ICMP flood defense
• Block TCP scan (Stealth FIN/Xmas/Null)

• Block ping from WAN

• Wireless Encryption

• WPA/WPA2/WPA3 Personal
• WPA/WPA2/WPA3 Enterprise

Hardware Specifications

Performance

Wireless Features

• Seamless roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate limit (based on SSID/client)
• Airtime fairness
• Wireless encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 total (8 per radio)
• Guest network support

Basic Network Functions

• WAN Connection Types
• Static IP, Dynamic IP, PPPoE (supports MRU configuration), PPTP, L2TP

• MAC clone, modify WAN address

• DHCP

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP options customization

• DHCP address reservation

• Multi-Network Support

• Multi-IP interfaces

• Multi-Net DHCP

• SMS

• Receive / send SMS

• IPv6 Support

• Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-address mode

• VLAN & IPTV

• 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions

• ACL

• IP/Port/Protocol/Domain name filtering

• Advanced Routing

• Static routing
• Policy routing
• RIP

• OSPF

• Bandwidth Control

• IP-based bandwidth control

• Load Balance

• Intelligent load balance
• Application-optimized routing
• Link backup (timing, failover)

• Online detection

• NAT

• One-to-One NAT
• Multi-Net NAT
• Virtual server
• Port triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

• Session Limit

• IP-based session limit

VPN Capabilities

• GRE

• GRE support (only in Standalone Mode)

• SSL VPN

• 50 tunnels

• IPsec VPN

• 100 IPsec VPN tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive negotiation modes
• DES, 3DES, AES128, AES192, AES256 encryption
• IPsec failover
• IKE v1/v2
• MD5, SHA1, SHA2-384, SHA2-512 authentication
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

• PPTP VPN

• PPTP VPN server
• PPTP VPN client (10)
• 50 tunnels

• PPTP with MPPE encryption

• L2TP VPN

• L2TP VPN server
• L2TP VPN client (10)
• 50 tunnels

• L2TP over IPsec

• OpenVPN

• OpenVPN server
• OpenVPN client (5)
• 55 OpenVPN tunnels
• “Certificate + Account” mode

• Full mode

• WireGuard VPN

• 20 tunnels

Authentication & Captive Portal

• Web authentication modes:
• No Authentication
• Simple Password

• Hotspot (Local User / Voucher / SMS / Radius)

• External integration:

• External Radius server
• External portal server
• LDAP

Management & Omada Integration

• Omada App: Yes
• Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300, OC200)

• Omada Software Controller

• Cloud Access: Yes

• Service & Maintenance

• Dynamic DNS: Dyndns, No-IP, Peanuthull, Comexe, DDNS customization
• Web management interface
• Remote management
• Export & import configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP synchronize
• Port mirroring
• CLI (only in Standalone Mode)

• Syslog support

• Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)

• Management Features

• Automatic device discovery
• Intelligent network monitoring
• Abnormal event warnings
• Unified configuration
• Reboot schedule
• Captive portal configuration

Other Information

• Certification: CE, FCC, RoHS

• Package Contents

• ER706W-4G
• Power adapter

• Quick Installation Guide

• System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX, or Linux

• Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
