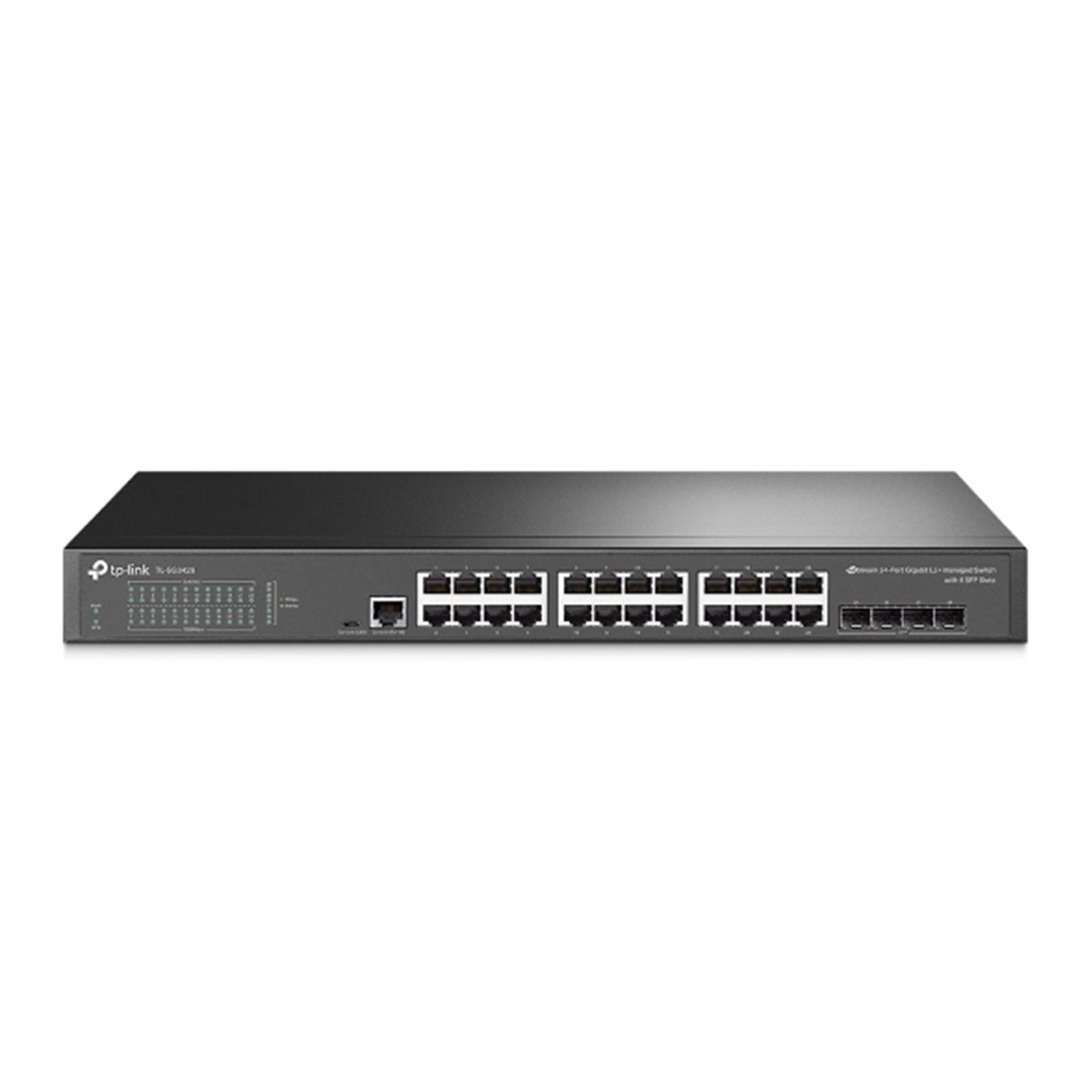

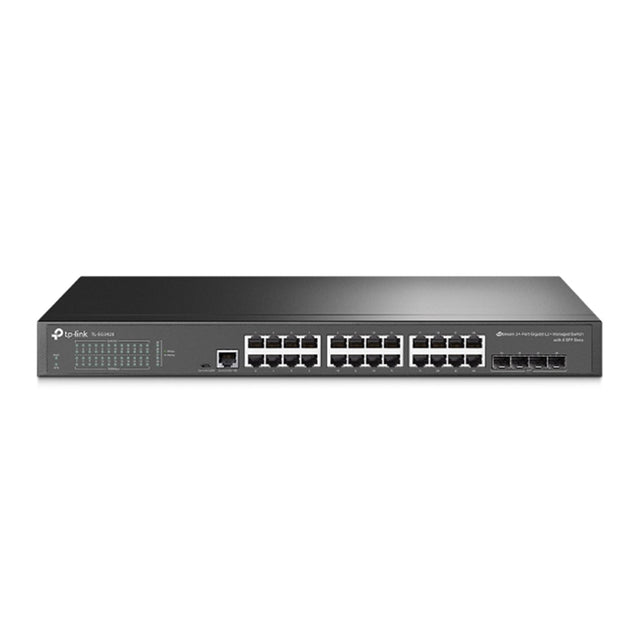

TP-Link JetStream TL-SG3428 24-Port Metal Gigabit L2+ Managed Switch with 4 SFP Slots

JetStream 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots (TL-SG3428)

The JetStream 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots delivers full gigabit performance, advanced L2+/L3 features, and seamless integration with Omada SDN for powerful, centralized network management.

Key Features

• Full Gigabit Connectivity
• 24× 10/100/1000 Mbps RJ45 ports

• 4× gigabit SFP slots for high-speed uplinks

• Omada SDN Integration

• Zero-Touch Provisioning (ZTP)
• Centralized cloud management

• Intelligent network monitoring

• Centralized Management

• Cloud access for remote administration

• Omada app support for convenient management

• Static Routing (L3)

• Routes internal traffic for more efficient use of network resources

• Robust Security Strategies

• IP-MAC-Port Binding, ACL, Port Security
• DoS Defend, Storm Control, DHCP Snooping

• 802.1X and RADIUS authentication

• Optimized for Voice & Video

• L2/L3/L4 QoS

• IGMP snooping to optimize multicast traffic

• Standalone Management Options

• Web-based GUI
• CLI via console port, Telnet, SSH
• SNMP, RMON

• Dual Image for enhanced reliability

• Fanless Design

• Silent operation with fanless hardware

Omada SDN with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates access points, switches, and routers into a single, centrally managed solution. With Omada SDN, you get:

• 100% centralized cloud management
• A highly scalable network architecture
• Unified control from a single interface

This provides seamless wireless and wired connectivity, suitable for environments such as hospitality, education, retail, offices, and more.

Advanced L3 and L2+ Features

The switch supports a wide range of L2+ and L3 capabilities to build scalable, robust networks for enterprises, campuses, and ISPs, including:

• Static IPv4/IPv6 routing
• Multiple IPv4/IPv6 interfaces
• Static ARP and Proxy ARP
• DHCP server, relay, and L2 relay

Secure Networking

Comprehensive security features help protect your infrastructure:

• Binding & Guard Features
• IP-MAC-Port-VID Binding
• IPv6-MAC-Port Binding
• DHCP Snooping / DHCPv6 Snooping
• ARP Inspection / ND Detection

• IPv4 and IPv6 Source Guard

• Threat Defense

• DoS Defend with integrated common attack profiles

• Broadcast/Multicast/Unicast Storm Control (kbps/ratio/pps)

• Access Control

• L2–L4 ACLs (MAC, IP, TCP/UDP ports, VLAN ID, user priority, DSCP/IP TOS, fragment, protocol, packet content, IPv6 ACL)
• Time-based ACL and combined ACL
• ACL actions: mirror, redirect, rate limit, QoS remark

• ACL application at port/VLAN level

• Port & User Security

• Static/Dynamic Port Security (up to 64 MAC addresses per port)

• Port Isolation

• Authentication & AAA

• 802.1X (port-based and MAC-based)
• VLAN assignment, MAB, Guest VLAN
• RADIUS authentication and accountability

• AAA including TACACS+

• Secure Management

• HTTPS with SSLv3/TLS 1.2
• Secure command line access

Enterprise-Level L2+ Features

Enhance stability and flexibility with comprehensive L2+ functions:

• VLAN & Control
• 802.1Q VLAN

• 802.3x Flow Control and HOL blocking prevention

• Spanning Tree Protocols

• STP (802.1d)
• RSTP (802.1w)
• MSTP (802.1s)

• STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

• Link Aggregation

• Static link aggregation
• 802.3ad LACP

• Up to 8 aggregation groups with up to 8 ports per group

• Loopback & Mirroring

• Port-based and VLAN-based loopback detection
• Port mirroring, CPU mirroring
• One-to-One or Many-to-One, Tx/Rx/Both

Advanced Multicast & QoS

L2 Multicast

• Supports 511 IPv4/IPv6 IGMP groups
• IGMP Snooping (v1/v2/v3) with Fast Leave and Snooping Querier
• IGMP Authentication
• MVR
• MLD Snooping (v1/v2) with Fast Leave and Snooping Querier
• Static group configuration and limited IP multicast
• Multicast filtering: 256 profiles, 16 entries per profile

Advanced QoS

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP, WRR, SP+WRR
• Bandwidth control with port/flow-based rate limiting
• Actions for flows: mirror, redirect, rate limit, QoS remark

Voice and video traffic can be prioritized by IP address, MAC address, TCP/UDP port, and more, helping keep services smooth even when bandwidth is limited.

ISP-Oriented Features

Developed with service providers in mind, the switch offers:

• sFlow
• QinQ
• L2PT
• PPPoE ID insertion
• IGMP authentication
• 802.3ah OAM
• Device Link Detection Protocol (DLDP) for link monitoring and troubleshooting

IPv6-Ready Networking

The switch is equipped with IPv6 capabilities to support Next Generation Networks (NGN) without hardware upgrades:

• Dual IPv4/IPv6 stack
• MLD Snooping
• IPv6 ACL and IPv6 interface
• Static IPv6 routing
• IPv6 Neighbor Discovery (ND)
• Path MTU discovery
• ICMPv6, TCPv6, UDPv6
• IPv6 applications:
• DHCPv6 client
• Ping6, Tracert6
• Telnet (v6)
• IPv6 SNMP, IPv6 SSH, IPv6 SSL
• HTTP/HTTPS
• IPv6 TFTP

Management & Monitoring

Manage and monitor with flexible options:

• Interfaces
• Web-based GUI

• CLI via console port and Telnet

• Protocols & Tools

• SNMP v1/v2c/v3 with Trap/Inform
• RMON (1, 2, 3, 9 groups)
• 802.1ab LLDP/LLDP-MED
• DHCP/BOOTP client
• DHCP AutoInstall
• SDM Template
• CPU monitoring
• Cable diagnostics
• EEE
• Password recovery
• SNTP

• System log

• Advanced Management Features

• Dual Image, dual configuration
• Reboot schedule

Omada Centralized Management

Fully compatible with Omada’s controller options:

• Omada App

• Access via:

  • Omada Cloud-Based Controller (TL-SG3428 v2 and above)
  • OC300
  • OC200
  • Omada Software Controller

• Centralized Management

• Omada Cloud-Based Controller (TL-SG3428 v2 and above)
• Omada Hardware Controllers (OC300, OC200)

• Omada Software Controller

• Cloud Access

• Through Omada Cloud-Based Controller (TL-SG3428 v2 and above), OC300, OC200, or Omada Software Controller

• Zero-Touch Provisioning (ZTP)

• Requires Omada Cloud-Based Controller (TL-SG3428 v2 and above)

• Advanced Omada Features

• Automatic device discovery
• Batch configuration and firmware upgrading
• Intelligent network monitoring
• Abnormal event warnings
• Unified configuration

Hardware Specifications

Performance Specifications

L3 Features

• 16 IPv4/IPv6 interfaces
• Static routing with up to 48 static routes
• Static ARP, 512 ARP entries
• Proxy ARP and Gratuitous ARP
• DHCP server, DHCP relay, DHCP L2 relay

MIB Support

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RADIUS Accounting Client MIB (RFC2620)
• RADIUS Authentication Client MIB (RFC2618)
• Remote Ping/Traceroute MIB (RFC2925)
• RMON MIB (RFC1757, RMON 1,2,3,9)
• TP-Link private MIBs

Certifications

• CE
• FCC
• RoHS

Package Contents

• TL-SG3428 Switch
• Power cord
• Quick Installation Guide
• Rackmount kit
• Rubber feet

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 10, 11
• MAC OS
• NetWare
• UNIX
• Linux

Environmental Specifications

• Operating Temperature: 0–45 °C (32–113 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH, non-condensing
• Storage Humidity: 5–90% RH, non-condensing
