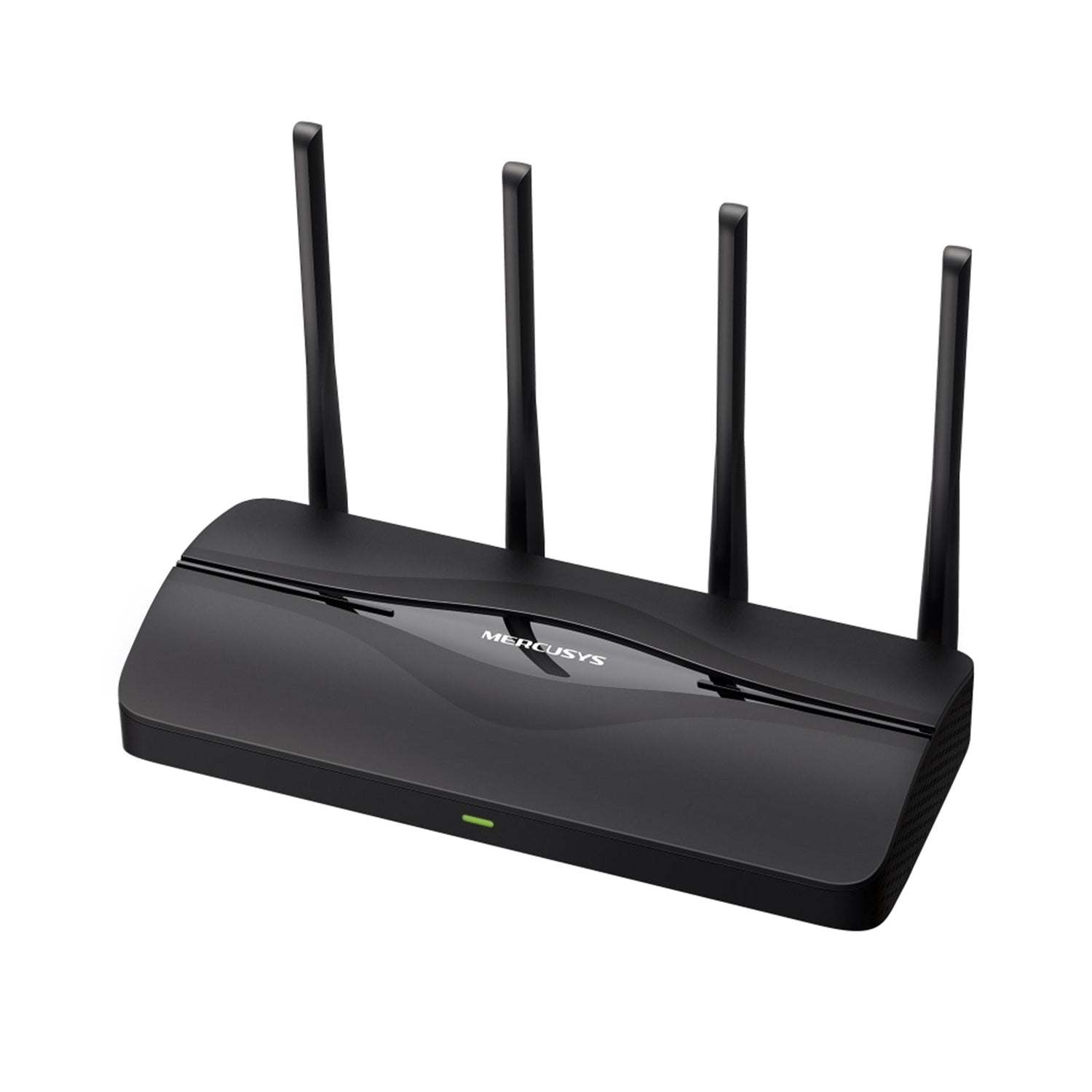

Mercusys MR27BE BE3600 Dual-Band Wi-Fi 7 Router

Mercusys BE3600 Dual Band Wi‑Fi 7 Router (MR27BE)

Experience next-generation home networking with the Mercusys BE3600 Dual Band Wi‑Fi 7 Router, combining ultra-fast speeds, advanced features, and easy management in one powerful device.

Ultra-Fast BE3600 Dual-Band Wi‑Fi 7

• Wi‑Fi Class: BE3600
• Total Speed up to 3.6 Gbps
• 2.4 GHz: 688 Mbps
• 5 GHz: 2880 Mbps

Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads. Armed with 160 MHz channels, 4K-QAM, MLO (Multi-Link Operation) and other Wi‑Fi 7 technologies, the BE3600 delivers jaw-dropping performance so your devices can run at full speed.

Multi-Link Operation (MLO)

Multi-Link Operation (MLO) increases throughput, reduces latency, and improves reliability for emerging applications, enhancing the overall responsiveness and stability of your network.

High-Speed 2.5G Ports

Break through the 1G bottleneck and drive your devices to peak performance with:

• 1 × 2.5 Gbps WAN port
• 1 × 2.5 Gbps LAN port
• 2 × 1 Gbps LAN ports

Maximized Coverage and Stable Connections

• 4 × omnidirectional external antennas
• 2 × 5 GHz antennas (5 dBi)
• 2 × 2.4 GHz antennas (4 dBi)
• Proprietary Wi‑Fi optimization
• Beamforming technology

These features deliver broader coverage, more capacity, stronger and more reliable connections, and reduced interference throughout your home.

Whole Home Coverage with EasyMesh

EasyMesh-Compatible design allows the BE3600 to work with EasyMesh routers and range extenders to create seamless whole home mesh Wi‑Fi, helping prevent drops and lag when moving between signals.

Easy Setup and Smart Management

Set up and manage your network with ease using the MERCUSYS app or a web browser.

• MERCUSYS App management
• Web management (HTTP/HTTPS)
• Cloud management via MERCUSYS ID

Specifications

Wireless

Reception Sensitivity – 5 GHz

• 11ac
• VHT20_MCS0: −97 dBm, VHT20_MCS8: −75 dBm
• VHT40_MCS0: −94 dBm, VHT40_MCS9: −70 dBm
• VHT80_MCS0: −91 dBm, VHT80_MCS9: −67 dBm

• VHT160_MCS0: −88 dBm, VHT160_MCS9: −63 dBm

• 11ax

• HE20_MCS0: −96 dBm, HE20_MCS11: −66 dBm
• HE40_MCS0: −93 dBm, HE40_MCS11: −66 dBm
• HE80_MCS0: −91 dBm, HE80_MCS11: −63 dBm

• HE160_MCS0: −87 dBm, HE160_MCS11: −59 dBm

• 11be

• EHT20_MCS13: −61 dBm
• EHT40_MCS13: −59 dBm
• EHT80_MCS13: −55 dBm
• EHT160_MCS13: −52 dBm

Reception Sensitivity – 2.4 GHz

• 11ax
• HE20_MCS0: −97 dBm, HE20_MCS11: −68 dBm

• HE40_MCS0: −95 dBm, HE40_MCS11: −65 dBm

• 11be

• EHT20_MCS13: −61 dBm
• EHT40_MCS13: −59 dBm

Hardware

IPTV

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

Software

Operation Modes

• Router mode
• AP mode

WAN Modes

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

NAT Forwarding

• Port Forwarding
• Port Triggering
• DMZ
• UPnP

Protocols

• IPv4
• IPv6

Guest Network

• 2.4 GHz Guest Network
• 5 GHz Guest Network

Parental Controls

• Profile Settings
• Time Control
• Pause the Internet
• Website Filtering

DHCP

• Address Reservation
• DHCP Client List
• Server

DDNS

• MERCUSYS
• NO-IP
• DynDNS

VPN

• VPN Server: OpenVPN, PPTP, L2TP/IPSec, WireGuard
• VPN Client: OpenVPN, PPTP, L2TP/IPSec, WireGuard

EasyMesh & QoS

• EasyMesh Compatible
• QoS: Time Settings, Priority Control

Security & ISP Features

• SPI Firewall
• Access Control
• IP & MAC Binding
• Kill Switch Support
• CWMP
• ISP Preset (Agile Config)
• Superadmin

System Management

• Firmware Upgrade
• Backup and Restore
• Administration
• System Log
• Time & Language Settings
• Reboot
• Diagnostics: Ping, Traceroute
• LED Management: LED Control, Night Mode
• Device Management: MERCUSYS App, Webpage, Cloud (MERCUSYS ID)

Supported UI Languages

Bulgarian, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Portuguese (Brazil), Romanian, Russian, Slovak, Swedish, Turkish, Ukrainian, Vietnamese, Chinese (Taiwan).

Advanced Wireless Features

• Multi-Link Operation (MLO)
• Multi-RUs
• OFDMA
• MU-MIMO
• BSS Color
• Beamforming

Network Services Enabled by Default

• Web Server: Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 – Protocol: TCP
• DNS:
• Port: 53 – Protocol: TCP & UDP
• DHCP Server: IP address assignment
• Port: 67 – Protocol: UDP
• App Management: Manage and configure device through app
• Port: 20001 – Protocol: TCP
• Port: 30001 – Protocol: TCP
• Port: 20002 – Protocol: UDP

Package Contents

• BE3600 Wi‑Fi 7 Router (MR27BE)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment
