Maiwo USB Type-C, Dual Bay HDD/NVMe M2 SSD 10Gbps Clone Converter For 2.5" and 3.5" SATA, Clone SATA to NVMe Instantly

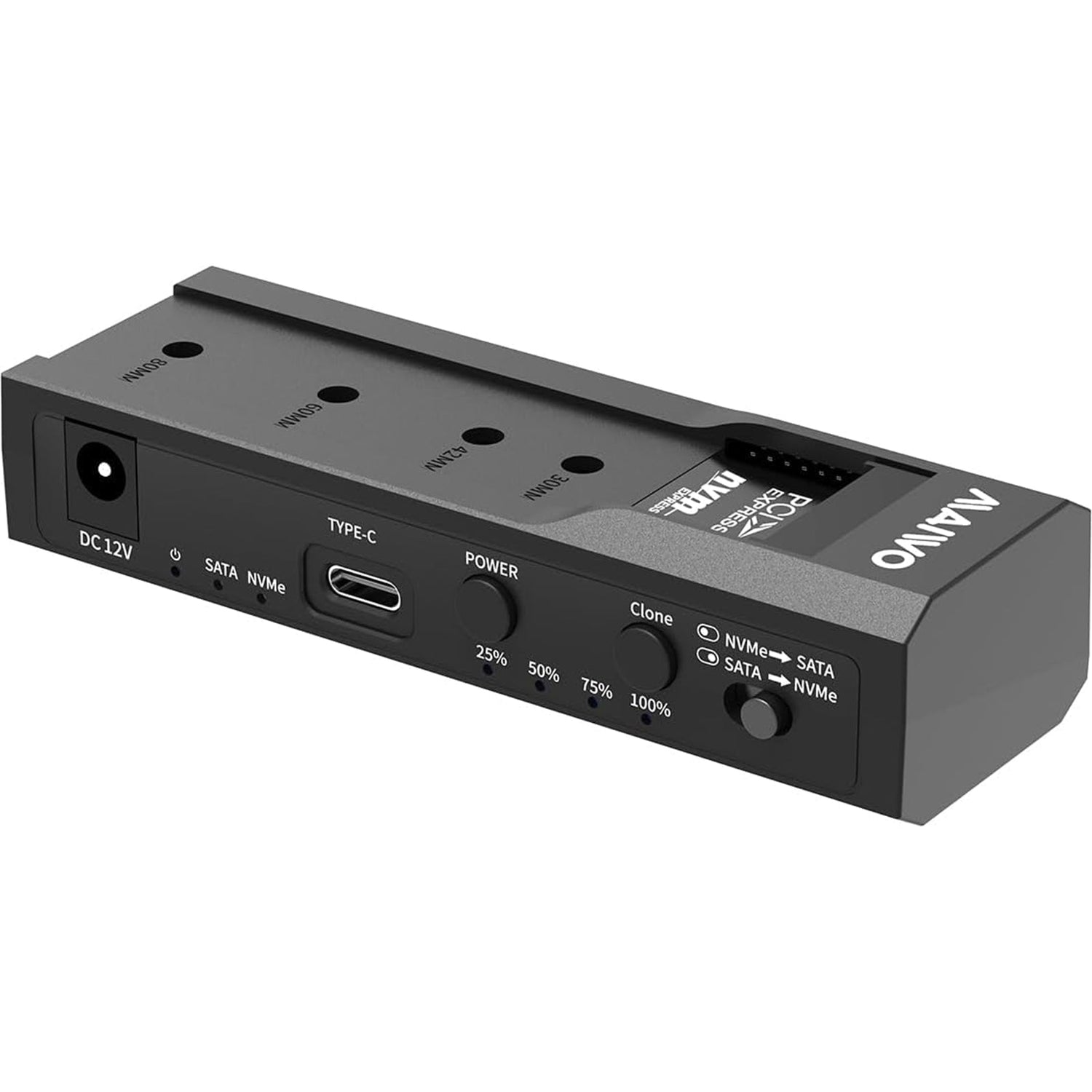

MAIWO K10635N Type-C 10Gbps Dual-Bay HDD / NVMe M.2 SSD Clone Converter

The MAIWO K10635N is a dual-bay Type-C 10Gbps converter designed for easy installation, high-speed data transfer, and offline cloning between 2.5"/3.5" SATA drives and M-key NVMe M.2 SSDs.

Key Features

• Screw-less Design
  Tool-free installation for both HDD and SSD.

• Wide Compatibility
  Compatible with various HDDs and SSDs on the market, including:

• M-key NVMe SSD
• 2.5" SATA HDD / SSD

• 3.5" SATA HDD
  Supports recognition of two disks simultaneously when connected to a PC.

• Offline Clone Function
  M-key NVMe SSD offline clone with dual-way support:

• 2.5"/3.5" SATA ⇒ NVMe

• NVMe ⇒ 2.5"/3.5" SATA
  Physical switch to control source and target disk.

• Clone Progress Indicators
  Four LED lights indicate cloning progress at:

• 25%
• 50%
• 75%

• 100%

• High-Speed Interface

• Interface: Type-C to SATA / M-key M.2
• USB speed up to 10Gbps (max)

• Supports UASP, improving speed by up to 30% on Windows 8 or above.

• M.2 SSD Size Support
  Supports M-key NVMe SSD sizes:

• 2230
• 2242
• 2260

• 2280

• Multi-OS Compatibility
  Compatible with:

• Windows
• Mac
• Linux

Specifications

Ideal For

• System Upgrades
  Easily migrating an OS from an old SATA HDD to a modern, fast M.2 NVMe SSD.

• Data Recovery
  Accessing data from different drive types without needing multiple specialized adapters.

• Content Creation
  Managing large libraries of media files across different storage mediums at high speed.

LED Indicators

Drive Indicator
- Flashes during read & write activity
- Turns off when in sleep mode

Clone Indicator
- Flashes when cloning is in progress
- Stays lit when cloning is finished

Basic Setup Steps

Step 1
Insert a 2.5"/3.5" SATA drive into the SATA port, or insert an M.2 NVMe SSD into the M.2 port.

Step 2
Spin the silicone cork to fix the M.2 SSD.

Step 3
Connect the adapter to your device via the data cable.

Step 4
Connect the power adapter and turn on the power switch.

Clone Operation Steps

Step 1 – Choose Clone Mode

• Ensure the capacity of the target drive is larger than or equal to the source drive.
• Connect the power adapter and switch on the POWER.
• The power light turns on and both Drive Indicators light up.

Step 2 – Start Cloning

• Long-press the Clone button for 5 seconds until the Clone Indicator flashes.
• Press the Clone button again within 5 seconds to enter clone mode.
• Corresponding progress indicators flash during cloning.
• Indicators stay on once cloning is finished.

Important Note:
You must remove the USB-C cable from the PC for the cloning process to work.

Box Contents

• 1 × Adapter
• 1 × Cable
• 1 × Power adapter
• 3 × Screws
• 1 × Manual
• 1 × Warranty card

Warranty: 1 Year
