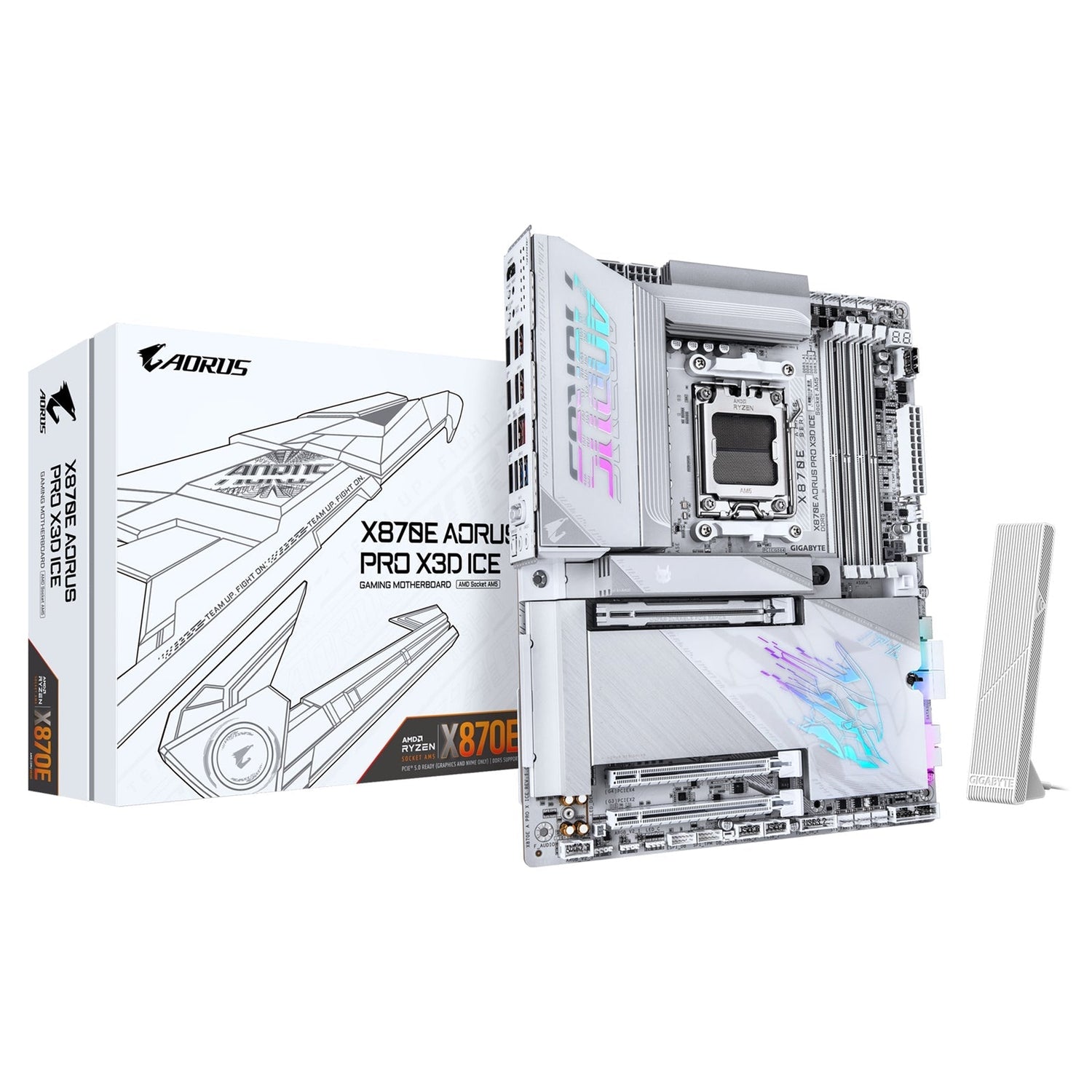

Gigabyte X870E AORUS PRO X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)
Gigabyte X870E AORUS PRO X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4) är omordnad och kommer att levereras så snart det är tillbaka i lager.
Kunde inte ladda tillgänglighet
We Accept:
Leverans och frakt
Leverans och frakt
Frakt & Processing
Orderbearbetning
- Samma arbetsdag för beställningar placerade före 3 PM (GMT), utom i sällsynta fall när det kan ta 1 extra arbetsdag.
- Större eller specialartiklar kräver upp till 3 arbetsdagar att bearbeta.
Leveransalternativ
- Royal Mail 48
- Gratis på order över £20
- £2,99 på order under £20
- Leverans i 2-3 arbetsdagar
- Spårad 24 (nästa dag)£ 4,99
- Standard (Large & Specialist objekt)
- Gratis på order över £20
- £ 6,99 på order under £ 20
- Leverans i 2-14 arbetsdagar (vanligtvis cirka 7 dagar)
- Behandling kan ta upp till 3 arbetsdagar
- Internationellt internationellt
- Vi skickar över hela världen. Leveransalternativ och uppskattade tidsramar för ditt land är tillgängliga vid kassan.
- Tull, tullar och importskatter är ditt ansvar.
Du får spårningsdetaljer så fort din beställning fartyg [Spåra din beställning här]. För fullständiga detaljer, se vår [Shipping Policy].
Gigabyte X870E AORUS PRO X3D ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)
$584.00
X870E AORUS PRO X3D ICE Motherboard
Key Features
- X3D Turbo Mode 2.0
- Incredible X3D performance unleashed by AI
-
DDR5 overclocking support up to 9000 MT/s
-
DriverBIOS
- Wi‑Fi driver pre-install
-
Power-On & easy network launch
-
AMD Socket AM5
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
-
Robust Power Delivery
-
Digital Twin 18+2+2 phases VRM solution
-
High-Speed DDR5 Memory
- Dual channel DDR5
-
4 x DIMM slots with AMD EXPO™ memory module support
-
Advanced M.2 Design
- M.2 EZ-Flex: high-efficiency heat dissipation and flexible patented baseplate for M.2 SSD
-
M.2 EZ-Latch Click & Plus: quick release and screwless design on M.2 slots and heatsinks
-
Connectivity & Networking
- Fast Networking: 5GbE LAN & Wi‑Fi 7 with directional ultra-high gain antenna
-
Extended Connectivity: HDMI, Dual USB4 Type‑C with DP‑Alt, Front QC‑USB 65W
-
Thermal & PCB Engineering
- Efficient Thermal: VRM Thermal Armor Advanced, M.2 Thermal Guard L & M.2 Thermal Guard Ext.
-
PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability
-
PCIe & Expansion
-
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
-
User-Friendly Experience
- Friendly UI: Multi-Theme, AIO Fan Control, and Q‑Flash Auto Scan in BIOS and software
- WIFI EZ-Plug: quick and easy design for Wi‑Fi antenna installation
Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
Chipset
| Item | Details |
|---|---|
| Chipset | AMD X870E |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds | 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s |
| DIMM Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel memory architecture |
| Module Support | Non‑ECC Un‑buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules |
| Overclock Profiles | AMD EXPO™ and XMP memory modules support |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated GPU | Integrated Graphics Processor with AMD Radeon™ Graphics support |
USB4® / Display Outputs via ASMedia USB4® Controller
- 2 x USB4® USB Type‑C® ports
- USB4 and DisplayPort video output
- Maximum resolution: 3840x2160 @ 240 Hz
HDMI Outputs via Integrated Graphics
- 1 x HDMI port
- Maximum resolution: 4096x2160 @ 60 Hz
- 1 x front HDMI port
- Maximum resolution: 1920x1080 @ 30 Hz
Audio
| Item | Details |
|---|---|
| Codec | Realtek® ALC1220 |
| Audio Type | High Definition Audio |
| Channels | 2 / 4 / 5.1 / 7.1‑channel |
| Digital Output | Support for S/PDIF Out |
LAN
| Item | Details |
|---|---|
| Controller | Realtek® 5GbE LAN chip |
| Speeds | 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Item | Details |
|---|---|
| Module | Qualcomm® Wi‑Fi 7 QCNCM865 |
| Standards | 802.11a / b / g / n / ac / ax / be |
| Frequency Bands | 2.4 / 5 / 6 GHz carrier frequency bands |
| Bluetooth | BLUETOOTH 5.4 |
| Wireless Standard | Support for 11be 320 MHz wireless standard |
Expansion Slots
| Item | Details |
|---|---|
| CPU-Integrated Slot | 1 x PCI Express x16 (PCIEX16) |
PCIEX16 (CPU Integrated) Modes
- AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series‑Phoenix 1: PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series‑Phoenix 2: PCIe 4.0 x4 mode
Chipset Slots
- 1 x PCI Express x16 slot (PCIEX4), PCIe 4.0, running at x4
- 1 x PCI Express x16 slot (PCIEX2), PCIe 3.0, running at x2
Storage Interface
| Item | Details |
|---|---|
| M2A_CPU | 1 x M.2 (Socket 3, M key, type 25110/22110/2580/2280 SSDs) |
M2A_CPU Support
- AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series‑Phoenix 1: PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series‑Phoenix 2: PCIe 4.0 x4/x2 SSDs
| Item | Details |
|---|---|
| M2B_CPU | 1 x M.2 (Socket 3, M key, type 22110/2280 SSDs) |
M2B_CPU Support
- AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x4/x2 SSDs
| Item | Details |
|---|---|
| M2C_SB / M2D_SB | 2 x M.2 (Socket 3, M key, type 22110/2280) |
M2C_SB & M2D_SB (Chipset)
- PCIe 4.0 x4/x2 SSDs
| Item | Details |
|---|---|
| SATA | 4 x SATA 6 Gb/s connectors |
RAID Support
- NVMe SSD: RAID 0, 1, 5, 10
- SATA: RAID 0, 1, 10
USB
CPU + ASMedia USB4® Controller
- 2 x USB4® USB Type‑C® ports on the back panel
CPU
- 1 x USB Type‑C® port on the back panel (USB 3.2 Gen 2)
Chipset + USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports via internal USB headers
Chipset
- 1 x USB Type‑C® header with USB 3.2 Gen 2x2 support (up to 65W PD 3.0 / QC 4+ fast charging)
- 1 x USB Type‑C® port on the back panel (USB 3.2 Gen 2)
- 5 x USB 3.2 Gen 2 Type‑A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports via internal USB headers
Internal I/O Connectors
- 1 x 24‑pin ATX main power connector
- 2 x 8‑pin ATX 12V power connectors
- 1 x PCIe power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x SATA 6 Gb/s connectors
- 4 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type‑C® header (USB 3.2 Gen 2x2)
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x HDMI port (Note)
- 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI V2 module only)
- 2 x temperature sensor headers
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x HDMI port (Note)
- 1 x reset button
- 1 x power button
- 1 x Clear CMOS button
- 1 x Q‑Flash Plus button
- 5 x USB 3.2 Gen 2 Type‑A ports (red)
- 2 x USB Type‑C® ports with USB 3.2 Gen 2 support
- 2 x USB4® USB Type‑C® ports (DisplayPort (Note))
- 1 x RJ‑45 LAN port
- 3 x USB 3.2 Gen 1 ports
- 2 x antenna connectors (2T2R)
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
I/O Controller
| Item | Details |
|---|---|
| Controller | iTE® I/O Controller Chip |
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control*
- Noise detection
* Support for fan/pump speed control depends on the installed fan/pump.
BIOS
- 1 x 512 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q‑Flash
- Support for Q‑Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64‑bit
Form Factor
| Item | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
