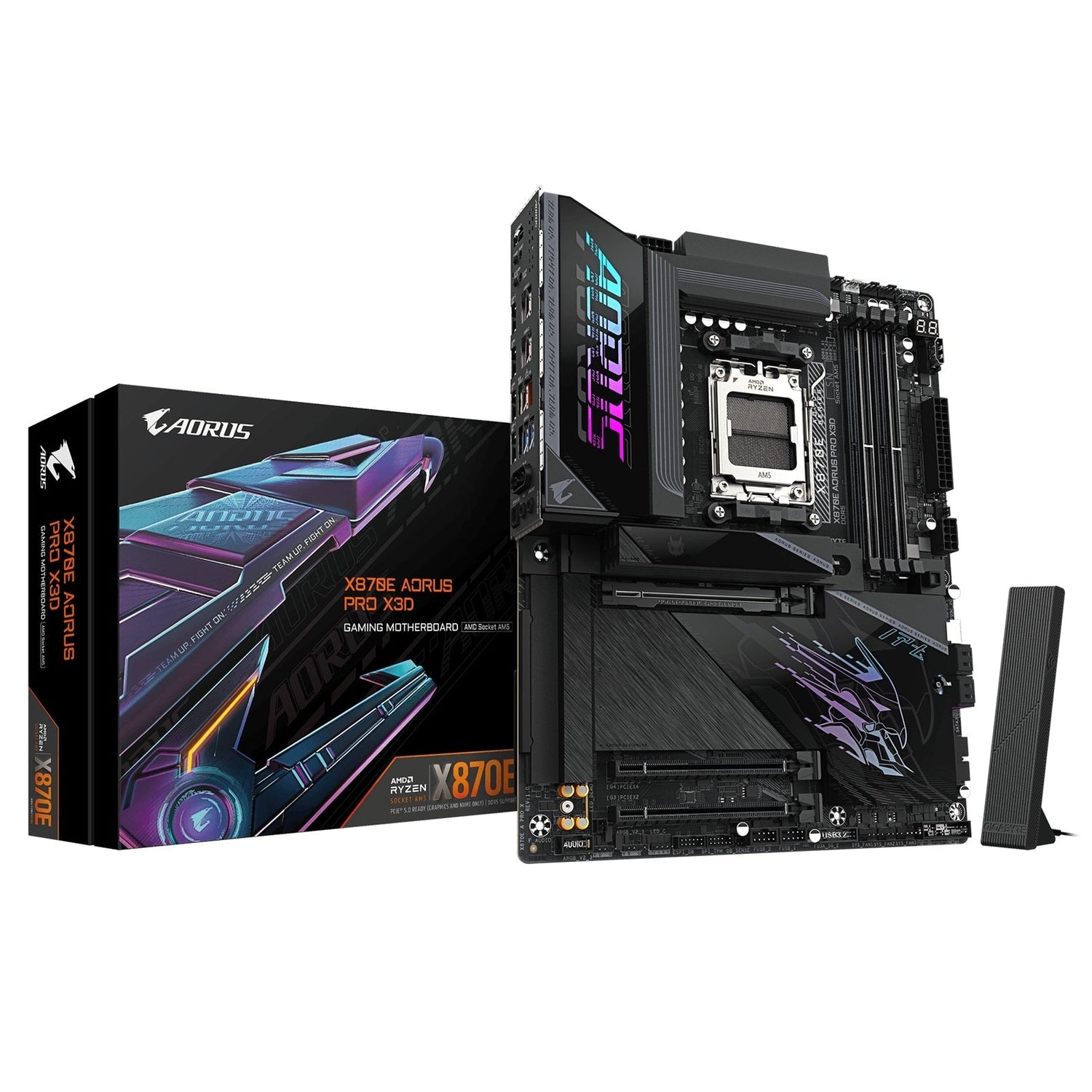

Gigabyte X870E AORUS PRO X3D AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

X870E AORUS PRO X3D Motherboard

Key Features

• X3D Turbo Mode 2.0
• AIDDR5 OC up to 9000 MT/s

• Designed for incredible X3D performance

• DriverBIOS Convenience

• Wi-Fi driver pre-install

• Power-On & easy network launch

• AMD Socket AM5 Support

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors

• AMD Ryzen™ 7000 Series Processors

• Robust Power Design

• Digital twin 18+2+2 phases VRM solution

• High-Speed DDR5 Memory

• Dual Channel DDR5

• 4 x DIMM with AMD EXPO™ support

• M.2 Design & Cooling

• M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD

• M.2 EZ-Latch Click & Plus: quick-release, screwless design for M.2 slots and heatsinks

• User-Friendly Wi-Fi & BIOS

• WIFI EZ-Plug: quick, easy antenna installation

• Friendly UI: multi-theme, AIO fan control, and Q-Flash auto scan in BIOS and software

• Ultra-Fast Storage

• 4 x M.2 slots, including PCIe 5.0 x4

• Enhanced Thermal & Stability

• PCB thermal plate with 14% thermal improvement and reinforced stability

• Efficient thermal design with VRM Thermal Armor Advanced, M.2 Thermal Guard L & M.2 Thermal Guard Ext

• High-Speed Networking

• 5GbE LAN

• Wi-Fi 7 with directional ultra-high gain antenna

• Extended Connectivity

• HDMI
• Dual USB4 Type-C with DP-Alt

• Front QC-USB 65W

• Reinforced Graphics Slot

• PCIe UD Slot X: PCIe 5.0 x16 with 10x strength for graphics card

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage

RAID Support
- NVMe SSDs: RAID 0, 1, 5, 10
- SATA devices: RAID 0, 1, 10

USB

CPU + ASMedia USB4® Controller
- 2 x USB4® Type-C® ports on the back panel

CPU
- 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2)

Chipset + USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports (via internal headers)

Chipset
- 1 x USB Type-C® internal header with USB 3.2 Gen 2x2 support (up to 65W PD 3.0/QC 4+ fast charging)
- 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2)
- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports (via internal headers)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x PCIe power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header (USB 3.2 Gen 2x2)
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x HDMI port (Note)
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 only)
• 2 x temperature sensor headers
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x HDMI port (Note)
• 1 x reset button
• 1 x power button
• 1 x Clear CMOS button
• 1 x Q-Flash Plus button
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB Type-C® ports with USB 3.2 Gen 2 support
• 2 x USB4® Type-C® ports (DisplayPort support (Note))
• 1 x RJ-45 port
• 3 x USB 3.2 Gen 1 ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control*
• Noise detection

* Fan/pump speed control support depends on the installed fan/pump.

BIOS

• 1 x 512 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support Smart Backup

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit

Form Factor
