Gigabyte H810M S2H Intel 1851 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

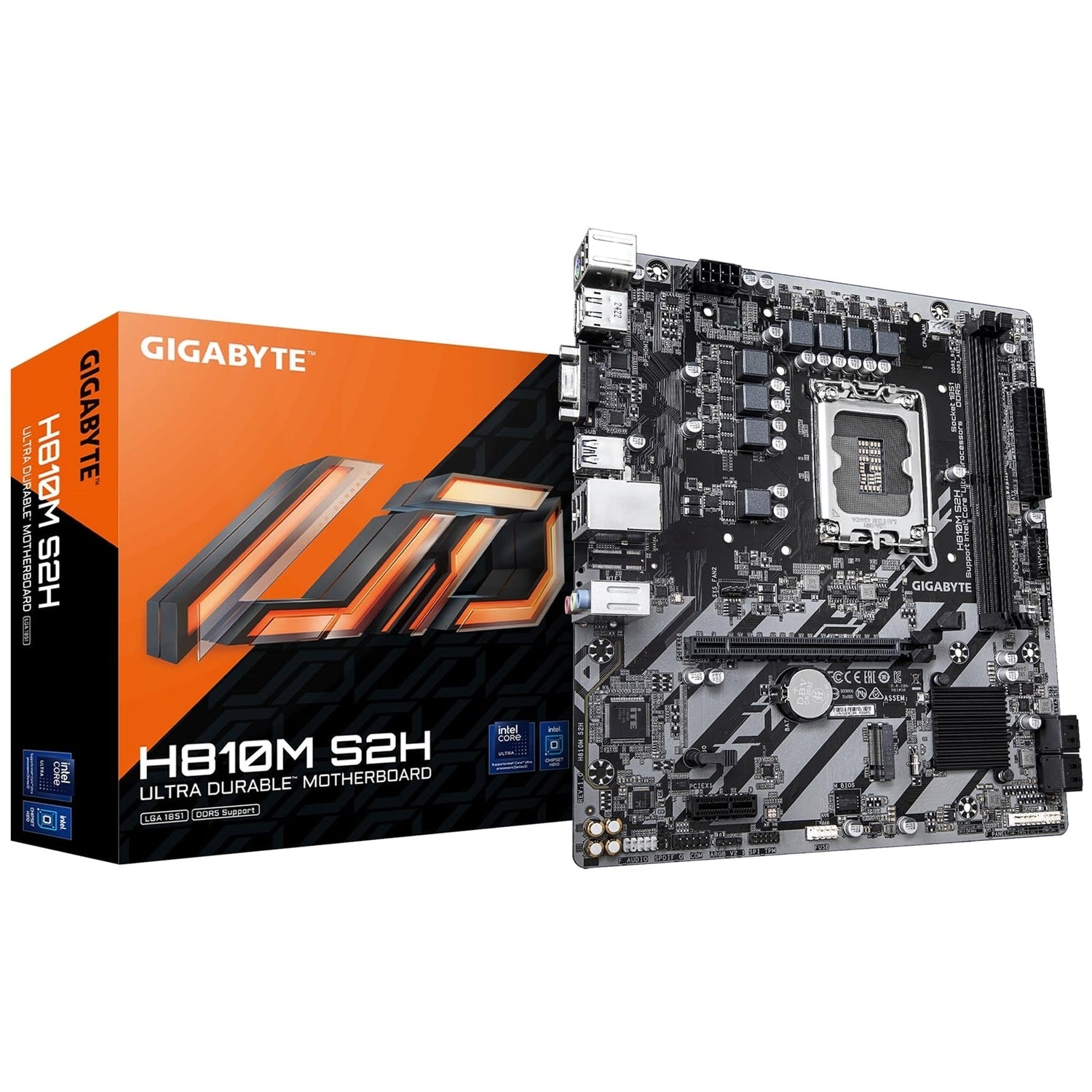

GIGABYTE H810M S2H Micro ATX Motherboard

The GIGABYTE H810M S2H motherboard is designed to deliver durable performance, efficient power delivery, and user-friendly features for Intel Core Ultra processors (Series 2). With next-generation connectivity, intuitive BIOS, and robust cooling controls, it provides a solid platform for modern PC builds.

Key Features

Powerful Intel Platform Support

• CPU Socket: LGA1851
• Supports: Intel Core Ultra Processors (Series 2)
• L3 cache varies by CPU model (see GIGABYTE website for latest CPU support list).

Hybrid 4+1+2 Phases VRM Solution

• Hybrid VRM design with high-quality components
• Enhanced system performance and hardware scalability

Smart Fan 6 Cooling

• Cool, quiet, and customizable cooling control
• Superior cooling performance and whisper-quiet operation

Next Generation Storage & Expansion

• PCIe 4.0 x16 slot for high-performance graphics or NVMe SSD
• PCIe 4.0 x4 M.2 connector for fast storage
• SATA RAID support: RAID 0, 1, 5, 10

Fast Networking

• Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
• Integrated bandwidth management application for improved latency and responsiveness in crowded LAN environments

Extended Display Connectivity

• DisplayPort
• HDMI
• D-Sub
• Support for up to triple-display output (actual support may vary by CPU)

Hi-Fi Audio

• Realtek High Definition Audio CODEC
• High-end audio capacitors
• Audio Noise Guard
• Configurable 2/4/5.1/7.1-channel audio via software
• S/PDIF Out support

EZ-Latch & Easy Assembly

• PCIe EZ-Latch: Quick-release design for the PCIe x16 slot, making graphics card removal easier
• EZ-Latch designs simplifying the assembly process

EZ Debug Zone

• Centralized debug LEDs and control buttons
• Organized troubleshooting for easier system building

User-Friendly BIOS & Software

• UC BIOS: Restructured, user-centered interface with intuitive performance adjustments
• Q-FLASH Auto Scan: Automatically scans USB flash drives for BIOS files
• Friendly UI with multi-theme support and Q-Flash Auto Scan in BIOS and software
• Support for GIGABYTE Control Center (GCC)
• Support for Smart Backup

Durable Performance

• GIGABYTE Ultra Durable motherboard design
• Built with optimal components inside and out for long-term stability and performance

Specifications

Processor & Chipset

Memory

Onboard Graphics

Integrated Graphics Processor – Intel HD Graphics support (actual support may vary by CPU).

Audio

LAN

Expansion Slots

• The PCIEX16 slot can only support either a graphics card or an NVMe SSD.

Storage

USB Connectivity

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C header (USB 3.2 Gen 1 support)
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x PS/2 keyboard/mouse combo port
• 1 x HDMI port (support may vary by CPU)
• 1 x DisplayPort (support may vary by CPU)
• 1 x D-Sub port
• 1 x USB 3.2 Gen 1 port
• 5 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

Actual graphics support may vary depending on the CPU.

I/O Controller & Monitoring

* Fan speed control support depends on the fan installed.

BIOS

Unique Features & Software

• Support for GIGABYTE Control Center (GCC)
• Available applications and functions vary by motherboard model and specifications
• Support for Q-Flash
• Support for Smart Backup
• Bundled Software:
• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

The Intel NPU driver is only supported on Windows 11.

Form Factor
