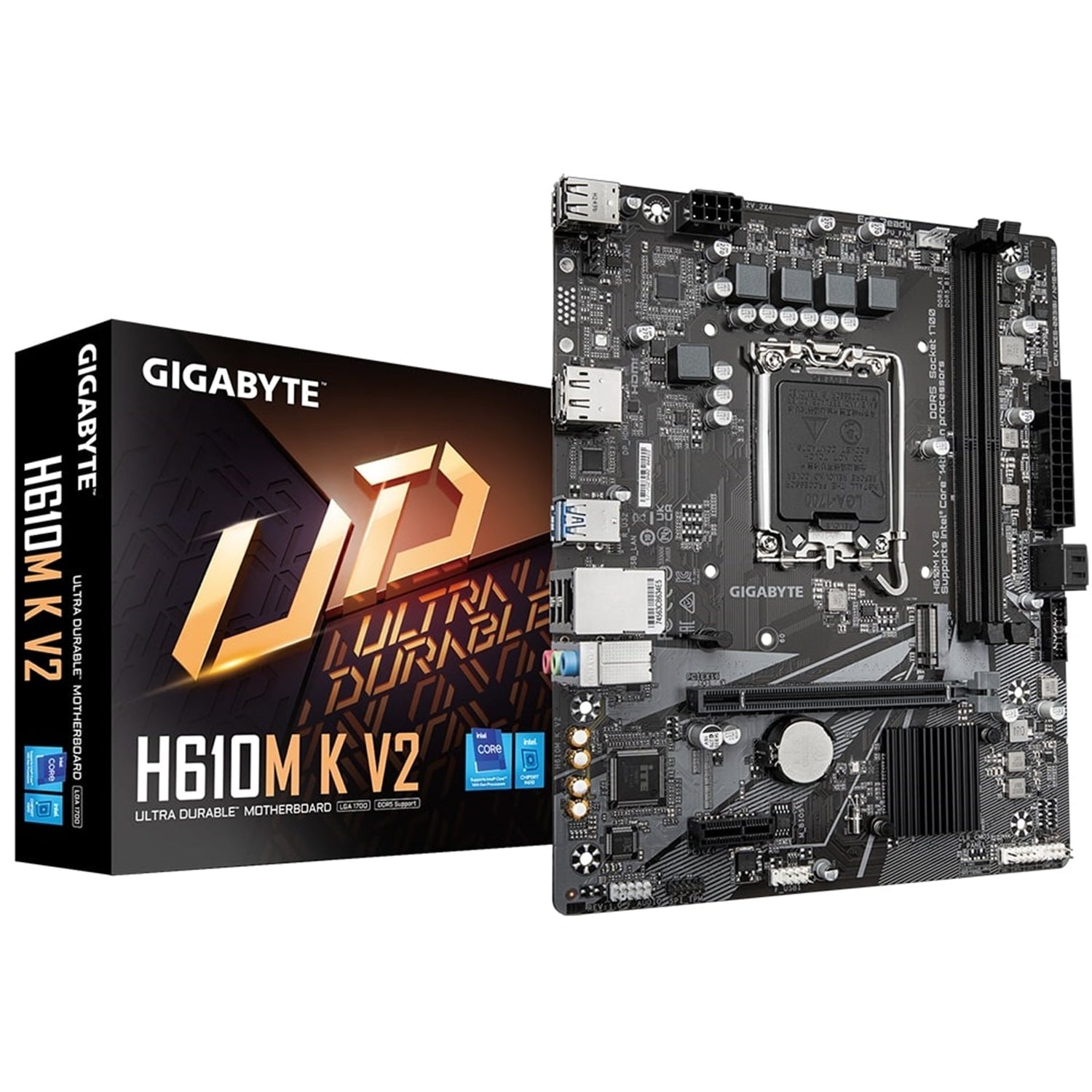

Gigabyte H610M K V2 DDR5 Anti-Sulfur Resistor Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

GIGABYTE H610 Micro ATX Motherboard (LGA1700, DDR5)

Experience a balanced platform for Intel 14th, 13th, and 12th Gen processors with the GIGABYTE H610 motherboard, featuring PCIe 4.0 design, DDR5 memory support, robust power delivery, and comprehensive connectivity in a compact micro ATX form factor.

Key Features

• Supports Intel Processors
• Intel LGA1700 socket

• Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors

• Extreme DDR5 Memory Performance

• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
• Up to 128 GB system memory (64 GB per DIMM)
• DDR5 architecture with:
  • Unlocked Native DDR5 Voltage
  • Xtreme Memory Routing
• XMP 3.0 and Extreme Memory Profile (XMP) support
• Exclusive DDR5 tuning capability with user-friendly UI

• Brings 50% more bandwidth compared to previous-generation memory

• Graphics Output

• Integrated Intel HD Graphics support (CPU dependent)
• 1 x HDMI 2.1 port (4096x2160 @ 60 Hz, HDCP 2.3)

• 1 x DisplayPort 1.2 (4096x2304 @ 60 Hz, HDCP 2.3)

• Storage & Expansion

• 1 x NVMe PCIe 3.0 x4/x2 M.2 connector (Socket 3, M key, type 2280/2260)
• 2 x SATA 6 Gb/s connectors
• 1 x PCIe 4.0 x16 slot (from CPU)

• 1 x PCIe 3.0 x1 slot (from chipset)

• Networking

• Realtek GbE LAN chip

• GbE LAN with bandwidth management software to help improve network latency and maintain low ping times

• Cooling & Monitoring – Smart Fan 6

• Multiple temperature sensors
• Hybrid fan headers with FAN STOP
• Voltage, temperature, and fan speed detection
• Water cooling flow rate detection

• Fan fail warning and fan speed control (fan dependent)

• Audio

• Realtek High Definition Audio codec
• 2/4/5.1/7.1-channel audio
• High quality audio capacitors and Audio Noise Guard

• Configurable jack functionality via audio software

• Ultra Durable & Power Delivery

• Solid Pin ATX 12V 8-pin power connector
• Larger contact area and more metal content for higher power and heat tolerance
• Designed for ultra durability and longer lifespan

• Anti-Sulfur Resistors Design

• Software & Utilities

• GIGABYTE APP Center (apps may vary by model), including:
  • @BIOS
  • EasyTune
  • Smart Backup
  • System Information Viewer
• LAN bandwidth management software
• Norton Internet Security (OEM version)

• Support for Q-Flash

• Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Specifications

CPU

Refer to the official CPU Support List for detailed compatibility.

Chipset

Memory

CPU and memory configuration may affect supported memory type, speed, and DRAM count. Refer to the Memory Support List on GIGABYTE’s website.

Onboard Graphics

Audio

LAN

Expansion Slots

Storage Interface

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6 Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header
• For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 modules only
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x HDMI port
• 1 x DisplayPort
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (support depends on installed fan)

BIOS

• 1 x 128 Mbit flash
• AMI UEFI BIOS (licensed)
• Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE APP Center*
• @BIOS
• EasyTune
• Smart Backup
• System Information Viewer
• Support for Q-Flash

*Available apps and functions may vary by motherboard model and specifications.

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

With PCIe 4.0 design, DDR5 support, Smart Fan 6, GbE LAN with bandwidth management, and Ultra Durable components including solid pin power connectors and Anti-Sulfur Resistors, this GIGABYTE H610 motherboard provides a stable, feature-rich foundation for Intel LGA1700 systems.
