Gigabyte H610I Intel 1700 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPort / 1x HDMI Port

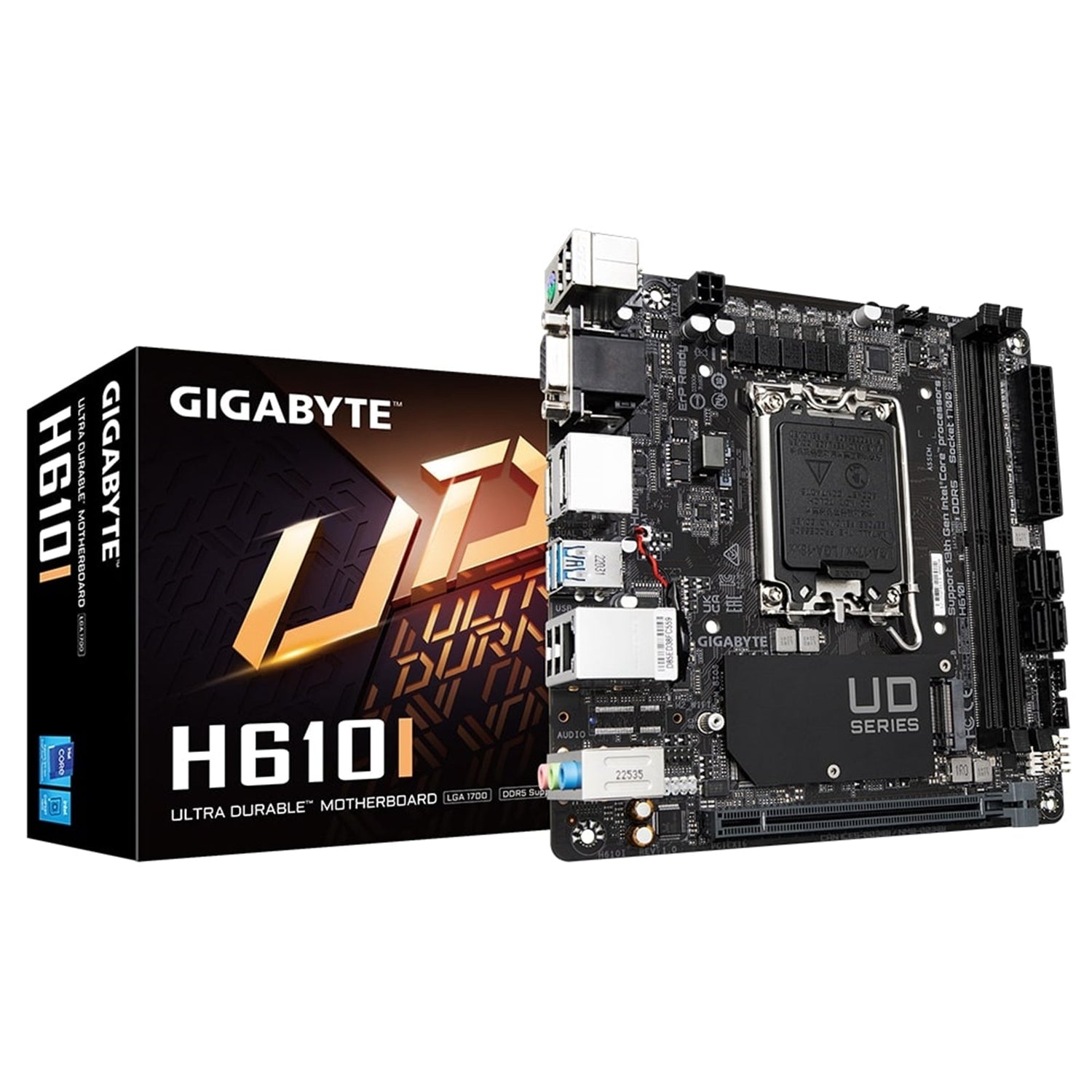

GIGABYTE H610I (Rev. 1.0) Mini-ITX Motherboard

Compact and feature-rich, the GIGABYTE H610I (Rev. 1.0) is designed for Intel® 14th, 13th, and 12th Gen processors, delivering reliable performance, modern connectivity, and flexible expansion in a Mini-ITX form factor.

Key Features

• Supports Intel® Core™ 14th / 13th / 12th Generation processors
• Dual Channel DDR5 memory, 2 DIMM slots
• 4+1+1 Hybrid Digital VRM Design
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• NVMe PCIe 3.0 x4 M.2 storage support
• High Quality Audio Capacitors with Audio Noise Guard
• Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
• GIGABYTE APP Center for simple, centralized software control
• Anti-Sulfur Resistors Design

Specifications

CPU

* Please refer to the CPU Support List for more information.

Chipset

Memory

Supported Speeds

• 13th Gen Intel® Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s
• 13th Gen Intel® Core™ i5/i3 and 12th Gen Intel® Core™, Pentium® Gold, Celeron®: DDR5 4800/4400 MT/s

Module Support

• ECC Un-buffered DIMM 1Rx8 / 2Rx8 (operates in non-ECC mode)
• Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
• Extreme Memory Profile (XMP) support

(Please refer to the Memory Support List for more information.)

BIOS

Graphics

Integrated Graphics Processor (Intel® HD Graphics support, CPU-dependent)

• Supports up to 3 displays simultaneously
• Graphics specifications may vary depending on CPU support.

Audio

* Audio jack functionality can be reconfigured in the audio software. For 7.1-channel output, configure settings in the audio software.

LAN

Wireless LAN

Expansion Slots

Storage

RAID

USB

Chipset

• 4 x USB 3.2 Gen 1 ports
• 2 x rear panel
• 2 x via internal header
• 4 x USB 2.0/1.1 ports (rear panel)

Chipset + USB 2.0 Hub

• 2 x USB 2.0/1.1 ports via internal header

Internal Connectors

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Rear Panel I/O

• 1 x PS/2 keyboard/mouse port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x D-Sub port
• 2 x DisplayPorts
• 1 x HDMI port
• 1 x RJ-45 LAN port
• 3 x audio jacks

Form Factor

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit
