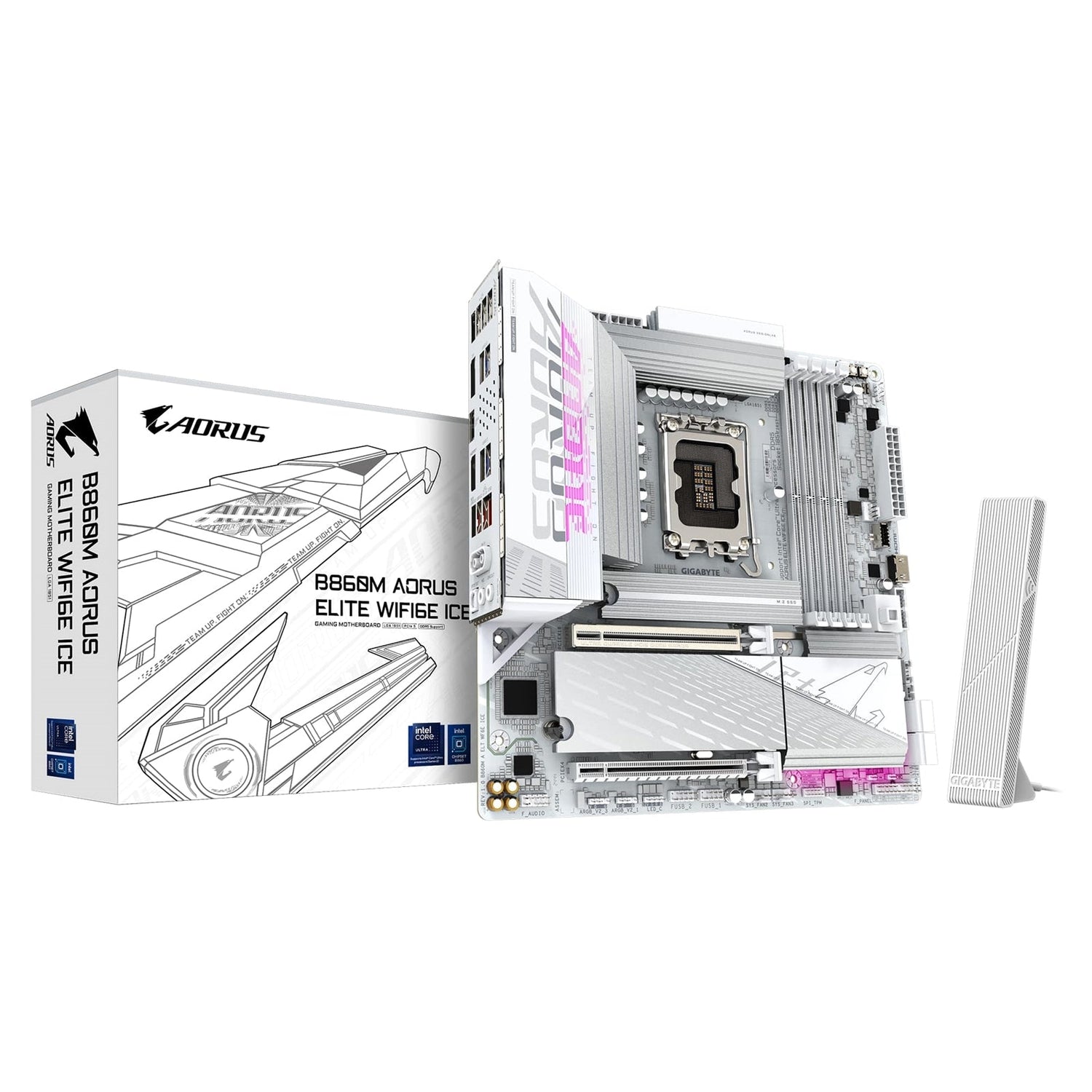

Gigabyte B860M AORUS ELITE WIFI6E ICE Intel 1851 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI / 1x USB-C (USB4)

GIGABYTE B860 Micro ATX Motherboard for Intel® Core™ Ultra (Series 2)

Designed for next-gen Intel® Core™ Ultra processors (Series 2), this GIGABYTE B860 micro ATX motherboard combines advanced power delivery, high-speed DDR5 memory support, ultra-fast storage, and rich connectivity in a compact form factor.

Key Features

• Processor Support
• Supports Intel® Core™ Ultra processors (Series 2) on LGA1851 socket

• Digital twin 12+1+2 phases VRM solution

• High-Performance Memory

• Dual Channel DDR5 with 4 DIMM slots (up to 256 GB)
• Supports DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s
• D5 Bionic Corsa design for infinite memory performance
• Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (operating in non-ECC mode)
• Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

• XMP memory module support

• AI & User Experience

• AI Perfdrive: Optimized and customizable BIOS preset profiles

• Friendly UI: Multi-theme BIOS, AIO fan control, and Q-Flash Auto Scan in BIOS and software

• Tool-Less Assembly

• EZ-Latch Plus: PCIe and M.2 slots with quick-release, screwless design

• EZ-Latch Click: M.2 heatsinks with screwless design

• Display & Sensor Integration

• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

• Supports up to quad-display simultaneously

• Ultra-Fast Storage

• 3 × M.2 slots, including:
  • 1 × PCIe 5.0 x4 (CPU)
  • 2 × PCIe 4.0 x4/x2 (Chipset)
• 4 × SATA 6Gb/s connectors

• RAID 0, 1, 5, 10 support for SATA storage

• Efficient Thermal Design

• VRM Thermal Armor Advanced

• M.2 Thermal Guard Ext.

• High-Speed Networking

• Realtek® 2.5GbE LAN

• Wi-Fi 6E with directional ultra-high gain antenna

• Extended Connectivity

• USB4 Type-C with DP-Alt
• HDMI and DisplayPort

• Rich USB 3.2 Gen 2/Gen 1 and USB 2.0 options

• Form Factor

• Micro ATX, 24.4 cm x 24.4 cm

Specifications

CPU

Chipset

Memory

Onboard Graphics

Integrated Graphics Processor – Intel® HD Graphics support:

• Support for up to quad-display at the same time
• Graphics specifications may vary depending on CPU support

Audio

*7.1-channel audio configuration via audio software.

LAN

Wireless Communication

Actual data rates may vary depending on environment and equipment.

Expansion Slots

Storage Interface

USB Connectivity

CPU:

• 1 × USB4® USB Type-C® port on the back panel

Chipset:

• 1 × USB Type-C® port with USB 3.2 Gen 2 support (internal header)
• 2 × USB 3.2 Gen 2 Type-A ports (red, back panel)
• 2 × USB 3.2 Gen 1 ports (internal header)

Chipset + USB 3.2 Gen 1 Hub:

• 4 × USB 3.2 Gen 1 ports (back panel)

Chipset + 2 × USB 2.0 Hubs:

• 8 × USB 2.0/1.1 ports (4 × back panel, 4 × via internal headers)

Internal I/O Connectors

• 1 × 24-pin ATX main power connector
• 2 × 8-pin ATX 12V power connectors
• 1 × CPU fan header
• 1 × CPU fan/water cooling pump header
• 3 × system fan headers
• 1 × system fan/water cooling pump header
• 3 × addressable RGB Gen2 LED strip headers
• 1 × RGB LED strip header
• 3 × M.2 Socket 3 connectors
• 4 × SATA 6Gb/s connectors
• 1 × front panel header
• 1 × front panel audio header
• 1 × USB Type-C® header with USB 3.2 Gen 2 support
• 1 × USB 3.2 Gen 1 header
• 2 × USB 2.0/1.1 headers
• 2 × Thunderbolt™ add-in card connectors
• 1 × Trusted Platform Module header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)
• 1 × HDMI port*
• 1 × power button
• 1 × reset button
• 1 × Q-Flash Plus button
• 1 × reset jumper
• 1 × Clear CMOS jumper

*Actual support may vary by CPU.

Back Panel Connectors

• 4 × USB 2.0/1.1 ports
• 4 × USB 3.2 Gen 1 ports
• 1 × DisplayPort*
• 1 × USB4® USB Type-C® port (DisplayPort*)
• 1 × HDMI port*
• 1 × RJ-45 (2.5GbE LAN) port
• 2 × USB 3.2 Gen 2 Type-A ports (red)
• 2 × antenna connectors (2T2R)
• 2 × audio jacks
• 1 × optical S/PDIF Out connector

*Actual support may vary by CPU.

I/O Controller & Monitoring

*Fan/pump speed control support depends on installed fan/pump.

BIOS

• 1 × 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications and functions vary by model and specifications
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

Form Factor

• Micro ATX Form Factor
• Dimensions: 24.4 cm × 24.4 cm
