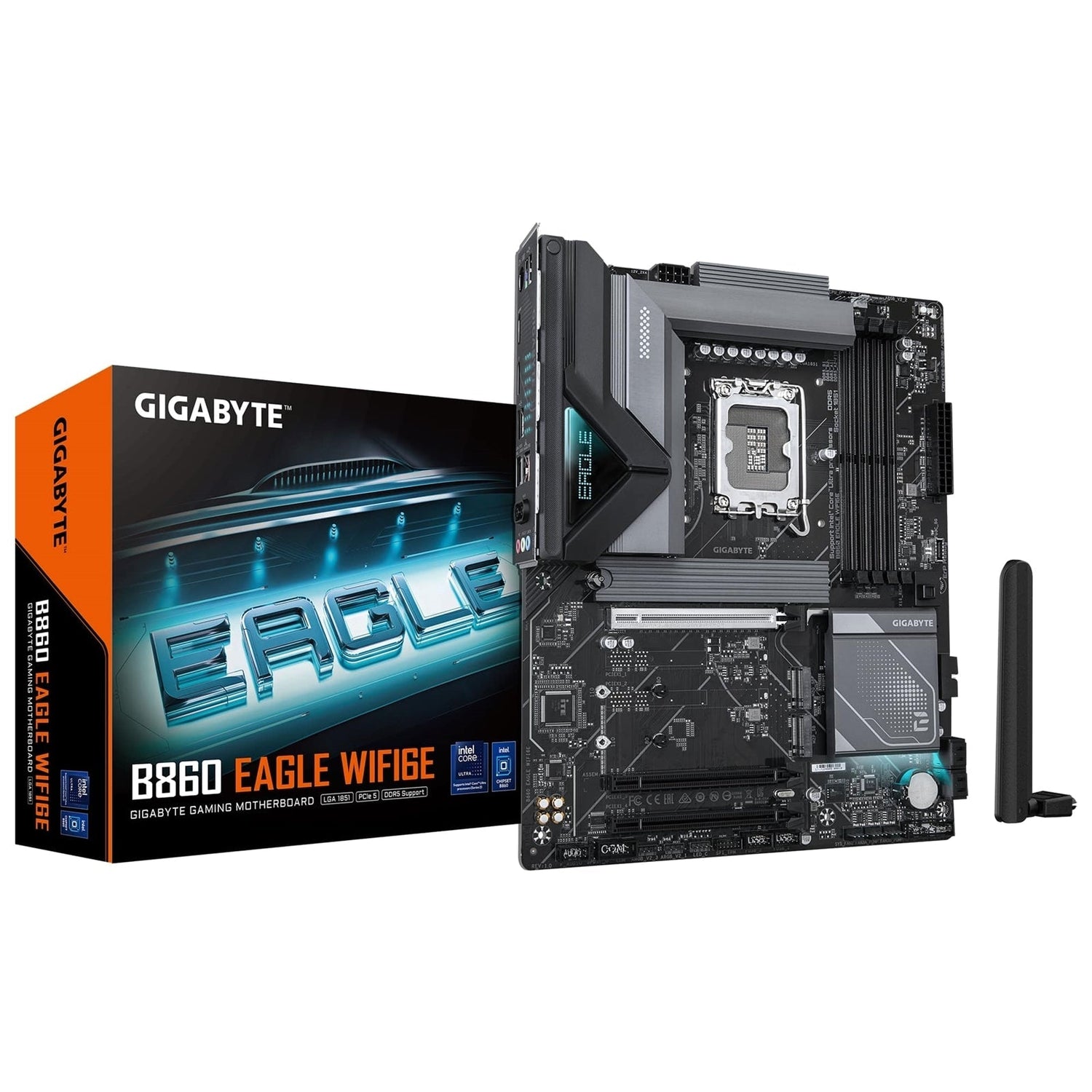

Gigabyte B860 EAGLE WIFI6E Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

Gigabyte B860 EAGLE WIFI6E Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

$280.00

GIGABYTE B860 ATX Motherboard for Intel® Core™ Ultra Processors (Series 2)

Optimize your next build with a feature-rich ATX motherboard designed for Intel® Core™ Ultra processors (Series 2). With advanced power delivery, high-speed DDR5 memory support, PCIe 5.0 storage, and next-gen connectivity, this board delivers a solid foundation for performance-focused systems.

Key Features

  • CPU Support
  • Supports Intel® Core™ Ultra processors (Series 2) on LGA1851 socket

  • Digital twin 12+1+2 phases VRM solution

  • Memory & Performance

  • Dual Channel DDR5 with 4 x DIMM slots
  • Supports up to 256 GB system memory
  • D5 Bionic Corsa for enhanced memory performance
  • Supports DDR5 9066(O.C) down to 5600 MT/s
  • XMP memory module support

  • Supports ECC Un-buffered DIMM (operates in non-ECC mode) and non-ECC Un-buffered DIMM

  • AI & BIOS Enhancements

  • AI Perfdrive: Provides optimal, customized BIOS preset profiles

  • Friendly UI in BIOS and software: Multi-Theme, AIO Fan Control, Q-Flash Auto Scan

  • Storage & Expansion

  • Ultra-Fast Storage: 3 x M.2 slots (including 1 x PCIe 5.0 x4)
  • 4 x SATA 6Gb/s connectors
  • RAID 0/1/5/10 support for SATA devices

  • PCIe expansion with PCIe 5.0 x16 and PCIe 4.0 x1 slots

  • Thermal Design

  • VRM Thermal Armor Advanced
  • M.2 Thermal Guard

  • Multiple fan and water pump headers

  • Networking & Wireless

  • Fast Networking: Realtek® 2.5GbE LAN
  • Wi-Fi 6E and Bluetooth 5.3 (module varies by PCB revision)

  • WIFI EZ-Plug for quick and easy Wi-Fi antenna installation

  • Connectivity & Ease of Use

  • Extended Connectivity: HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C® and more
  • EZ-Latch Plus: PCIe and M.2 slots with quick-release, screwless design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Q-Flash & Q-Flash Plus for easy BIOS updates

  • Smart Backup support

  • Audio

  • Realtek® HD Audio with 2/4/5.1/7.1-channel support

  • S/PDIF Out support

  • Form Factor

  • ATX, 30.5cm x 24.4cm

Specifications

CPU

Item Details
Socket LGA1851
Support Intel® Core™ Ultra Processors (Series 2)
L3 Cache Varies with CPU
Note See GIGABYTE’s website for latest CPU support list

Chipset

Item Details
Chipset Intel® B860 Express

Memory

Feature Details
Type DDR5
Speed Support 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s
Slots 4 x DDR5 DIMM sockets
Max Capacity Up to 256 GB (64 GB per DIMM)
Channel Architecture Dual channel
ECC Support ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Non-ECC Support Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP Support Yes
Note CPU and memory configuration may affect supported types, speeds, and DRAM count; see GIGABYTE website

Onboard Graphics

Output Specification
HDMI Max resolution 4096x2160@60 Hz; supports HDMI 2.1 and HDCP 2.3
DisplayPort Max resolution 3840x2160@144 Hz; supports DisplayPort 2.1
Note Graphics specifications may vary depending on CPU; actual support may vary by CPU
GPU Integrated Graphics Processor – Intel® HD Graphics support

Audio

Item Details
Codec Realtek® Audio CODEC
Channels 2/4/5.1/7.1-channel
S/PDIF Out Supported
Note 7.1-channel configurable via audio software; jacks configurable in SW

LAN

Item Details
Controller Realtek® 2.5GbE LAN chip
Speeds 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

PCB Revision Module Features
PCB rev. 1.0 Intel® Wi-Fi 6E AX211 Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160MHz support
PCB rev. 1.1 Realtek® Wi-Fi 6E RTL8852CE Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160MHz support
Note Actual data rate may vary depending on environment and equipment

Expansion Slots

Source Slot Standard Lanes Notes
CPU 1 x PCI Express x16 (PCIEX16) PCIe 5.0 x16 Supports a graphics card or NVMe SSD only. If only one graphics card is used, install here.
Chipset 2 x PCI Express x16 (PCIEX1_3/4, running x1) PCIe 4.0 x1 –

Storage

Source Connector Type / Support
CPU 1 x M.2 (M2A_CPU) Socket 3, M key, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 SSD support
Chipset 1 x M.2 (M2Q_SB) Socket 3, M key, type 25110/22110/2580/2280, PCIe 4.0 x4/x2 SSD support
Chipset 1 x M.2 (M2P_SB) Socket 3, M key, type 25110/22110/2580/2280, PCIe 4.0 x4/x2 SSD support
Chipset 4 x SATA 6Gb/s RAID 0, 1, 5, 10 support for SATA storage devices

USB

Source Port/Header Standard Location
Chipset 1 x USB Type-C® USB 3.2 Gen 2x2 Back panel
Chipset 1 x USB Type-C® header USB 3.2 Gen 1 Internal
Chipset 1 x USB 3.2 Gen 2 Type-A (red) USB 3.2 Gen 2 Back panel
Chipset 2 x USB 3.2 Gen 1 USB 3.2 Gen 1 Internal headers
Chipset 4 x USB 2.0/1.1 USB 2.0/1.1 Back panel
Chipset + Hub 4 x USB 2.0/1.1 USB 2.0/1.1 Internal headers

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 2 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C® header (USB 3.2 Gen 1 support)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI port (support may vary by CPU)
  • 1 x DisplayPort (support may vary by CPU)
  • 1 x USB Type-C® port (USB 3.2 Gen 2x2)
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 2.0/1.1 ports
  • 2 x antenna connectors (2T2R)
  • 1 x RJ-45 LAN port
  • 3 x audio jacks

I/O Controller

  • iTE® I/O Controller Chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control (support depends on installed fan/pump)

BIOS

  • 1 x 256 Mbit flash
  • AMI UEFI BIOS (licensed)
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for GIGABYTE Control Center (GCC)
  • Available applications and functions vary by model and specifications
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup

Bundled Software

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software

Operating System Support

  • Windows 11 64-bit
  • Windows 10 64-bit
  • Note: Intel® NPU driver is only supported on Windows 11

Form Factor

  • ATX Form Factor
  • Dimensions: 30.5cm x 24.4cm
