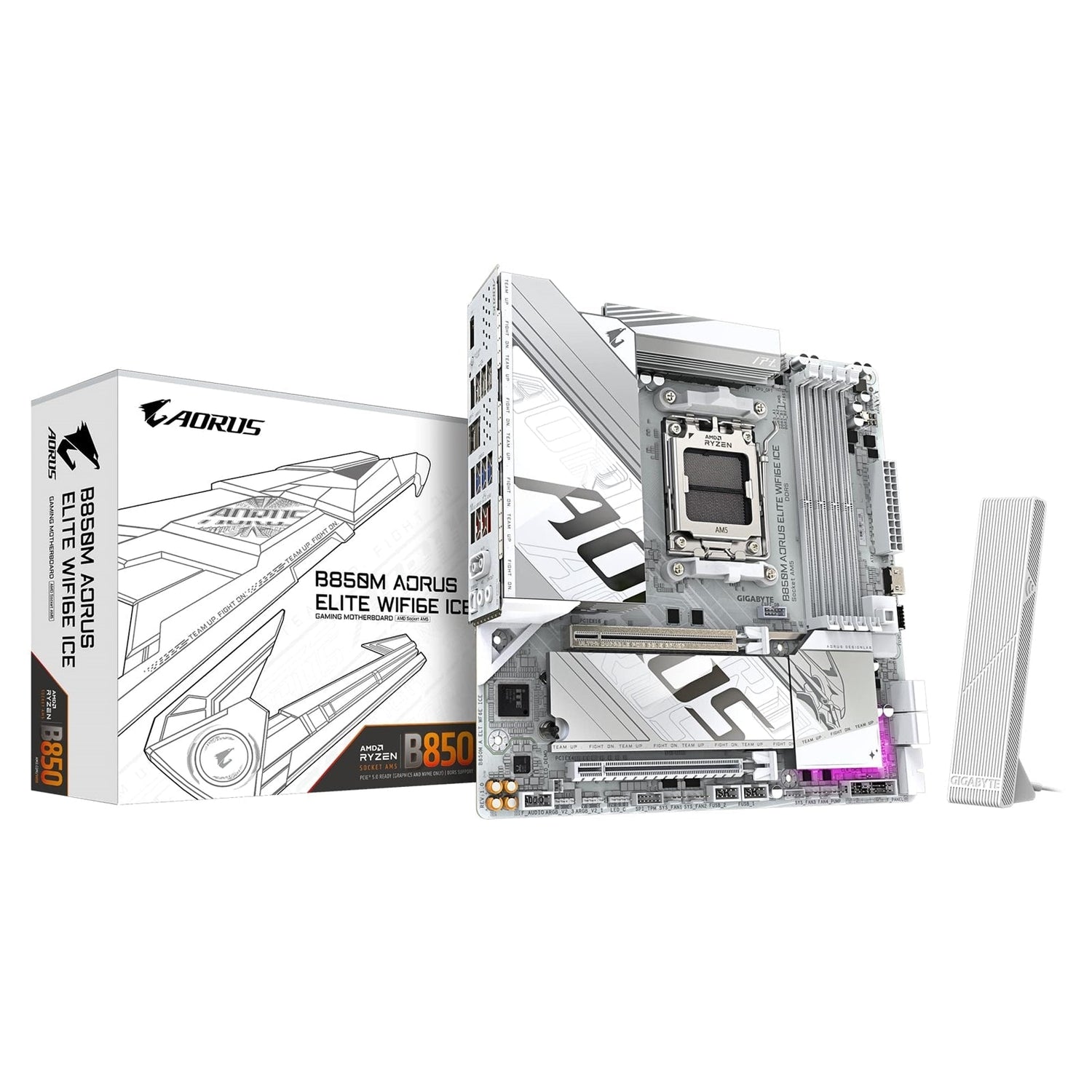

Gigabyte B850M AORUS ELITE WIFI6E ICE AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

B850M AORUS ELITE WIFI6E ICE Motherboard

Key Features

• X3D Turbo Mode – Unleash a new era of gaming performance
• AMD Socket AM5 – Supports AMD Ryzen 9000 / 8000 / 7000 Series processors
• DDR5 Overclocking – DDR5 OC support up to 8200 MT/s
• Digital Twin 12+2+2 Phases VRM Solution for stable power delivery
• Dual Channel DDR5 – 4 x DIMMs with AMD EXPO memory module support
• WIFI EZ-Plug – Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus – PCIe and M.2 slots with quick release & screwless design
• EZ-Latch Click – M.2 heatsinks with screwless design
• Sensor Panel Link – Onboard video port for hassle-free in-chassis panel setup
• Friendly UI – Multi-theme, AIO fan control, and Q-Flash auto scan in BIOS and software
• Ultra-Fast Storage – 2 x M.2 slots, including PCIe 5.0 x4
• Efficient Thermal Design – VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking – 2.5GbE LAN & Wi-Fi 6E with directional ultra-high gain antenna
• Extended Connectivity – HDMI and DisplayPort
• PCIe UD Slot – PCIe 5.0 x16 slot with 10x strength for graphics card and improved heat dissipation

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage Interface

USB

CPU:

• 1 x USB Type-C port on back panel, USB 3.2 Gen 2
• 2 x USB 3.2 Gen 2 Type-A ports (red) on back panel

CPU + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on back panel

Chipset + USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports on back panel

Chipset:

• 1 x USB Type-C port with USB 3.2 Gen 2x2 support (via internal USB header)
• 3 x USB 3.2 Gen 1 ports (1 x back panel, 2 x via internal header)
• 4 x USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 only)
• 1 x HDMI port (Note: actual support may vary by CPU)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x DisplayPort (Note: actual support may vary by CPU)
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1 ports
• 5 x USB 3.2 Gen 1 ports
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C port with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (fan/pump speed control support depends on installed fan/pump)

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications may vary by motherboard model
• Supported functions depend on motherboard specifications
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor
