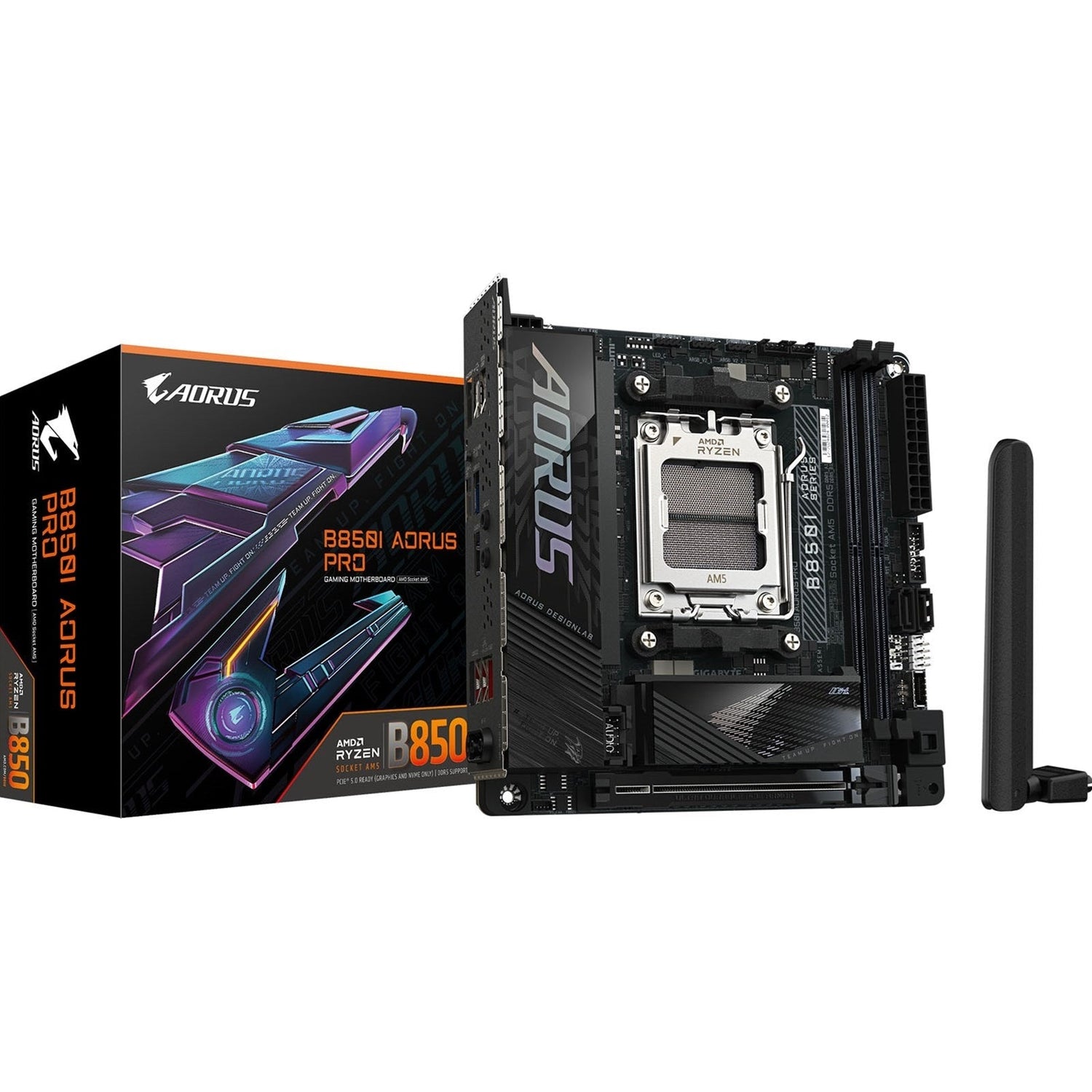

Gigabyte B850I AORUS PRO AMD AM5 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 2x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 1x HDMI Port

GIGABYTE AMD B850 Mini‑ITX Motherboard with Wi‑Fi 7

Unlock powerful next‑generation performance for compact gaming and creator builds with this AMD B850 Mini‑ITX motherboard, engineered for AMD Ryzen™ 9000, 8000, and 7000 Series processors and ultra‑fast DDR5 memory.

Key Features

• X3D Turbo Mode
  Designed to unleash a new era of gaming performance.

• AMD Socket AM5

• Supports AMD Ryzen™ 9000 Series Processors
• Supports AMD Ryzen™ 8000 Series Processors

• Supports AMD Ryzen™ 7000 Series Processors

• AMD B850 Chipset

• High-Speed DDR5 Memory

• DDR5 OC support up to 8400 MT/s
• Dual Channel DDR5 with 4 DIMM slots

• Supports AMD EXPO™ and XMP memory modules

• Robust Power Design

• Digital twin 8+2+1 phases VRM solution

• Ultra-Fast Storage

• 1 x M.2 slot supporting PCIe 5.0 x4
• Additional PCIe 4.0 x4/x2 M.2 slot on rear

• RAID support for NVMe and SATA devices

• Fast Networking

• 2.5GbE LAN

• Wi‑Fi 7 with directional ultra-high gain antenna

• Advanced Connectivity

• HDMI video output
• USB 3.2 Gen 2 Type‑C® (rear and internal)

• Multiple USB 3.2 Gen 1 and USB 2.0/1.1 ports

• PCIe UD Slot

• PCIe 5.0 x16 slot with 10X strength for graphics card and better heat dissipation effect

• Efficient Thermal Design

• VRM Thermal Armor Advanced

• M.2 Thermal Guard Ext

• Easy Installation & Maintenance

• WIFI EZ-Plug for quick Wi‑Fi antenna installation
• EZ‑Latch Plus for PCIe and M.2 quick release & screwless design

• EZ‑Latch Click for screwless M.2 heatsinks

• User-Friendly Interface

• Multi-theme BIOS
• AIO Fan Control
• Q‑Flash Auto Scan in BIOS and software

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 1 x 8‑pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan / water cooling pump header
• 1 x system fan header
• 2 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x speaker header
• 1 x front panel audio header (from adapter card on rear panel)
• 1 x USB Type‑C® header (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Back Panel Connectors

• 1 x Q‑Flash Plus button
• 1 x HDMI port*
• 2 x antenna connectors (2T2R)
• 1 x USB Type‑C® port (USB 3.2 Gen 2)
• 2 x USB 3.2 Gen 2 Type‑A ports (red)
• 2 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ‑45 LAN port
• 2 x audio jacks

* Actual HDMI support may vary by CPU.

I/O Controller

• iTE® I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control*

* Fan speed control support depends on the installed fan.

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)*
• Support for Q‑Flash
• Support for Q‑Flash Plus
• Support for Smart Backup

* Available GCC applications and functions vary by motherboard model and specifications.

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64‑bit

Form Factor
