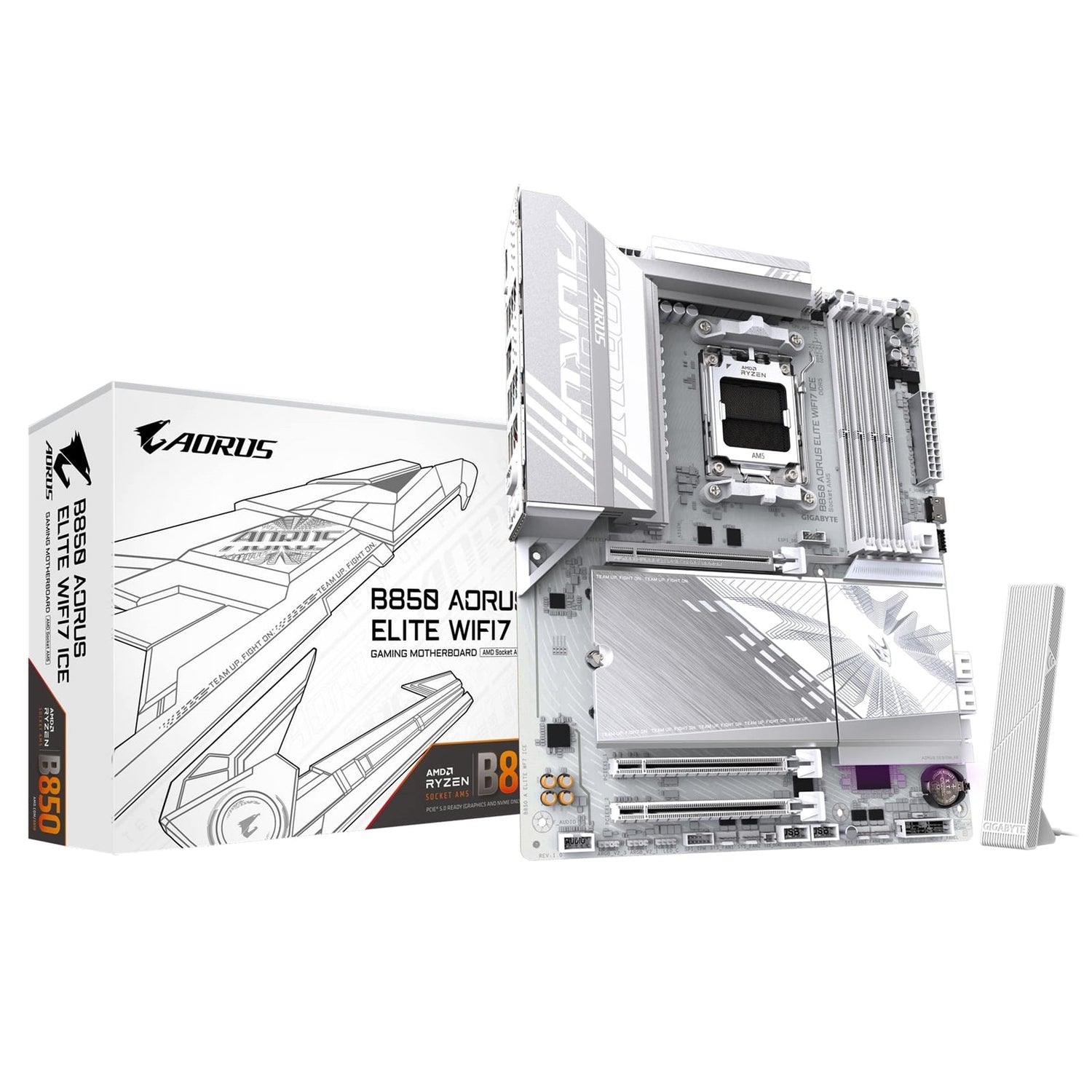

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 1x DisplayPort / 1x HDMI Port

GIGABYTE AMD B850 ATX Gaming Motherboard (Socket AM5)

Key Features

• X3D Turbo Mode
  Designed to unleash a new era of gaming performance.

• Next-Gen Memory Performance

• DDR5 overclocking support up to 8200 MT/s
• 4 x DDR5 DIMM slots, up to 256 GB total (64 GB per DIMM)
• Dual-channel architecture
• Support for AMD EXPO™ and XMP memory modules

• Support for non-ECC un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 modules

• AMD Socket AM5 Support
  Compatible with:

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors

• AMD Ryzen™ 7000 Series Processors

• Robust Power Design

• Digital twin 14+2+2 phases VRM solution

• Faster Storage Options

• 3 x M.2 slots, including PCIe 5.0 x4 support
• RAID 0, 1, 5, 10 for NVMe SSDs (RAID 5 on Ryzen™ 9000 only)

• RAID 0, 1, 10 for SATA storage

• Advanced Cooling & Thermal Design

• VRM Thermal Armor Advanced
• M.2 Thermal Guard Ext.

• Fan and pump headers with speed control (support depends on installed fan/pump)

• High-Speed Networking

• Realtek® 2.5GbE LAN
• Wi-Fi 7 (RTL8922AE) with directional ultra-high gain antenna
• Bluetooth® 5.4
• Support for 2.4 / 5 / 6 GHz bands and 11be 160 MHz

• Wi-Fi 7 features require Windows 11 SV3 (no Windows 10 driver support)

• Extended Connectivity

• HDMI and DisplayPort video outputs
• Multiple USB 3.2 Gen 2 and Gen 1 ports including USB Type-C®

• Internal USB 3.2 Gen 2x2 Type-C header

• PCIe UD Slot Design

• PCIe 5.0 x16 slot with 10X strength for graphics card support and improved heat dissipation

• Build-Friendly Design

• WIFI EZ-Plug for quick Wi-Fi antenna installation
• EZ-Latch Plus: screwless quick-release design for PCIe and M.2 slots
• EZ-Latch Click: screwless M.2 heatsink design

• Sensor Panel Link: onboard video port for in-chassis panel setup

• User-Friendly BIOS & Software

• Multi-theme Friendly UI
• AIO fan control
• Q-Flash Auto Scan
• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash and Q-Flash Plus

• Support for Smart Backup

• Premium Audio

• Realtek® High Definition Audio CODEC
• 2/4/5.1/7.1-channel support (configurable via audio software)
• S/PDIF Out and optical S/PDIF Out

Specifications

General

CPU Support

• AMD Socket AM5, support for:
• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors

(Refer to GIGABYTE’s website for the latest CPU support list.)

Memory

(The CPU and memory configuration may affect supported memory types, speeds, and DRAM count. See GIGABYTE’s “Memory Support List” for details.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support (CPU dependent):

• DisplayPort
• 1 x DisplayPort
• Max resolution: 3840x2160 @ 144 Hz

• DisplayPort 1.4 and HDR support

• Front HDMI Port

• 1 x HDMI
• Max resolution: 1920x1080 @ 30 Hz
• HDMI 1.4 support

(Graphics specifications may vary depending on CPU support.)

Audio

Audio jacks can be reconfigured via audio software. Configure 7.1-channel audio in the audio software.

LAN & Wireless

Wi-Fi 7 channels on the 6 GHz band depend on local regulations.

Expansion Slots

CPU

• 1 x PCI Express x16 slot (PCIEX16)
• AMD Ryzen™ 9000 / 7000 Series: PCIe 5.0 x16 mode
• AMD Ryzen™ 8000 Series - Phoenix 1: PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series - Phoenix 2: PCIe 4.0 x4 mode

The PCIEX16 slot can support either a graphics card or an NVMe SSD. If only one graphics card is installed, use the PCIEX16 slot.

Chipset

• 2 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2)
• PCIe 3.0, running at x1

Storage

USB Connectivity

CPU

• 1 x USB Type-C® port on back panel, USB 3.2 Gen 2
• 2 x USB 3.2 Gen 2 Type-A (red) on back panel

CPU + USB 2.0 Hub

• 4 x USB 2.0/1.1 ports on back panel

Chipset

• 1 x USB Type-C® internal header, USB 3.2 Gen 2x2
• 3 x USB 3.2 Gen 1 ports (1 rear, 2 via internal header)
• 4 x USB 2.0/1.1 ports via internal headers

Chipset + USB 3.2 Gen 1 Hub

• 4 x USB 3.2 Gen 1 ports on back panel

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header (USB 3.2 Gen 2x2)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 modules)
• 1 x HDMI port (actual support may vary by CPU)
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x DisplayPort (actual support may vary by CPU)
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1 ports
• 1 x USB Type-C® port (USB 3.2 Gen 2)
• 5 x USB 3.2 Gen 1 ports
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x RJ-45 LAN port
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

I/O Controller & Monitoring

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (support depends on installed fan/pump)

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features & Software

• Support for GIGABYTE Control Center (GCC)
• Available applications and functions vary by motherboard model and specifications
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software
