Gigabyte B840M EAGLE WIFI6 AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6, 1x DisplayPort / 1x HDMI Port

Gigabyte B840M EAGLE WIFI6 AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6, 1x DisplayPort / 1x HDMI Port

$205.00

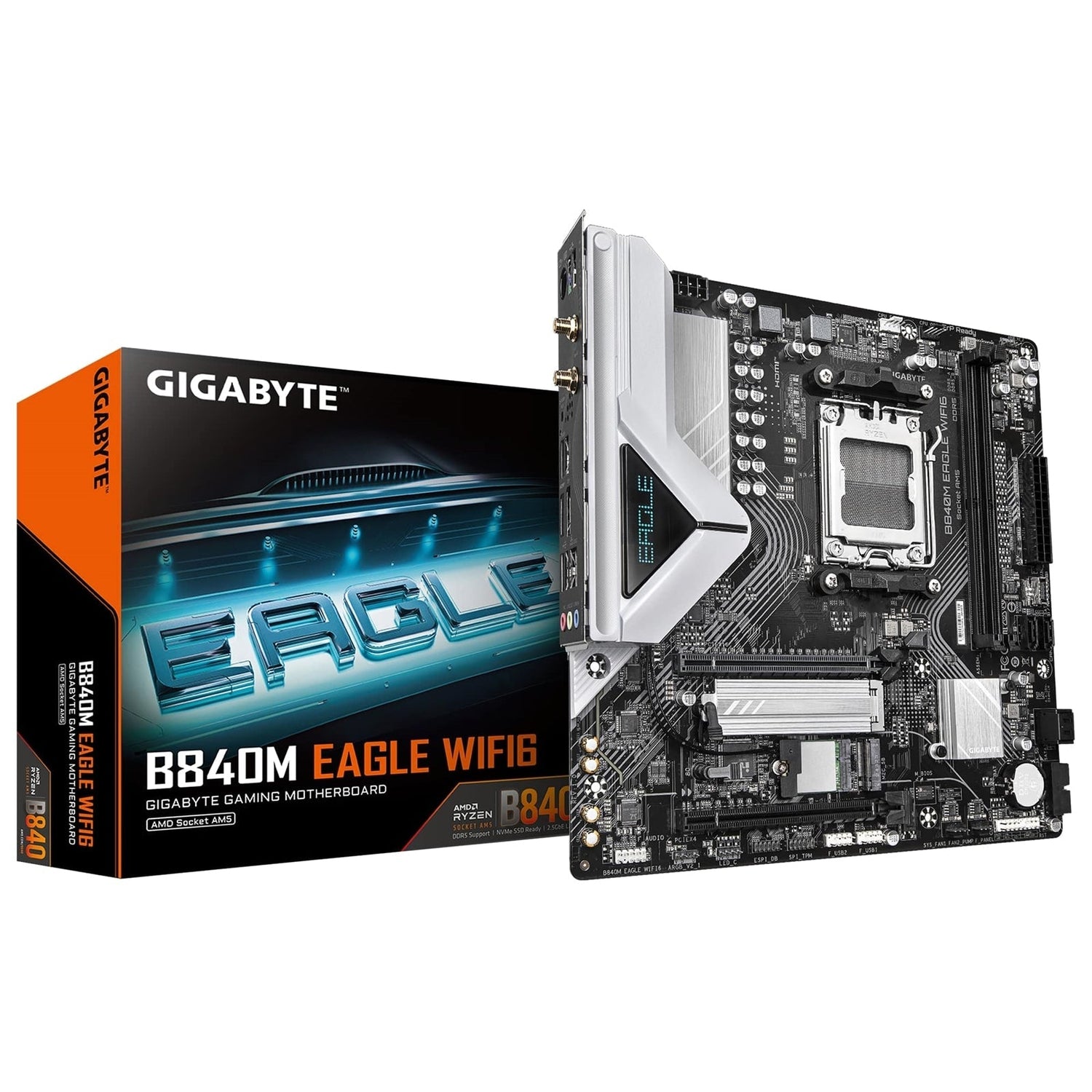

GIGABYTE B840M EAGLE WIFI6 Motherboard

Key Features

  • X3D Turbo Mode
    Unleash a new era of gaming performance.

  • AMD Socket AM5

  • Supports AMD Ryzen™ 9000 Series Processors
  • Supports AMD Ryzen™ 8000 Series Processors

  • Supports AMD Ryzen™ 7000 Series Processors

  • Digital 5+2+2 Phases VRM Solution

  • Dual Channel DDR5 Memory

  • 2 x DIMM slots

  • AMD EXPO™ memory module support

  • D5 Bionic Corsa
    Designed for infinite memory performance.

  • EZ-Latch Design

  • PCIe and M.2 slots with quick release & screwless design

  • M.2 heatsinks with screwless design

  • Friendly UI
    Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and software.

  • Ultra-Fast Storage

  • 2 x M.2 slots

  • Efficient Thermal Design

  • VRM Thermal Armor Advanced

  • M.2 Thermal Guard

  • Fast Networking

  • 2.5GbE LAN

  • Wi-Fi 6

  • Extended Connectivity

  • HDMI

  • DisplayPort

  • PCIe UD Slot

  • PCIe x16 slots with 10X strength for graphics card
  • Improved heat dissipation effect

Specifications

CPU

Item Details
Socket AMD Socket AM5
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Note For the latest CPU support list, refer to GIGABYTE's website.

Chipset

Item Details
Chipset AMD B840

Memory

Item Details
Type DDR5
Supported Speeds 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s
Slots 2 x DDR5 DIMM sockets
Max Capacity Up to 128 GB (64 GB per DIMM)
Architecture Dual channel memory architecture
Module Support Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profile Support AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP)
Note CPU and memory configuration may affect supported types, speeds, and number of modules. Refer to the “Memory Support List” on GIGABYTE's website.

BIOS

Item Details
ROM 1 x 256 Mbit flash
Type AMI UEFI BIOS (licensed)
Compliance PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Graphics

Item Details
Integrated Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support
DisplayPort 1 x DisplayPort, max resolution 3840x2160@144 Hz; supports DisplayPort 1.4 and HDR
HDMI 1 x HDMI port, max resolution 4096x2160@60 Hz; supports HDMI 2.1, HDCP 2.3, and HDR
HDMI Note Supports native HDMI 2.1 TMDS compatible ports
Note Graphics specifications may vary depending on CPU support.

Audio

Item Details
Codec Realtek® Audio CODEC
Audio High Definition Audio
Channel Support 2/4/5.1/7.1-channel
Note Audio jack functionality can be changed via software. To configure 7.1-channel audio, use the audio software settings.

LAN

Item Details
Controller Realtek® 2.5GbE LAN chip
Speed 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless LAN & Bluetooth

Item Details
Wireless Realtek® Wi-Fi 6 RTL8851BE
Standards Wi-Fi a/b/g/n/ac/ax
Bands 2.4 GHz / 5 GHz
Bluetooth Bluetooth 5.3
Wireless Standard Supports 11ax 80MHz
Note Actual data rate may vary depending on environment and equipment.

Expansion Slots

Item Details
PCIEX16 (CPU) 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
Ryzen 9000/7000 PCIe 4.0 x16 mode
Ryzen 8000 Phoenix 1 PCIe 4.0 x8 mode
Ryzen 8000 Phoenix 2 PCIe 4.0 x4 mode
Note PCIEX16 can support either a graphics card or an NVMe SSD. If only one graphics card is installed, use the PCIEX16 slot.
PCIEX4 (Chipset) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4

Storage

Item Details
M.2 (M2A_CPU) 1 x M.2 connector, integrated in the CPU, Socket 3, M key, type 2580/2280 SSDs
M2A Ryzen 9000/7000 Supports PCIe 4.0 x4/x2 SSDs
M2A Ryzen 8000 Phoenix 1 Supports PCIe 4.0 x4/x2 SSDs
M2A Ryzen 8000 Phoenix 2 Supports PCIe 4.0 x4/x2 SSDs
M.2 (M2C_SB) 1 x M.2 connector, integrated in the chipset, Socket 3, M key, type 2280, PCIe 3.0 x2 SSDs
SATA 4 x SATA 6Gb/s connectors

RAID

Item Details
NVMe RAID RAID 0, RAID 1, RAID 5, RAID 10 support for NVMe SSD storage devices
Note RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

USB

Source Ports
CPU 2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub 4 x USB 2.0/1.1 ports on the back panel
Chipset (Internal) 1 x USB Type-C® port with USB 3.2 Gen 1 support (via internal header)
Chipset (Internal) 2 x USB 3.2 Gen 1 ports (via internal headers)
Chipset (Internal) 4 x USB 2.0/1.1 ports (via internal headers)

Internal Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan/water cooling pump header
  • 2 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

Rear Panel I/O

  • 1 x PS/2 keyboard/mouse port
  • 4 x USB 2.0/1.1 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Q-Flash Plus button
  • 2 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 LAN port
  • 2 x SMA antenna connectors (2T2R)
  • 3 x audio jacks

Form Factor

Item Details
Form Factor Micro ATX
Dimensions 24.4 cm x 24.4 cm

Operating System Support

Item Details
OS Windows 11 64-bit
OS Windows 10 64-bit
