Gigabyte B760M GAMING PLUS WIFI DDR4 Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, Fitted I/O Shield, GbE LAN, Wi-Fi 6, 1x DisplayPort / 1x HDMI Port

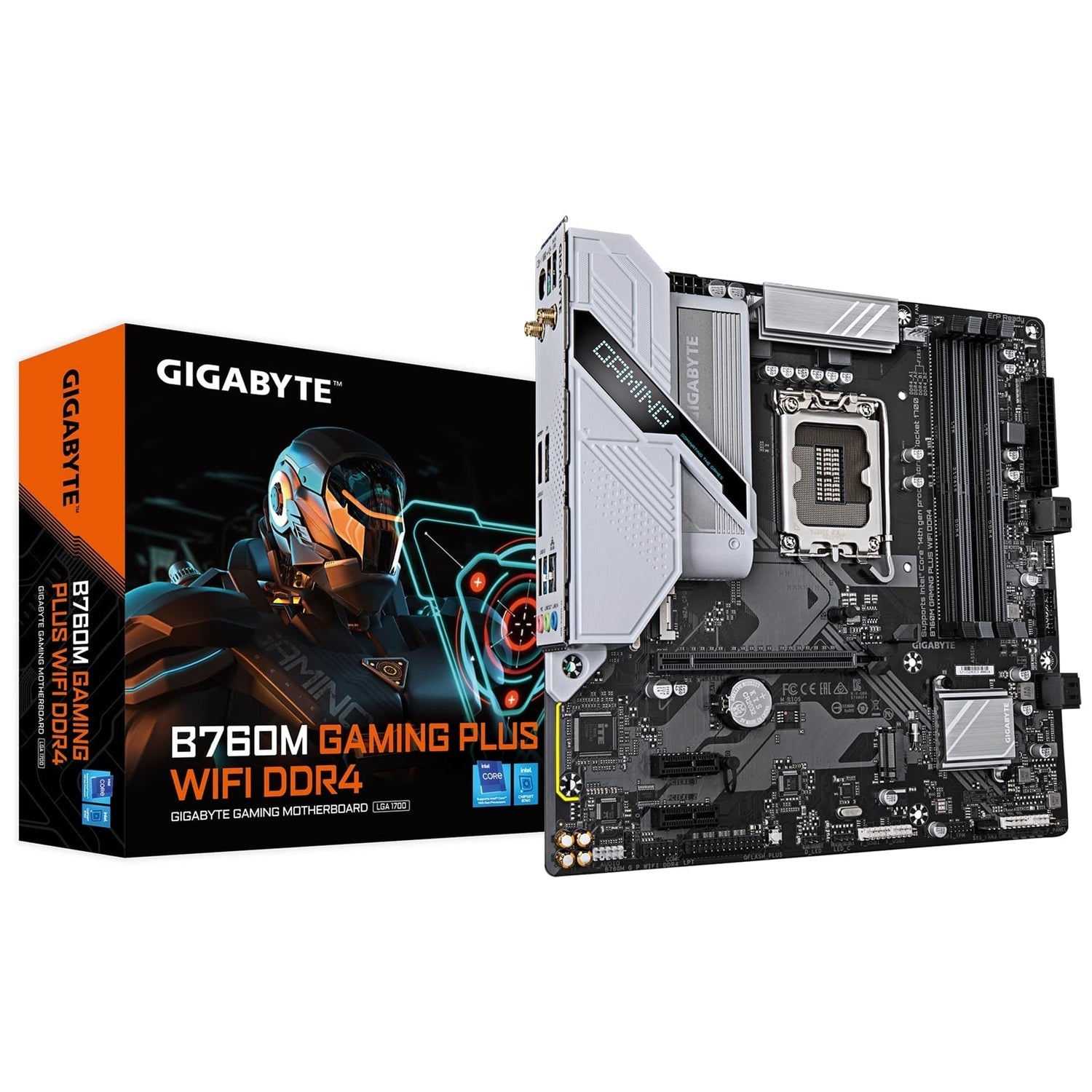

GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard

The GIGABYTE B760M GAMING PLUS WIFI DDR4 is a Micro ATX gaming motherboard designed for Intel 14th, 13th, and 12th Gen processors, delivering balanced performance, connectivity, and cooling control in a compact form factor.

Key Features

• CPU Support
• Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors (LGA1700)

• Digital Hybrid 4+1+1 Phases VRM design

• Memory Performance

• Dual Channel DDR4 with 4 x DIMM slots (up to 128 GB)
• Supports DDR4 XMP up to 5333 MHz (O.C.) and beyond

• XMP-ready platform for easy memory overclocking

• Next-Generation Storage

• 2 x PCIe 4.0 x4 M.2 connectors
• 4 x SATA 6Gb/s connectors

• Supports RAID 0/1/5/10 for SATA storage devices

• High-Speed Networking

• Wi-Fi 6 (802.11ax) with 2.4/5 GHz support
• Realtek GbE LAN (up to 1 Gbps)

• Bluetooth 5.3

• Extended Connectivity

• Front USB Type-C (USB 3.2 Gen 1, 5Gb/s) via internal header
• DisplayPort and HDMI for integrated graphics

• Multiple USB 3.2 Gen 1 and USB 2.0 ports

• Smart Fan 6 Cooling

• Multiple temperature sensors
• Hybrid fan headers with FAN STOP

• Advanced fan curve control and BIOS fan tuning UI

• Q-Flash Plus

• Update BIOS without installing CPU, memory, or graphics card

• Audio

• High-end audio capacitors

• Audio Noise Guard for cleaner sound

• Durable Design

• GIGABYTE Ultra Durable design
• Enlarged MOSFET heatsink for improved thermal performance

Performance & Power Design

Digital VRM Design

The digital Hybrid 4+1+1 Phases VRM design uses high-quality components to deliver stable power for Intel 14th / 13th / 12th Gen processors.

DDR4 XMP Support

GIGABYTE provides a tested platform for DDR4 XMP profiles up to 5333 MHz and beyond.
To benefit from XMP: - Use XMP-capable DDR4 memory modules
- Enable XMP in the motherboard BIOS

Advanced Thermal Solution

• Enlarged MOSFET heatsink surface for improved heat dissipation
• Smart Fan 6 for optimized cooling and quiet operation

Smart Fan 6 Highlights

• High Current Support: Each fan header supports PWM and DC fans and water cooling pumps up to 24W (12V x 2A) with over-current protection.
• Precision Control: Multiple temperature and fan speed control points for accurate fan curves.
• Dual Curve Mode: Slope and Stair modes for different usage scenarios.
• Fan Stop: Fans can stop completely below user-defined temperatures.

Smart Fan 6 BIOS UI

• Enhanced fan curve UI with more control points (from 5 to 7) and a larger speed graph
• Slope/Stair dual graph mode
• Manual input for advanced fan tuning
• EZ Tuning with 4-point quick setup
• Fan curve profiles stored in BIOS ROM (retained after BIOS updates)

Connectivity & Networking

Future-Ready Connectivity

• High-speed PCIe 4.0 support for graphics and M.2 storage
• Designed for fast data transfer and next-generation devices

Wi-Fi 6 (802.11ax)

• Wireless performance up to 2.4 Gbps
• Smoother video streaming and gaming
• Fewer dropped connections
• Bluetooth 5 with 4x range over BT 4.2 and faster transmission

GbE LAN

• Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Bandwidth management software to help reduce latency and maintain low ping in busy LAN environments

PCIe & Expansion

• PCIe 4.0 x16 slot from CPU for graphics
• PCIe 4.0 M.2 slot support for high-speed SSDs
• Additional PCIe 3.0 x1 slots from chipset

EZ-Latch

• Easy PCIe slot latch release for quick graphics card removal

Hi-Fi Audio

• Realtek Audio Codec with High Definition Audio
• 2/4/5.1/7.1-channel support
• High-end audio capacitors for high resolution, high-fidelity sound
• Audio Noise Guard design separating sensitive audio circuits from PCB noise

Easy-to-Use Features

Q-Flash Plus – BIOS Update Without CPU, RAM, or GPU

1. Connect 24-pin and 8-pin power cables to the motherboard.
2. Download the BIOS file, rename it to gigabyte.bin, save to a FAT32 USB flash drive, and insert into the Q-FLASH PLUS USB port.
3. Press the Q-FLASH PLUS button to start automatic BIOS update.

UC BIOS

• Redesigned UI and UX for intuitive operation
• Easy Mode with 9 customizable quick access slots

PerfDrive

• Exclusive BIOS settings designed to optimize performance based on cooling configuration

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN & Wireless

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
• 1 x serial port header
• 1 x parallel port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x HDMI port
• 3 x USB 3.2 Gen 1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller & Monitoring

BIOS

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

The GIGABYTE B760M GAMING PLUS WIFI DDR4 combines strong Intel platform support, PCIe 4.0 storage, Wi-Fi 6, and advanced cooling control in a compact, durable Micro ATX design tailored for gaming and performance-focused builds.
