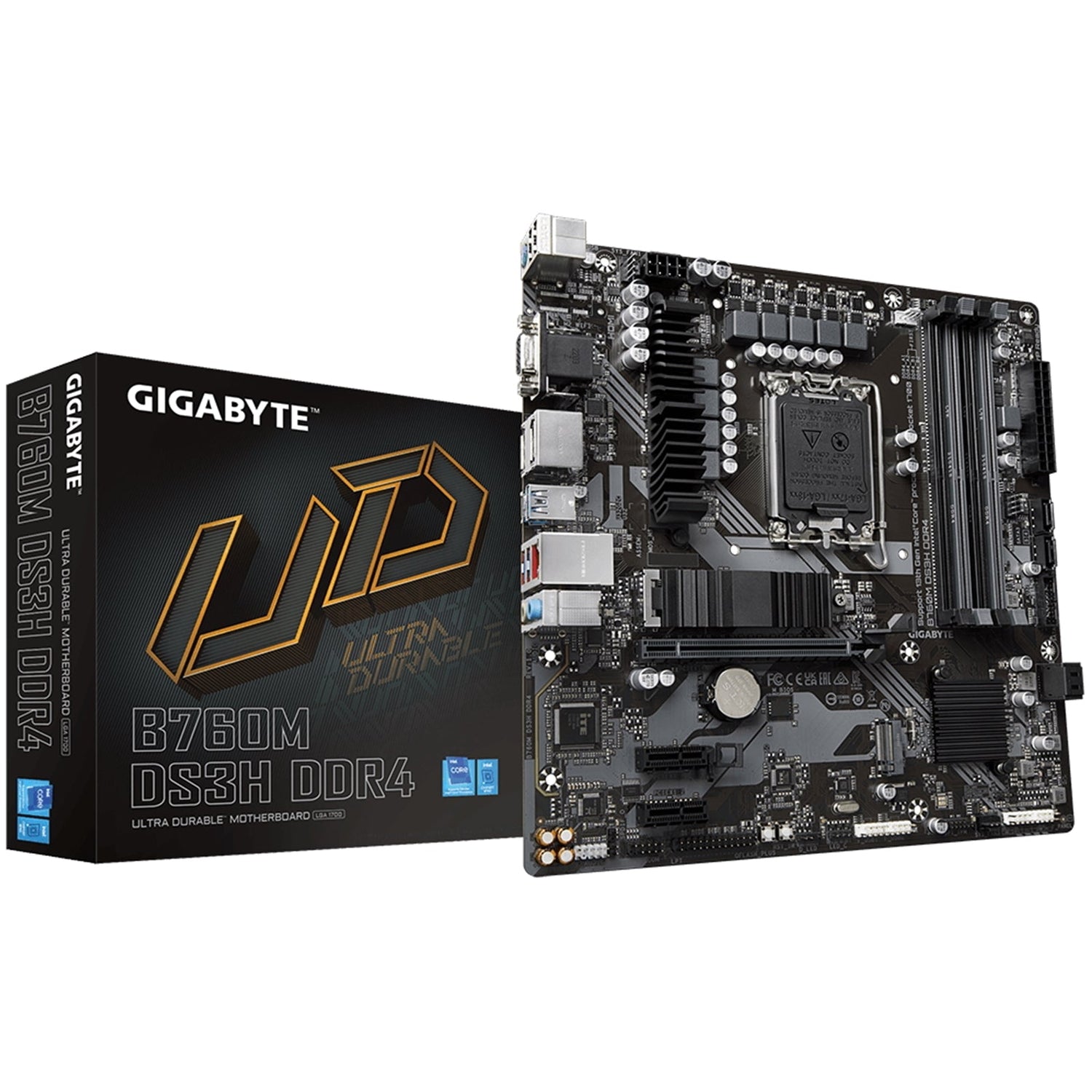

Gigabyte B760M DS3H DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

GIGABYTE B760 Micro ATX Motherboard – DDR4, LGA1700, PCIe 4.0

Optimized Power Design

• 6+2+1 Phases Hybrid Digital VRM Design
• Low RDS(on) MOSFETs for efficient power delivery
• Premium chokes and capacitors to improve transient response and minimize oscillation

Advanced M.2 Thermal Solution

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, this motherboard provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard helps prevent throttling and bottlenecks from high-speed M.2 SSDs by dissipating heat before it becomes an issue.

SMART FAN 6 Cooling Features

SMART FAN 6 includes several cooling features to help gaming PCs maintain performance while staying cool and quiet:

• Multiple fan headers supporting PWM/DC fans and pumps
• Intuitive user interface to define each fan curve
• Control based on different temperature sensors across the board

Personalization & Software Control

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software tools to help users control every aspect of the motherboard and provide customizable lighting effects with aesthetics designed to fit your unique personality.

Ultra Durable & Q-Flash Plus

ULTRA DURABLE – Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, or graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory, or graphics card, nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on a USB flash drive, then press the dedicated Q-Flash Plus button.

Specifications

CPU

• Socket: LGA1700
• CPU Support: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
• L3 Cache: Varies with CPU

Chipset

• Intel B760 Express Chipset

Memory

• Supported Memory Speeds (MT/s):
  DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133
• Slots: 4 x DDR DIMM sockets
• Maximum Capacity: Up to 128 GB (32 GB per DIMM)
• Architecture: Dual channel memory architecture
• Supported Modules:
• ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
• Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• Features: Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor – Intel HD Graphics support:

• 1 x D-Sub port, max resolution 1920x1200@60 Hz
• 1 x HDMI port, max resolution 4096x2160@60 Hz
• 2 x DisplayPort, each supporting max resolution 4096x2304@60 Hz
• Support for up to quad-display at the same time

Audio

• Codec: Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN

• Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

Expansion Slots

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0, running at x16
• Chipset:
• 2 x PCI Express x1 slots, supporting PCIe 3.0, running at x1

Storage Interface

• CPU:
• 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• Chipset:
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports via internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
• Chipset + 2 USB 2.0 Hubs:
• 4 x USB 2.0/1.1 ports via internal USB headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x parallel port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x DisplayPorts
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port with USB 3.2 Gen 2 support
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• Licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• Micro ATX Form Factor
• Dimensions: 24.4 cm x 24.4 cm
