Gigabyte B760M AORUS ELITE WIFI6E GEN5 Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 1x HDMI Port/ 1x DisplayPort

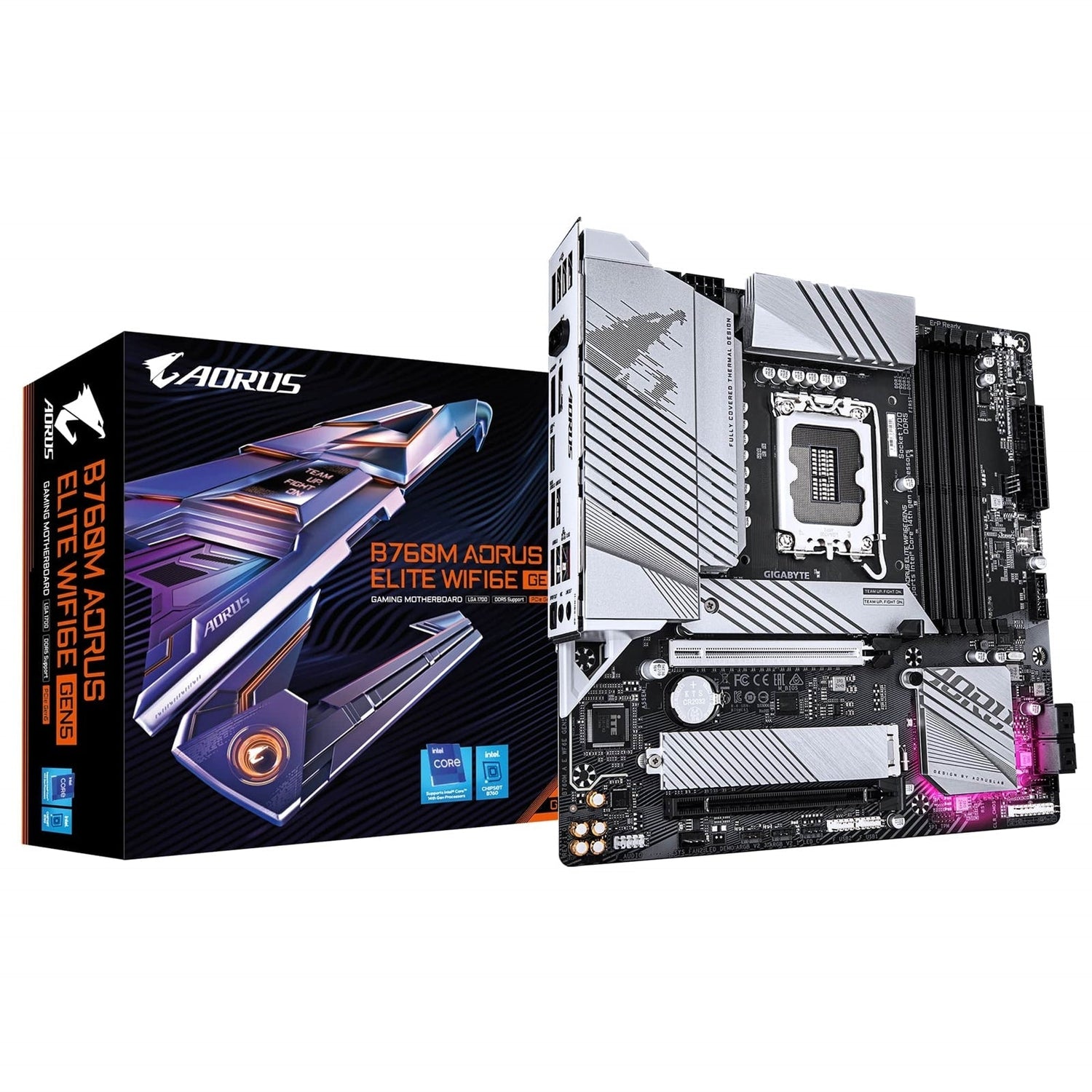

Gigabyte B760M AORUS ELITE WIFI6E Gen5 Motherboard

Micro ATX LGA1700 motherboard with PCIe 5.0, DDR5, Wi-Fi 6E, and advanced thermal design.

PCIe Gen5 Performance

Express to PCIe 5 performance with the new GIGABYTE B760 platform:

• PCIe 5.0 x16 slot doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane
• Ideal for high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement
• PCIe UD Slot with SMD PCIe 5.0 Armor for enhanced graphics card support

Efficient Cooling & Thermal Design

Stay cool under load with a fully covered thermal solution:

• High-coverage MOSFET and integrated molding heatsinks
• Improved thermal efficiency through better airflow and heat exchange
• VRM Thermal Armor Advanced & M.2 Thermal Guard
• Smart Fan 6 with multiple temperature sensors, hybrid fan headers, and FAN STOP

DIY-Friendly Design

Built for hassle-free assembly and the ultimate DIY experience:

• EZ-Latch: PCIe 5.0 x16 slot with quick release design
• EZ-Latch Plus: M.2 connectors with quick release and screwless design
• Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card
• Onboard Q-Flash Plus button and clear CMOS jumper

Ultra Durable & Optimized Power

Born from GIGABYTE Ultra Durable technology for longevity and reliability:

• Twin 12*+1+1 phases hybrid VRM solution
• Designed for maximum Turbo Boost and overclocking performance
• Engineered to endure and excel in demanding gaming scenarios

High-Speed Networking & Wireless

Fast, stable connectivity for gaming and productivity:

• Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
• Intel Wi-Fi 6E AX210 with 2.4/5/6 GHz support
• Bluetooth 5.3
• WIFI EZ-Plug for quick, easy Wi-Fi antenna installation
• WIFI Compass for automatic detection of the best antenna position

Customization & Software

Tailor your system to your style and workflow:

• Customizable lighting effects with outstanding aesthetics
• Several useful and intuitive software tools to control motherboard functions
• Support for GIGABYTE Control Center (GCC)
• Norton Internet Security (OEM version)
• LAN bandwidth management software

Extended Connectivity & Storage

Comprehensive connectivity for peripherals and storage:

• Rear USB-C 20Gb/s and front USB-C 10Gb/s
• DisplayPort and HDMI video outputs
• Next-generation storage with 2 x PCIe 4.0 x4 M.2 connectors
• RAID 0/1/5/10 support for SATA drives

Key Features Summary

• PCIe Gen5 performance: perfect sync to win
• Supports Intel Core 14th / 13th / 12th Gen processors
• Twin 12*+1+1 phases hybrid VRM solution
• Dual channel DDR5 (4 DIMMs) with XMP support
• Fast networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Smart Fan 6 cooling control
• High-res audio with ALC1220 and high-end audio capacitors
• Micro ATX form factor: 24.4 cm x 24.4 cm

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt add-in card connectors
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x antenna connectors (2T2R)
• 1 x USB Type-C port (USB 3.2 Gen 2x2)
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port (Note)
• 1 x DisplayPort (Note)
• 1 x RJ-45 LAN port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

I/O Controller & Monitoring

BIOS

Unique Features & Software

• Support for GIGABYTE Control Center (GCC)
• Q-Flash and Q-Flash Plus support
• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor
