Gigabyte B760 DS3H GEN5 Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 2x M.2 Sockets, GbE LAN, 1x DisplayPort / 1x HDMI Port
$190.00

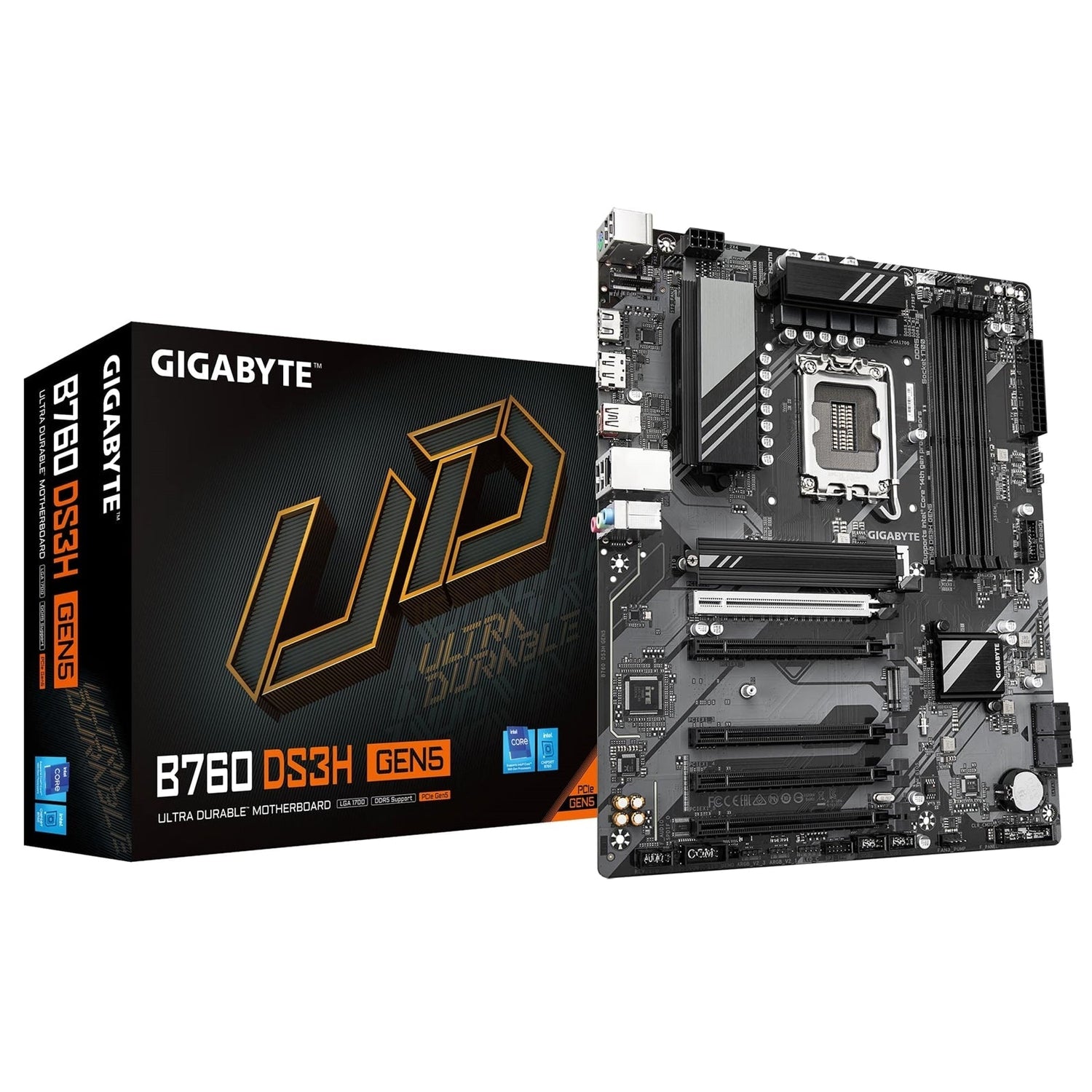

GIGABYTE B760 DS3H GEN5 Motherboard
Unlock next-generation performance and connectivity with the GIGABYTE B760 DS3H GEN5, designed for 14th, 13th, and 12th Gen Intel® processors and PCIe 5.0 graphics.
Key Features
- PCIe Gen5 Performance
- Designed for PCIe 5.0 x16 graphics performance
- EZ-Latch quick release design for the PCIe 5.0 x16 slot
-
PCIe UD Slot with SMD PCIe 5.0 armor for enhanced graphics card support
-
Wide CPU Compatibility
-
Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, and Celeron® processors (LGA1700)
-
Unparalleled Power Delivery
-
Hybrid 8+2+1 phases VRM solution
-
High-Speed DDR5 Memory
- Dual channel DDR5
-
4 x DIMM slots with XMP memory module support
-
Fast Network Connectivity
-
Realtek® GbE LAN
-
Next Generation Storage
-
2 x PCIe 4.0 x4 M.2 connectors
-
Extended Connectivity
- Rear USB Type-C® 20Gb/s
-
DisplayPort and HDMI outputs
-
Advanced Cooling Control – Smart Fan 6
- Multiple temperature sensors
-
Hybrid fan headers with FAN STOP
-
Easy BIOS Updates – Q-Flash Plus
- Update BIOS without installing CPU, memory, or graphics card
Specifications
CPU
| Item | Details |
|---|---|
| Socket | LGA1700 |
| Support | 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Note | L3 cache varies with CPU. For the latest CPU support list, please refer to GIGABYTE’s website. |
Chipset
| Item | Details |
|---|---|
| Chipset | Intel® B760 Express Chipset |
Memory
| Item | Details |
|---|---|
| Type | DDR5 |
| Supported Speeds | 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel memory architecture |
| ECC Support | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Non-ECC Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| XMP | Support for Extreme Memory Profile (XMP) memory modules |
| Note | CPU and memory configuration may affect supported memory types, speeds, and number of DRAM modules. Refer to the “Memory Support List” on GIGABYTE’s website for details. |
BIOS
| Item | Details |
|---|---|
| ROM | 1 x 128 Mbit flash |
| Type | Licensed AMI UEFI BIOS |
| Compliance | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics
Integrated Graphics Processor – Intel® HD Graphics support
| Output | Details |
|---|---|
| HDMI Port | 1 x HDMI, max resolution 4096x2160 @ 60 Hz, HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible ports |
| DisplayPort | 1 x DisplayPort, max resolution 4096x2304 @ 60 Hz, DisplayPort 1.2, HDCP 2.3 |
Audio
| Item | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Specification | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel* |
| Digital Out | Support for S/PDIF Out |
| Note | *Jack functionality configurable via audio software. For 7.1-channel audio, configure settings in audio software. |
LAN
| Item | Details |
|---|---|
| Controller | Realtek® GbE LAN chip |
| Speeds | 1 Gbps / 100 Mbps / 10 Mbps |
Wireless LAN
| Item | Details |
|---|---|
| Wi-Fi | N/A |
Expansion Slots
| Source | Slots |
|---|---|
| CPU | 1 x PCI Express x16 slot, PCIe 5.0, running at x16 (PCIEX16)* |
| Chipset | 4 x PCI Express x16 slots, PCIe 3.0, running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is installed, it must be in the PCIEX16 slot.
Storage
| Source | Connectors |
|---|---|
| CPU | 1 x M.2 (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | 1 x M.2 (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Chipset | 4 x SATA 6Gb/s connectors |
RAID
| Item | Details |
|---|---|
| RAID Support | RAID 0, 1, 5, 10 for SATA storage devices |
USB
Chipset
- 1 x USB Type-C® port on the back panel with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support (via internal header)
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports (via internal header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset + USB 2.0 Hub
- 4 x USB 2.0/1.1 ports (via internal headers)
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C® header (USB 3.2 Gen 1 support)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 modules only)
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Rear Panel I/O
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port
- 1 x DisplayPort
- 1 x RJ-45 LAN port
- 3 x audio jacks
Form Factor
| Item | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
