Gigabyte B650M GAMING WIFI6E (rev. 1.2) AMD AM5 Socket Motherboard, 2x DDR5 DIMM Slots, 1x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6E, 1x D-Sub / 1x HDMI Port
$173.00

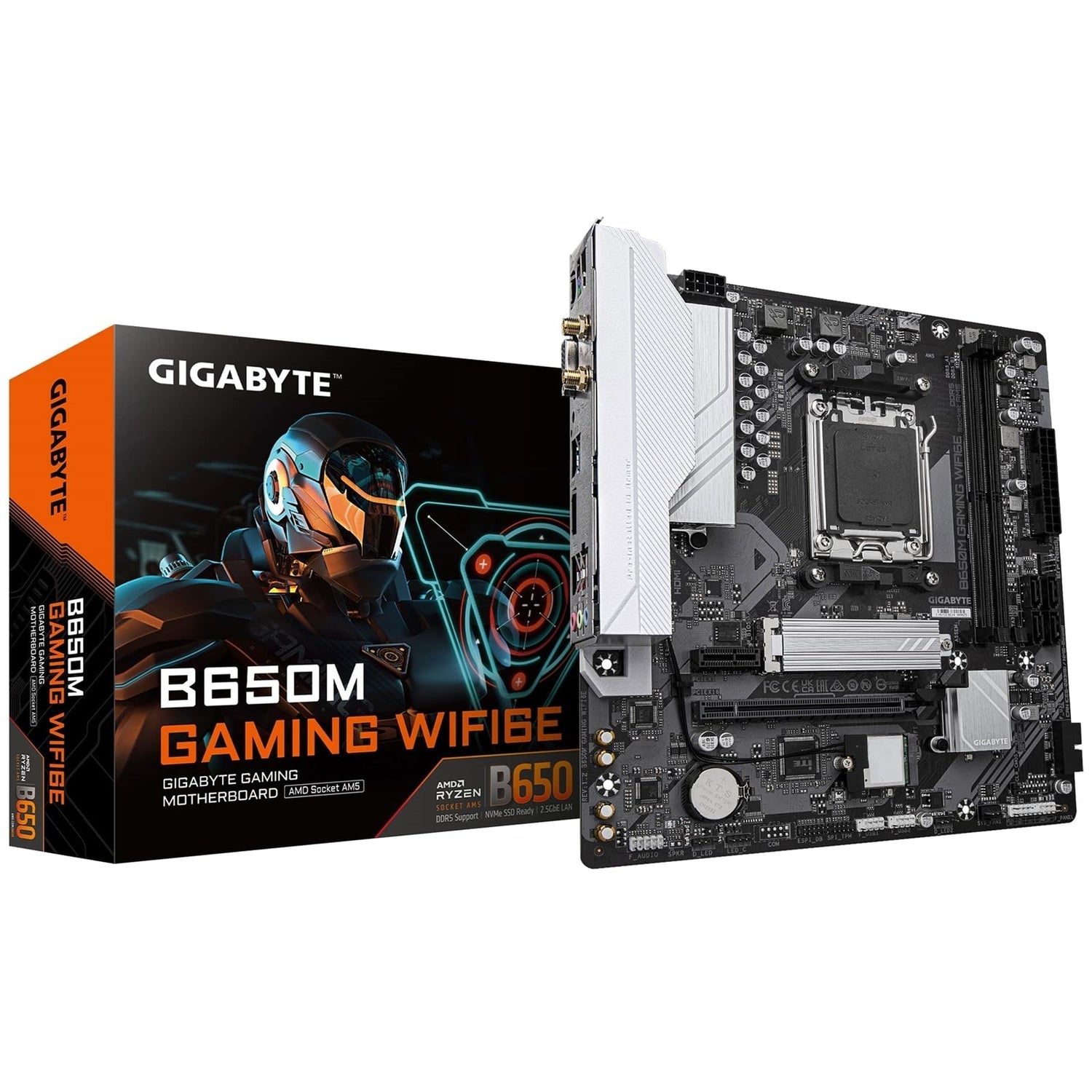

GIGABYTE B650M GAMING WIFI6E (rev. 1.2 / rev. 1.3) Motherboard
The GIGABYTE B650M GAMING WIFI6E micro ATX motherboard is designed for AMD Socket AM5 builds, offering high-speed DDR5 memory support, fast PCIe 4.0 storage, and integrated Wi‑Fi 6E networking. With advanced power design, smart cooling controls, and convenient BIOS update tools, it provides a solid platform for modern AMD Ryzen systems.
Key Features
- AMD Socket AM5
-
Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
-
Unparalleled Performance
-
5+2+2 phases digital VRM solution
-
Dual Channel DDR5
- 2 x SMD DDR5 DIMM slots
-
AMD EXPO and Intel XMP memory module support
-
SuperSpeed Storage
-
PCIe 4.0 x4 M.2 connector
-
EZ-Latch
-
PCIe x16 slot with quick release design
-
Fast Networks
- 2.5GbE LAN
-
Wi‑Fi 6E (802.11ax)
-
Extended Connectivity
- HDMI
-
D‑sub
-
Smart Fan 6
- Multiple temperature sensors
-
Hybrid fan headers with FAN STOP
-
Q-Flash Plus
- Update BIOS without installing CPU, memory, or graphics card
Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Notes | For the latest CPU support list, refer to GIGABYTE's website. |
Chipset
| Item | Details |
|---|---|
| Chipset | AMD B650 |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds | DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Slots | 2 x DDR5 DIMM sockets |
| Maximum Capacity | Up to 128 GB (64 GB per DIMM) |
| Channel Architecture | Dual channel |
| Module Support | Non‑ECC Un‑buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Profile Support | AMD EXtended Profiles for Overclocking (AMD EXPO), Extreme Memory Profile (XMP) |
| Notes | CPU and memory configuration may affect supported memory types, speeds, and number of modules. Refer to the “Memory Support List” on GIGABYTE's website. |
Onboard Graphics
| Item | Details |
|---|---|
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support |
| D-Sub | 1 x D‑Sub, max resolution 1920x1200@60 Hz |
| HDMI | 1 x HDMI, max resolution 4096x2160@60 Hz |
| HDMI Version | HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible ports |
| Notes | Graphics specifications may vary depending on CPU support. |
Audio
| Item | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio | High Definition Audio |
| Channel Support | 2/4/5.1/7.1‑channel |
| Notes | Audio jack functionality can be changed via audio software. Configure 7.1‑channel audio through the audio software. |
LAN
| Item | Details |
|---|---|
| Controller | Realtek 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless Communication
| Item | Details |
|---|---|
| Chipset | Realtek Wi‑Fi 6E RTL8852CE |
| Wi‑Fi Standards | 802.11 a/b/g/n/ac/ax |
| Frequency Bands | 2.4 / 5 / 6 GHz |
| Bluetooth | Bluetooth 5.3 |
| Features | Support for 11ax 160 MHz wireless |
| Notes | Actual data rate may vary depending on environment and equipment. |
Expansion Slots
| Item | Details |
|---|---|
| PCIe x16 (CPU) | 1 x PCI Express x16 slot (PCIEX16) |
| Ryzen 9000/7000 | PCIe 4.0 x16 mode |
| Ryzen 8000 Series – Phoenix 1 | PCIe 4.0 x8 mode |
| Ryzen 8000 Series – Phoenix 2 | PCIe 4.0 x4 mode |
| PCIe x1 (Chipset) | 1 x PCI Express x1 slot, PCIe 3.0, running at x1 |
| Notes | For optimum performance with a single graphics card, install it in the PCIEX16 slot. |
Storage Interface
| Item | Details |
|---|---|
| M.2 (CPU) | 1 x M.2 connector, Socket 3, M key, type 2580/2280 SSDs |
| M.2 Support – Ryzen 9000/7000 | PCIe 4.0 x4/x2 SSDs |
| M.2 Support – Ryzen 8000 Phoenix 1 | PCIe 4.0 x4/x2 SSDs |
| M.2 Support – Ryzen 8000 Phoenix 2 | PCIe 4.0 x4/x2 SSDs |
| SATA | 4 x SATA 6 Gb/s connectors |
| NVMe RAID | RAID 0, 1, 10 support for NVMe SSD storage devices |
| SATA RAID | RAID 0, 1, 10 support for SATA storage devices |
USB Connectivity
CPU:
- 2 x USB 3.2 Gen 1 ports (back panel)
- 1 x USB 2.0/1.1 port (back panel)
Chipset:
- 2 x USB 3.2 Gen 1 ports (via internal USB header)
- 5 x USB 2.0/1.1 ports
- 3 x on back panel
- 2 x via internal USB header
Chipset + USB 2.0 Hub:
- 2 x USB 2.0/1.1 ports via internal USB header
Internal I/O Connectors
- 1 x 24‑pin ATX main power connector
- 1 x 8‑pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable LED strip headers
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6 Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI / GC‑TPM2.0 SPI 2.0 / GC‑TPM2.0 SPI V2 module only)
- 1 x Clear CMOS jumper
Back Panel Connectors
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D‑Sub port*
- 1 x Q‑Flash Plus button
- 2 x USB 3.2 Gen 1 ports
- 1 x HDMI port*
- 1 x RJ‑45 LAN port
- 3 x audio jacks
* Actual support may vary by CPU.
I/O Controller
- iTE I/O Controller chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control*
* Fan speed control support depends on the fan installed.
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)*
- Support for Q‑Flash
- Support for Q‑Flash Plus
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64‑bit
- Windows 10 64‑bit
Form Factor
- Micro ATX
- Dimensions: 24.0 cm x 22.5 cm
