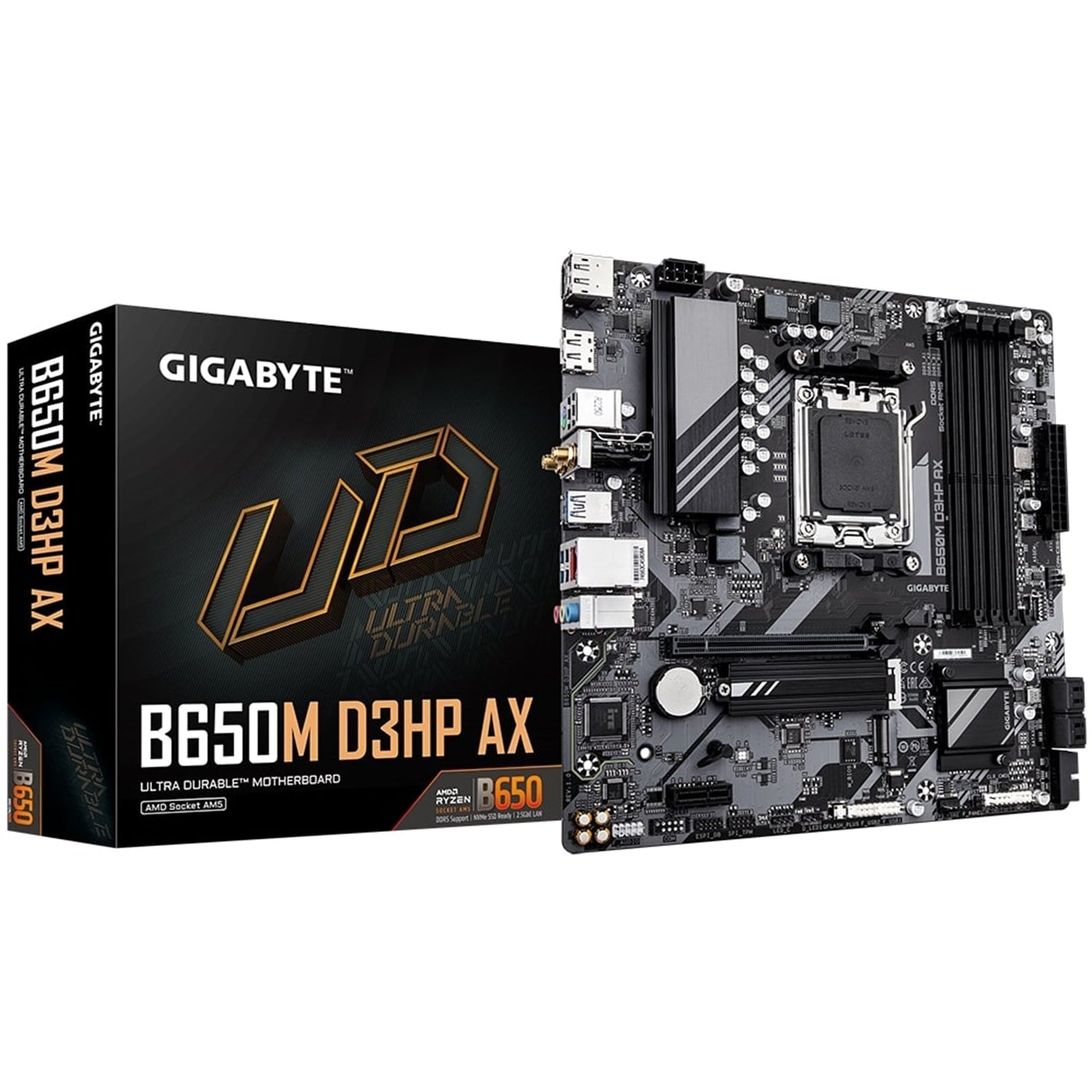

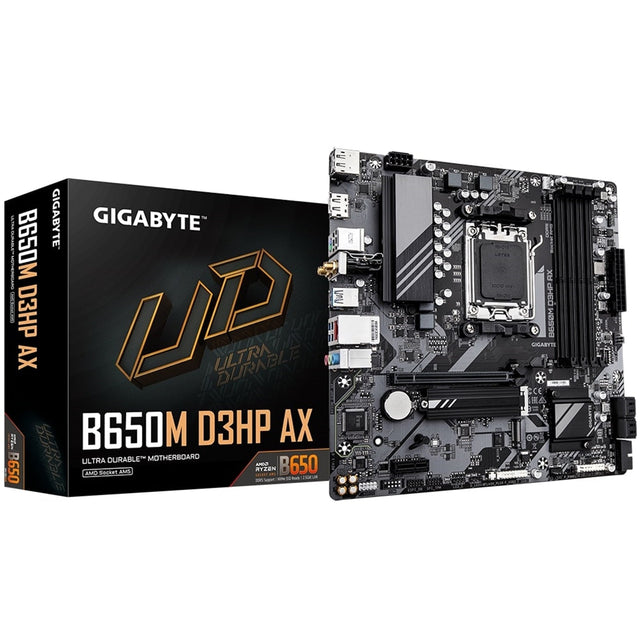

Gigabyte B650M D3HP AX Ultra Durable AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, Wi-Fi 6E, 2x DisplayPorts / 1x HDMI Port

GIGABYTE B650 Micro ATX Motherboard – Ultra Durable, AM5 Gaming Platform

Durable Performance

GIGABYTE Ultra Durable motherboards are built inside and out with optimal components to deliver prime performance and a reliable, long-lasting platform.

• Digital VRM Design
  5+2+2 phases digital VRM solution with low RDS(on) MOSFETs for stable and efficient power delivery.

• DDR5 EXPO & XMP Support
  DDR5 EXPO and XMP overclocking support up to 7600 MT/s and beyond.

Next-Generation Connectivity

Experience blazing data-transfer speeds and modern connectivity for gaming and content creation.

• 802.11ax Wi‑Fi 6E
• Dedicated 6 GHz band
• Gigabit-class wireless performance
• Smooth video streaming
• Better gaming experience
• Fewer dropped connections
• Speeds up to 2.4 Gbps

• Bluetooth 5 with 4x range over BT 4.2 and faster transmission

• 2.5GbE LAN
  Supercharge your gaming with 2.5GbE LAN for lightning-fast speeds, minimal lag, and strong competitive performance.

• PCIe 4.0 Hardware Design

• Ready for PCIe 4.0 devices, offering up to twice the bandwidth of PCIe 3.0
• Low-impedance PCB design for high speed and strong signal integrity

Hi‑Fi Audio

• High-End Audio Capacitors
  High-quality capacitors deliver high-resolution, high-fidelity audio for realistic sound effects.

• Audio Noise Guard
  Audio circuitry is isolated to help protect sensitive analog components from PCB-level noise.

Easy & User-Friendly Design

Innovative, intuitive hardware, software, and BIOS features to personalize and simplify your build.

• EZ‑Latch
  Quickly release the PCIe x16 slot latch for easy graphics card removal.

• Q‑Flash Plus
  Update the BIOS without installing CPU, memory, or graphics card.

• Plug in 24-pin & 8-pin power cables
• Download the motherboard BIOS, rename it to gigabyte.bin, save to USB flash drive, and plug into the Q‑Flash USB port
• Press the Q‑Flash Plus button and the board will update the BIOS automatically

Smart Fan 6 Cooling

Smart Fan 6 offers advanced cooling controls to keep your gaming PC cool and quiet.

Cooling Features

• High current support:
• Each fan header supports PWM and DC fans and water cooling pumps
• Up to 24W (12V x 2A) with over-current protection
• Precision control:
• Multiple temperature and fan speed control points for accurate fan curves
• Dual curve mode:
• Slope / Stair dual mode for different usage scenarios
• Fan Stop:
• Fans can stop completely below a user-defined temperature

Smart Fan 6 BIOS UI

• Increased control points from 5 to 7 with a larger fan speed graph
• Slope and Stair graph modes for flexible curve design
• Manual fan speed input for advanced control
• EZ Tuning with 4 quick tuning points to auto-generate a fan curve
• Fan curve profiles can be saved in BIOS ROM and retained after BIOS updates

Key Features

• CPU Support: AMD Socket AM5
• Supports AMD Ryzen 7000 Series processors
• Power Design: 5+2+2 phases digital VRM solution
• Memory:
• Dual-channel DDR5
• 4 SMD DIMMs with AMD EXPO & Intel XMP memory module support
• Storage:
• PCIe 4.0 x4 M.2 connector
• EZ‑Latch:
• PCIe x16 slot with quick-release design
• Networking:
• 2.5GbE LAN
• Display Outputs:
• 2 x DisplayPort, 1 x HDMI
• Cooling:
• Smart Fan 6 with multiple temperature sensors and hybrid fan headers with Fan Stop
• BIOS Utility:
• Q‑Flash Plus for BIOS updates without CPU, memory, or GPU

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage Interface

USB

From CPU

• 1 x USB Type‑C (back panel), USB 3.2 Gen 1
• 1 x USB 3.2 Gen 1 (back panel)
• 1 x USB 2.0/1.1 (back panel)

From Chipset

• 2 x USB 3.2 Gen 1 (back panel)
• 1 x USB Type‑C (internal header), USB 3.2 Gen 1
• 2 x USB 3.2 Gen 1 (internal header)
• 5 x USB 2.0/1.1 (1 back panel, 4 internal via headers)

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 1 x 8‑pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type‑C header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI / GC‑TPM2.0 SPI 2.0 / GC‑TPM2.0 SPI V2 modules only)
• 1 x Q‑Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type‑C (USB 3.2 Gen 1)
• 3 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x HDMI port
• 2 x DisplayPort
• 1 x RJ‑45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications and functions vary by model and specifications
• Support for Q‑Flash
• Support for Q‑Flash Plus

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64‑bit
• Windows 10 64‑bit

Form Factor
