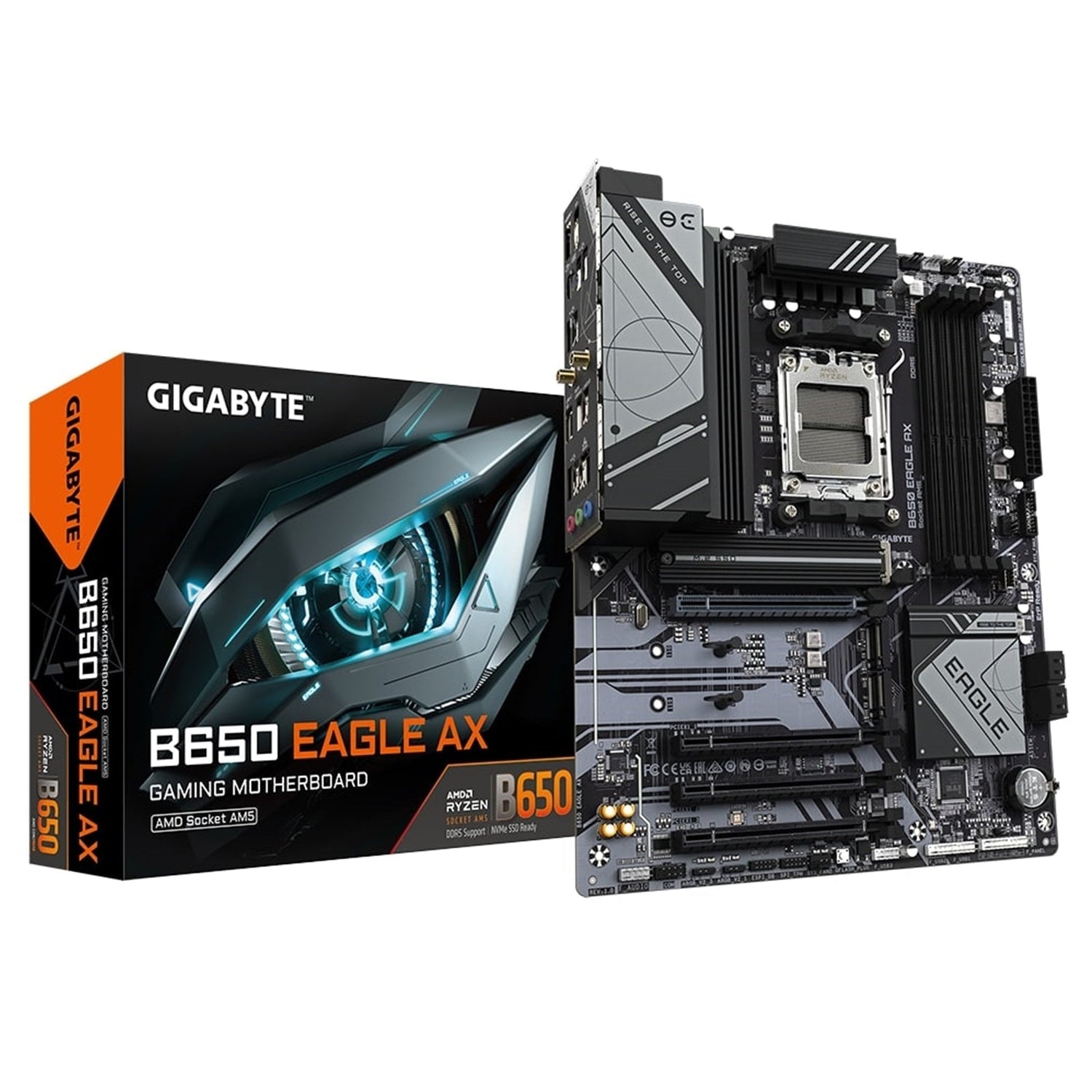

Gigabyte B650 EAGLE AX AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

GIGABYTE B650 ATX Motherboard – AMD Socket AM5

Upgrade your system with a feature-rich GIGABYTE Ultra Durable B650 motherboard designed for AMD Ryzen 7000 and 8000 Series processors. Engineered for performance, cooling, and connectivity, it delivers a strong foundation for modern gaming and productivity builds.

Key Features

AMD AM5 Platform & Power Design

• AMD Socket AM5
• Supports AMD Ryzen 7000 Series Processors
• Supports AMD Ryzen 8000 Series Processors
• 12+2+2 Phases Digital VRM Solution for stable power delivery
• Digital VRM Design using high-quality components
• Advanced Thermal Design & M.2 Thermal Guard to help ensure VRM stability and 25110 M.2 SSD performance
• Fully Covered MOSFET Heatsink for enhanced cooling on power components

High-Speed DDR5 Memory Support

• Dual Channel DDR5 with 4 SMD DIMM slots
• Supports:
• DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
• Up to 192 GB total capacity (48 GB per DIMM)
• Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 modules
• AMD EXPO™ and Intel XMP profiles
• EXPO & XMP Overclocking support “up to 7600 and beyond” (based on GIGABYTE tested platform)

Note: CPU and memory configuration may affect supported memory types, speeds, and module count. Refer to GIGABYTE’s Memory Support List.

SuperSpeed Storage & PCIe

• M.2 Storage
• 1 x PCIe 5.0 M.2 connector
• 2 x PCIe 4.0 M.2 connectors
• PCIe 4.0 Hardware Design
• PCIe 4.0 x16 slot support
• PCIe 4.0 M.2 slot support
• Supports RAID 0, 1, and 10 for both NVMe and SATA storage devices

Fast Networks & Connectivity

• Wi-Fi 6E (802.11ax)
• New 6 GHz band
• Gigabit-class wireless performance
• Smoother video streaming and gaming
• Reduced dropped connections
• Speeds up to 2.4 Gbps
• Bluetooth 5 with up to 4X range over BT 4.2 and faster transmission
• Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
• Bandwidth management to help improve latency and maintain low ping in crowded environments

Graphics & Display

• Integrated Graphics Processor outputs:
• 1 x DisplayPort – max 3840x2160 @ 144 Hz
• 1 x HDMI – max 4096x2160 @ 60 Hz

Audio

• Realtek Audio CODEC – High Definition Audio
• 2/4/5.1/7.1-channel support
• High-End Audio Capacitors for high-resolution, high-fidelity sound
• Audio Noise Guard to isolate sensitive analog audio circuitry from PCB noise

Easy Installation & DIY-Friendly Design

EZ-Latch

• PCIe x16 Slot with Quick Release Design
• Easily unlock the latch when removing a graphics card

Q-Flash Plus – BIOS Update Without CPU, RAM, or GPU

Update BIOS quickly and easily without installing CPU, memory, or graphics card:

1. Plug the 24-pin and 8-pin power cables into the motherboard.
2. Download the BIOS file, rename it to “gigabyte.bin”, save to a FAT32 USB flash drive, and insert it into the Q-FLASH PLUS USB port.
3. Press the Q-FLASH PLUS button to start the automatic BIOS update.

Smart Fan 6 – Advanced Cooling Control

Smart Fan 6 delivers optimal cooling and quiet operation with powerful control options:

• High Current Support
• Each fan header supports PWM/DC fans and water cooling pumps
• Up to 24W (12V x 2A) with Over-Current Protection
• Precision Control
• Multiple temperature and fan speed control points for precise fan curves
• Dual Curve Mode
• Slope Mode: Linear fan speed curve
• Stair Mode: Constant fan speed within set temperature intervals
• Fan Stop
• Fans can stop completely below a user-defined temperature
• Smart Fan 6 BIOS UI
• Enhanced fan curve UI with:
  • Increased control points (from 5 to 7)
  • Larger fan speed graph for easier tuning
• Manual Input for advanced fine-tuning
• EZ Tuning: Set 4 rough points; Smart Fan 6 generates a curve automatically
• Fan Curve Profile: Save custom curves in BIOS ROM (retained after BIOS updates)

UC BIOS & System Control

• UC BIOS – Redesigned UI/UX with intuitive, visually refined interface
• Quick Access – 9 customizable option slots in Easy Mode
• PerfDrive – Exclusive BIOS settings to optimize performance based on cooling configuration
• Support for GIGABYTE Control Center (GCC) for unified system control
• Support for Q-Flash & Q-Flash Plus

Detailed Specifications

CPU & Chipset

Memory

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power
• 1 x 8-pin ATX 12V power
• 1 x CPU fan header
• 1 x CPU fan / water cooling pump header
• 2 x system fan headers
• 1 x system fan / water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 3 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
• 1 x Q-Flash Plus button
• 1 x serial port header
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x DisplayPort
• 1 x HDMI port
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x USB Type-C (USB 3.2 Gen 1)
• 2 x USB 3.2 Gen 2 Type-A (red)
• 6 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

Networking

• Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• 802.11ax Wi-Fi 6E with 6 GHz band
• Bluetooth 5

I/O Controller & Monitoring

• iTE I/O Controller chip
• Voltage, temperature, and fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features & Software

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash and Q-Flash Plus
• Bundled Software:
• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• ATX Form Factor
• Dimensions: 30.5 cm x 24.4 cm

Durable Performance Platform

GIGABYTE Ultra Durable motherboards are built with carefully selected components inside and out to provide long-lasting, stable performance and a dependable platform for your next AMD Ryzen build.
