Gigabyte B550M GAMING X WIFI6 AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, Fitted I/O Shield, GbE LAN, Wi-Fi 6, 1x DisplayPort / 1x HDMI Port

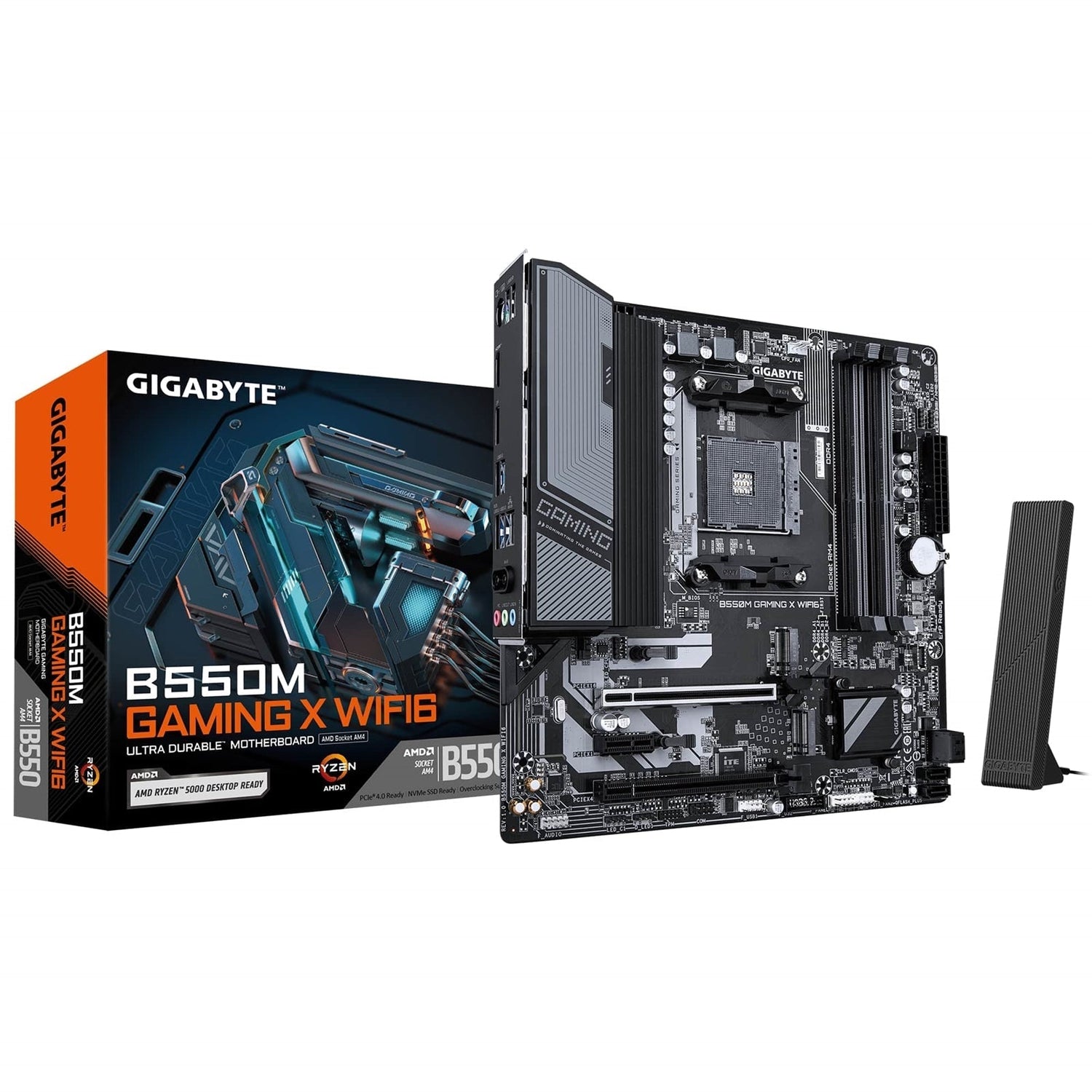

GIGABYTE B550M GAMING X WIFI6 Motherboard

The GIGABYTE B550M GAMING X WIFI6 is a Micro ATX AMD AM4 motherboard designed for AMD Ryzen 5000, 4000, and 3000 Series processors, offering high-speed connectivity, dual M.2 storage, and integrated Wi-Fi 6 for modern gaming and productivity builds.

Key Features

• AMD Socket AM4 Support
• Compatible with AMD Ryzen 5000 / 4000 / 3000 Series Processors
• Power Design
• Digital twin 5+3 phases VRM solution
• Memory
• Dual Channel DDR with 4 x DIMM slots
• Integrated Wi-Fi 6
• Realtek Wi-Fi 6 RTL8851BE wireless module
• WIFI EZ-Plug design for quick and easy Wi-Fi antenna installation
• User-Friendly Hardware Design
• EZ-Latch: PCIe slots with Quick Release Design
• Ultra-Fast Storage
• 2 x M.2 slots, including PCIe 4.0 support
• Efficient Cooling
• VRM Thermal Armor Advanced
• Fast Networking
• Realtek GbE LAN & Wi-Fi 6
• Extended Display Connectivity
• HDMI and DisplayPort outputs
• Reinforced PCIe Slot
• PCIe UD Slot: PCIe 4.0 x16 slot with 10x strength for graphics card and improved heat dissipation effect

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage Interface

USB

CPU:

• 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

• 1 x USB Type-C port with USB 3.2 Gen 1 support (via internal header)
• 2 x USB 3.2 Gen 1 ports (via internal header)
• 4 x USB 2.0/1.1 ports
• 2 x ports on the back panel
• 2 x ports via internal header

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port (actual support may vary by CPU)
• 1 x DisplayPort (actual support may vary by CPU)
• 4 x USB 3.2 Gen 1 ports
• 1 x RJ-45 LAN port
• 2 x antenna connectors
• 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control (support depends on installed fan)

BIOS

• 1 x 128 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center
• Available applications may vary by motherboard model and specifications
• Included APP Center utilities:
• @BIOS
• EasyTune
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor
