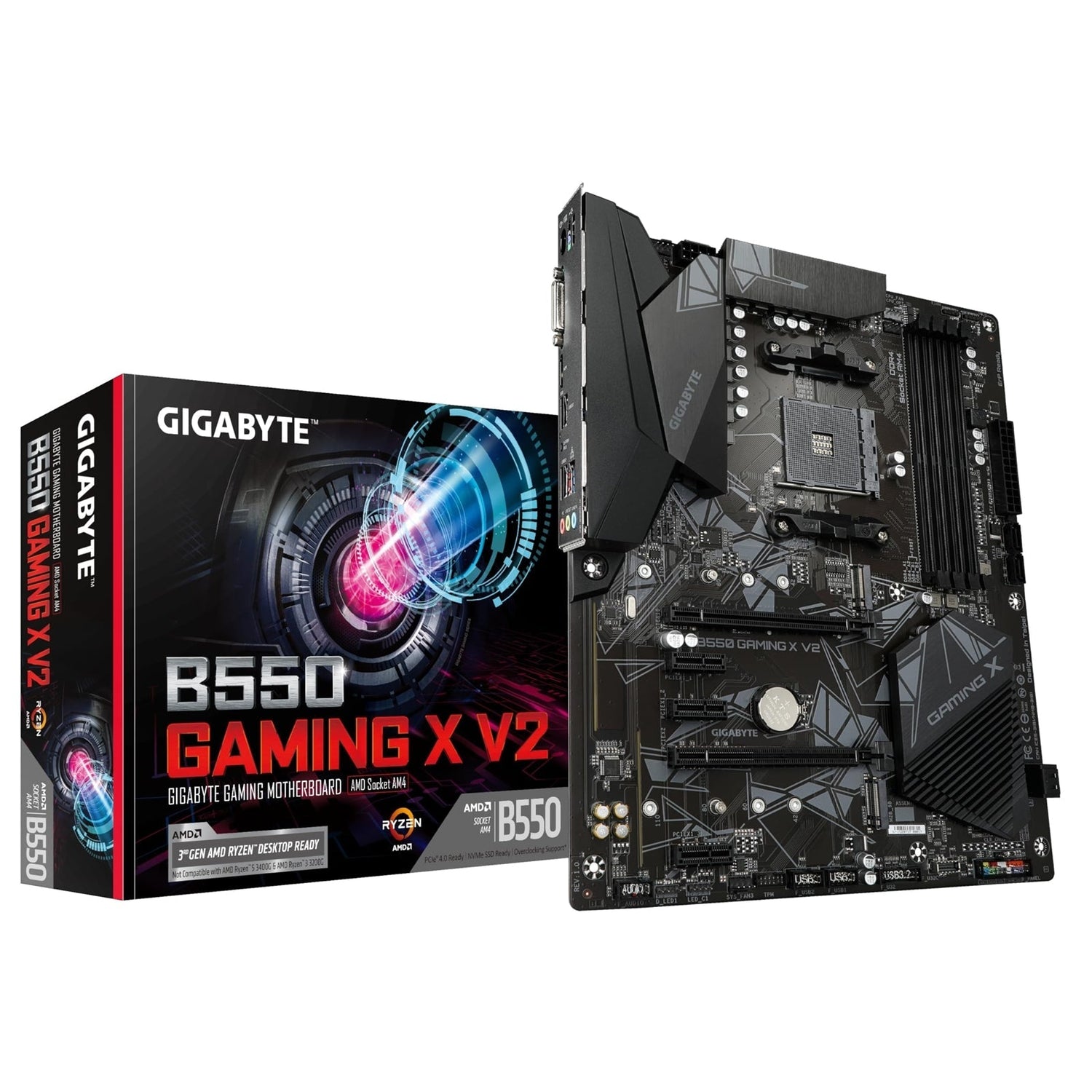

Gigabyte B550 GAMING X V2 AMD AM4 Socket Motherboard, ATX, 4x DDR4 Slots, 2x M.2 Sockets, Fitted I/O Shield, GbE LAN, 1x DVI-D / 1x HDMI Port

GIGABYTE B550 ATX Motherboard for 3rd Gen AMD Ryzen

Powerful, feature-rich AMD B550 motherboard designed to support 3rd Generation AMD Ryzen processors and 3rd Generation AMD Ryzen with Radeon Graphics processors, with advanced power delivery, high-speed storage, and gaming-focused networking and audio.

Key Features

• Supports 3rd Gen AMD Ryzen Processors
• AMD Socket AM4
• 3rd Generation AMD Ryzen processors

• 3rd Generation AMD Ryzen with Radeon Graphics processors

• 10+3 Phases Pure Digital VRM Solution

• Pure digital PWM design
• Low RDS(on) MOSFETs
• Designed to deliver precise, stable power to power-hungry and energy-sensitive components

• Enhanced system performance and hardware scalability

• High-Speed Dual Channel DDR4 Memory

• 4 x DIMM slots, up to 128 GB system memory
• Supports ECC and Non-ECC unbuffered DDR4
• Dual channel memory architecture

• Support for Extreme Memory Profile (XMP) memory modules

• Ultra Durable PCIe 4.0 Ready x16 Slot

• 1 x PCIe x16 slot (CPU)

  • 3rd Gen AMD Ryzen: PCIe 4.0 x16 mode
  • 3rd Gen AMD Ryzen with Radeon Graphics: PCIe 3.0 x16 mode

• Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Storage

• Dual NVMe PCIe 4.0*/3.0 M.2 connectors
• NVMe mode or SATA mode support for M.2 SSD devices
• Up to 64 Gb/s data transfer speed
• Ideal for high-speed storage and RAID configurations

• Actual support may vary by CPU.

• Exclusive Realtek 8118 Gaming LAN

• High-speed Gigabit LAN
• Automatic bandwidth allocation for gaming and applications

• Optimized for fast, smooth online experiences

• Multi-Display Support via HDMI & DVI-D

• HDMI 2.1, backward compatible with HDMI 2.0/1.4
• Up to 4K/60P, 21:9 ratio, HDR and HDCP 2.3 support
• 1 x DVI-D port (max 1920x1200@60 Hz)*

• DVI-D does not support D-Sub by adapter.

• Smart Fan 5 Cooling Control

• Multiple temperature sensors
• Hybrid fan headers with PWM and Voltage mode support
• FAN STOP function

• Designed to keep systems cool and stable and to be liquid cooling friendly

• RGB FUSION 2.0 Lighting

• Supports onboard RGB and external RGB/Addressable LED strips*
• Supports external 5V Addressable LED strips, up to 300 LEDs
• Multiple patterns and speed settings

• LED strips not included.

• High-Quality Audio Design

• High-end audio capacitors
• Audio Noise Guard to isolate sensitive analog components

• Delivers high resolution, high fidelity sound with realistic effects

• Q-Flash Plus

• Update BIOS without installing CPU, memory, or graphics card

• Durability Enhancements

• Anti-sulfur resistors design

Specifications

CPU

Memory

Onboard Graphics*

*Graphics support requires CPU with integrated graphics.

Audio

*For 7.1-channel audio, configure via audio software (see GIGABYTE website).

LAN

Expansion Slots

*For best performance, install a single graphics card in PCIEX16.

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x DVI-D port
• 1 x HDMI port
• 3 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x Q-Flash Plus button
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller & Monitoring

• iTE I/O Controller chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control (dependent on installed cooler)

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• APP Center support
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Q-Flash Plus support
• Q-Flash support
• Xpress Install support

Bundled Software

• Norton Internet Security (OEM version)
• Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System Support

• Windows 10 64-bit

Form Factor
