Gigabyte A620M H Ultra Durable AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

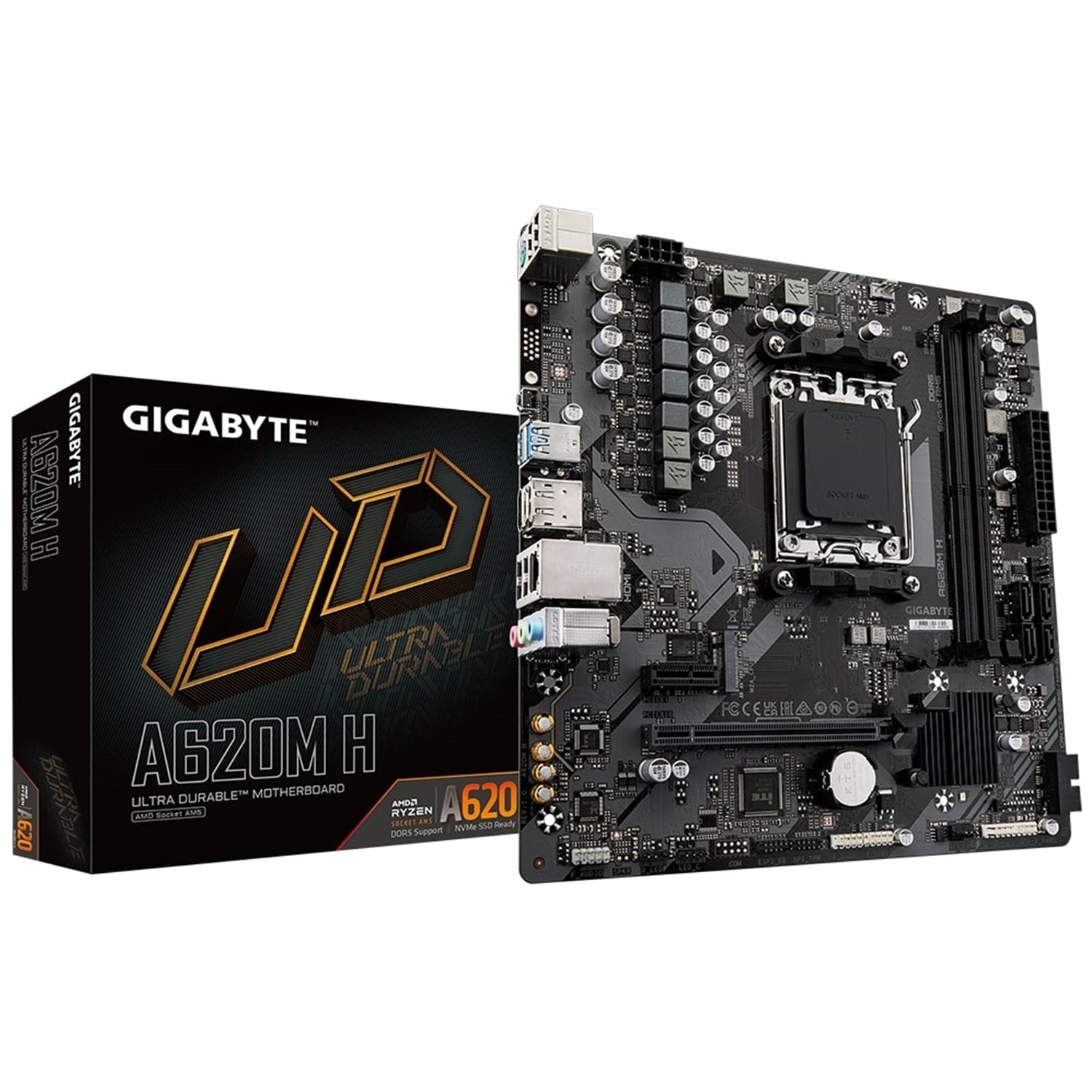

GIGABYTE A620M H (rev. 1.0) Micro ATX Motherboard

Key Features

• AMD Socket AM5

• Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors

• Power Design & Performance

• 5+2+2 phases digital VRM solution
• Low RDS(on) MOSFETs
• Digital PWM design for precise power delivery

• Designed to support AMD’s new generation CPUs for enhanced performance and hardware scalability

• Memory & Overclocking

• Dual Channel DDR5 with 2x SMD DIMM slots
• Supports AMD EXPO™ & Intel® XMP memory modules
• DDR5 Auto Booster: boosts native DDR5 frequency to 5000 MHz under heavy load with a single click
• EXPO and XMP dual support for maximal compatibility
• AMD EXPO and Intel XMP 3.0 User Profile:
  • Define and create custom SPD profiles
  • One user-defined profile can be saved and loaded locally or from external storage
  • Quick memory performance simulation based on user-defined clock and timing
  • Profile save/load to share memory parameters online
• DDR5 EXPO & XMP overclocking up to 6400 and beyond (with compatible EXPO/XMP memory modules and enabled BIOS function)

• Shielded memory routing with inner-layer PCB and large ground layer to reduce external interference

• Storage & Expansion

• SuperSpeed storage with PCIe 4.0 x4 M.2 connector

• PCIe 4.0 ready for next-gen devices with low impedance PCB for high signal integrity

• Connectivity & Networking

• DisplayPort and HDMI video outputs

• Realtek GbE LAN with bandwidth management for improved latency and responsiveness in crowded LAN environments

• Cooling & Control – Smart Fan 6

• Multiple temperature sensors
• Hybrid fan headers with FAN STOP
• High current support: up to 24W (12V x 2A) per fan header with over-current protection
• Precision fan curve control with multiple temperature/fan speed points
• Dual curve modes (Slope / Stair) for different usage scenarios

• Fan Stop: complete fan halt below user-defined temperature

• Audio

• High-end audio capacitors for high-resolution, high-fidelity sound

• Audio Noise Guard to separate sensitive analog audio components from PCB noise

• Ease of Use & DIY-Friendly

• PCIe EZ-Latch: quick-release design for the PCIe x16 slot to easily remove graphics cards
• Q-Flash Plus: update BIOS without installing CPU, memory, or graphics card
  • Save BIOS file (renamed to gigabyte.bin) to USB drive
  • Press dedicated Q-Flash Plus button to flash BIOS

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
• 1 x Clear CMOS jumper

Back Panel Connectors

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash Plus
• Support for Q-Flash

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor
