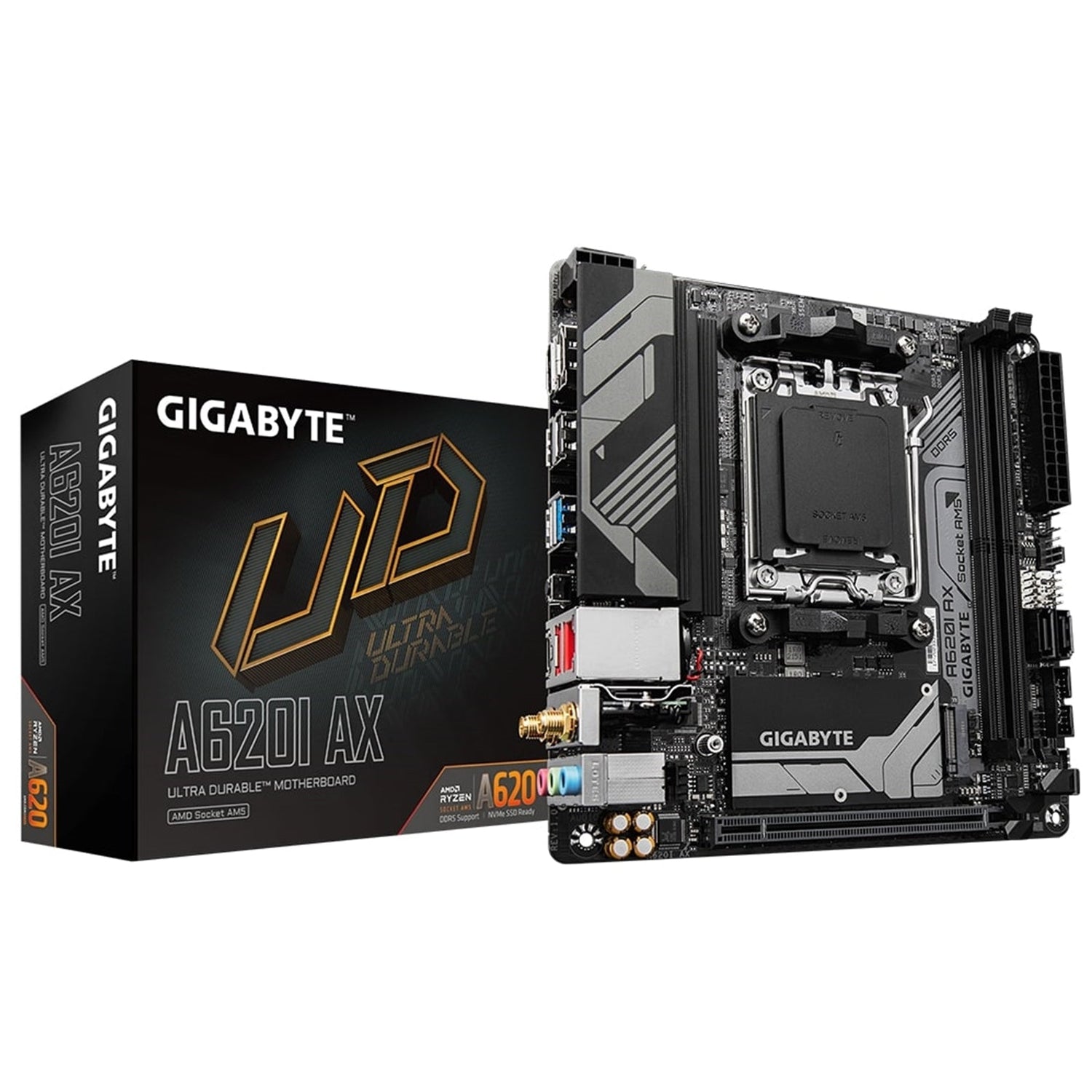

Gigabyte A620I AX (rev. 1.0) AMD AM5 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 1x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1 x DisplayPort / 1x HDMI Port

GIGABYTE A620 Mini-ITX Motherboard – AMD AM5, DDR5, Wi-Fi 6E, 2.5GbE

Key Features

• AMD Socket AM5

• Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

• Unparalleled Performance

• 5+2+1 phases digital VRM solution

• Dual Channel DDR5 Memory

• 2 x SMD DDR5 DIMM slots

• AMD EXPO and Intel XMP memory module support

• SuperSpeed Storage

• PCIe 4.0 x4 M.2 connector

• EZ-Latch PCIe

• PCIe x16 slot with quick release design for easier graphics card removal

• Fast Networking

• Wi-Fi 6E (802.11ax)

• 2.5GbE LAN

• Extended Display Connectivity

• DisplayPort

• HDMI

• Smart Fan 6

• Multiple temperature sensors

• Hybrid fan headers with FAN STOP

• Q-Flash Plus

• Update BIOS without installing CPU, memory, or graphics card

• Durable Performance

• GIGABYTE Ultra Durable design with optimal components for long-lasting performance

• Future Connectivity

• High-speed networking and storage support with next‑generation interfaces

Advanced Networking

802.11ax Wi-Fi 6E

• Latest 802.11ax Wi-Fi 6E with dedicated 6 GHz band
• Enables gigabit-level wireless performance
• Aims to provide smooth video streaming, improved gaming experience, fewer dropped connections, and speeds up to 2.4 Gbps
• Bluetooth 5 offers up to 4x range over BT 4.2 with faster transmission

2.5GbE LAN

• Onboard Realtek 2.5GbE LAN
• Up to 2.5 GbE network connectivity (2X faster than 1GbE, based on specification comparison)
• Supports Multi-Gig (10/100/1000/2500 Mbps) RJ-45 Ethernet

PCIe 4.0 Hardware Design

• Ready for PCIe 4.0 devices, designed to deliver up to twice the bandwidth of PCIe 3.0
• Low-impedance PCB used to help maintain signal integrity and performance

Hi-Fi Audio

• High-End Audio Capacitors

• Help deliver high-resolution, high-fidelity sound for realistic audio effects

• Audio Noise Guard

• PCB-level separation of sensitive analog audio components from noise sources

Easy & User-Friendly Design

• EZ-Latch

• Simple PCIe slot latch for quick graphics card removal

• Q-Flash Plus

• Update BIOS without CPU, memory, or graphics card installed

• Download and save BIOS file (renamed to gigabyte.bin) to USB drive, then press Q-Flash Plus button to flash

• Smart Fan 6

• Multiple cooling features for performance, low noise, and temperature control
• Multiple PWM/DC fan and pump headers

• Custom fan curves based on different temperature sensors via an intuitive interface

• GIGABYTE Control Center (GCC)

• Unified software platform for supported GIGABYTE products
• Intuitive interface to control essential motherboard functions

Specifications

CPU

Chipset

Memory

CPU and memory configuration may affect supported types, speeds, and module count (see Memory Support List on GIGABYTE’s website).

Onboard Graphics

Graphics specifications may vary depending on CPU support.

Audio

LAN

Wireless Communication

Expansion Slots

PCIEX16 slot supports either a graphics card or an NVMe SSD.

Storage

USB

CPU-based:

• 1 x USB Type-C (back panel), USB 3.2 Gen 1
• 1 x USB 3.2 Gen 2 Type-A (red, back panel)
• 1 x USB 2.0/1.1 (back panel)

Chipset-based:

• 1 x USB Type-C (internal header), USB 3.2 Gen 1
• 3 x USB 3.2 Gen 1 (1 x back panel, 2 x internal via header)
• 4 x USB 2.0/1.1 (2 x back panel, 2 x internal via header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB Type-C header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Back Panel Connectors

• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 2 Type-A (red)
• 1 x USB 3.2 Gen 1 Type-A
• 3 x USB 2.0/1.1 ports
• 1 x Q-Flash Plus button
• 1 x RJ-45 (2.5GbE LAN)
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks

I/O Controller

• iTE I/O Controller chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (support depends on installed fan)

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications and functions vary by model and specifications
• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• Mini-ITX
• Dimensions: 17.0 cm x 17.0 cm
