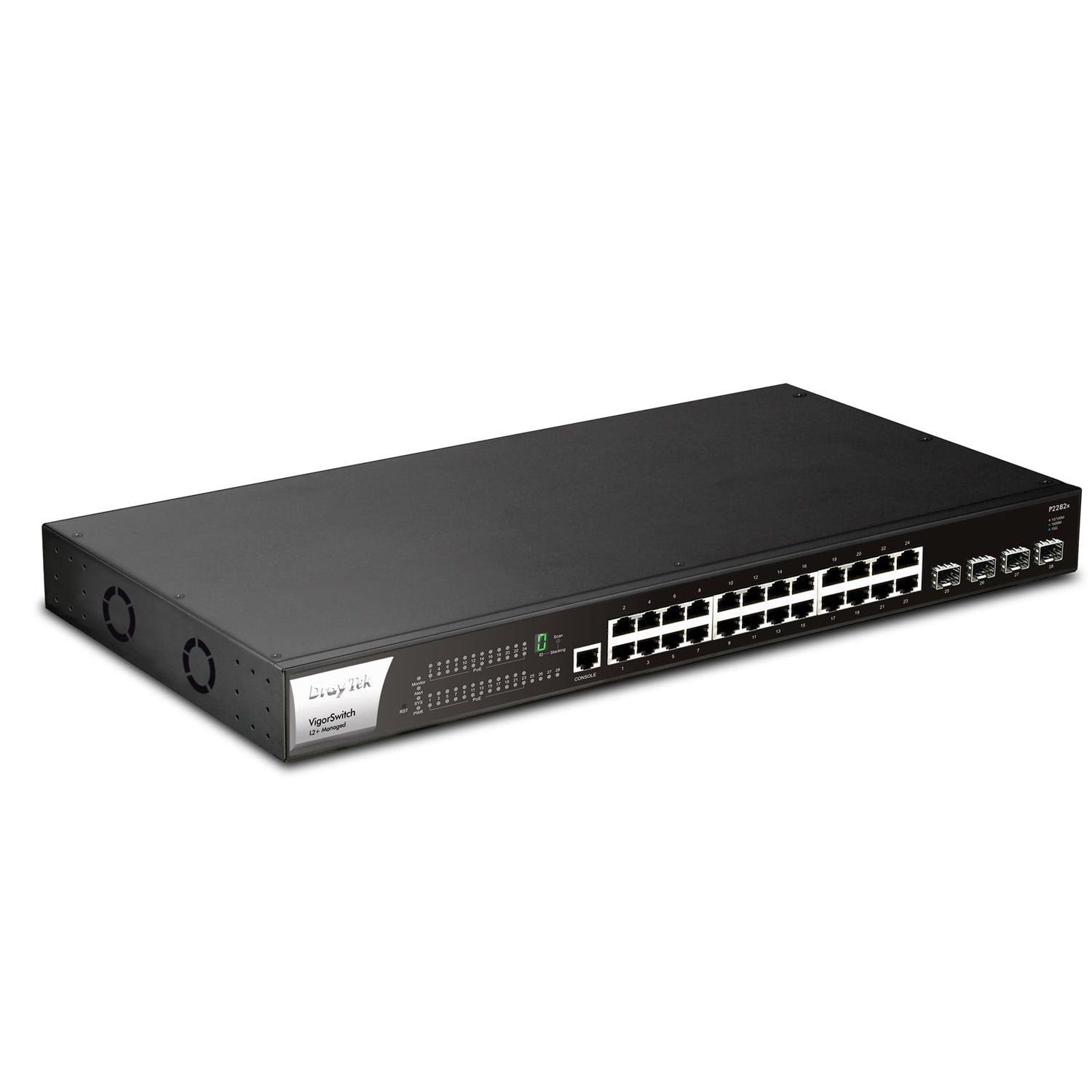

DrayTek VSP2282X-K VigorSwitch P2282x 24 Port POE Fully Managed Layer 2+ Switch with 4x 10GbE SFP Ports

DrayTek VigorSwitch P2282x Layer 2+ Managed 10 Gbps Switch

The DrayTek VigorSwitch P2282x is a Layer 2+ managed switch designed for high‑performance, flexible, and resilient network deployments. It combines 10 Gbps uplink capability, PoE+ support, and advanced Layer 3 features to enhance LAN efficiency and reliability.

Key Features

High-Performance Connectivity

• Layer 2+ managed 10 Gbps switch
• 24 × Gigabit Ethernet LAN ports
• 4 × SFP+ 10 Gbps fiber links for uplink/downlink

Dual Power Input for Higher Reliability

• Fixed AC power input
• Additional DC power input as an alternate power source
• Helps ensure uninterrupted operation and protects connected devices in the event of AC power failure
• With a 12/54V DC backup power supply, VigorSwitch P2282x can help protect critical data from connected PD devices and maintain uninterrupted network connectivity

PoE+ for IoT and Edge Devices

• 24 × PoE+ ports
• 400W total PoE power budget
• Suitable for integrating more IoT applications, including:
• LED lighting
• POS (Point of Sale) computers
• Motion sensors
• IP cameras

Advanced Layer 3 Functions

The VigorSwitch P2282x supports advanced Layer 3 features, including:

• DHCP Server

• Assigns dynamic IP addresses for up to 8 VLANs

• VLAN Routing

• Supports up to 512 routes
• Wire-speed VLAN routing to route inter-VLAN traffic directly on the switch and offload the router

These capabilities enhance network efficiency and help ensure uninterrupted LAN connectivity, even if the gateway/router is offline—ideal for networks with increasing traffic demands.

Intelligent PoE & Monitoring

PoE (Power over Ethernet)

• Deliver power and data over a single Ethernet cable
• PoE Schedule to turn PoE devices on or off periodically

Ping Device Check

• Continuously monitor selected devices via ping
• If ping times out:
• Power cycle the port (if PoE is enabled), and/or
• Send email alert

Traffic Optimization & Stability

Wire-Speed VLAN Routing

• Improve overall network performance by routing inter-VLAN traffic on the VigorSwitch P2282x instead of the router.

Auto Surveillance & Voice VLAN

• Automatically recognize traffic from IP cameras and IP phones
• Add CoS tags for QoS prioritization of surveillance and voice traffic

IP Conflict Prevention

• Improve network stability by avoiding IP conflicts caused by misconfigured or malicious hosts

QoS (Quality of Service)

• Prioritize critical traffic using:
• CoS tags
• DSCP
• IP Precedence

Enhancing LAN Sustainability and Efficiency

In large LAN environments, much of the traffic stays within the local network—for example:

• IP cameras storing video to NVR
• IP phones registering to PBX
• Clients accessing file servers

As a Layer 2+ switch with DHCP server and VLAN routing functionalities, the VigorSwitch P2282x is ideally positioned as the first device handling traffic before the router. It helps:

• Share the load of the router
• Keep the LAN operating continuously, even when the router is offline
