DrayTek VC410AX-K Vigor C410ax 4G Mobile Broadband Wireless AX3000 SOHO Ethernet Router

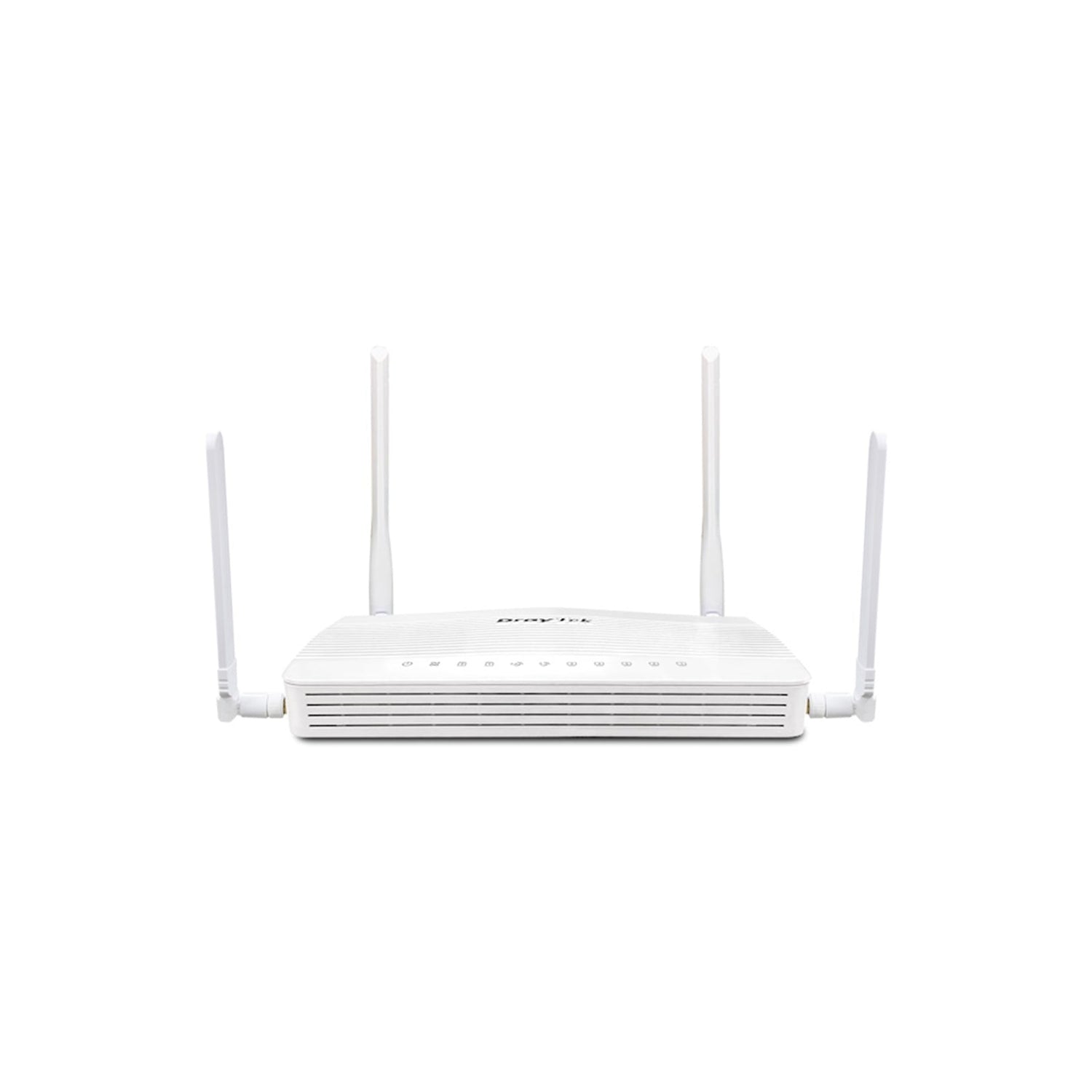

DrayTek Vigor C410ax 4G Wi‑Fi 6 Branch Office Gateway Router

The DrayTek Vigor C410ax is a low-cost, multi-WAN firewall VPN router designed as an ideal 4G networking gateway for branch and remote offices. It combines a built-in 4G LTE modem, Wi‑Fi 6 wireless, and multiple Ethernet WAN options with advanced security and central management support.

Key Features

• Multi-WAN Router with Failover
• 4G built-in modem with dual SIM slots for second backup telco
• 1 x Gigabit Ethernet WAN (RJ-45)
• 1 x Gigabit Ethernet WAN (RJ-45) / LAN switchable
• Wireless WAN backup (ax models) – can fall back to wireless hotspots (e.g. phone tethering, public hotspots)

• Automatic failover between WAN interfaces

• High-Performance Firewall & VPN

• Up to 940 Mbps firewall throughput
• Up to 370 Mbps IPsec VPN throughput
• Up to 4 LAN-to-LAN & Remote Teleworker VPN tunnels
• SPI Firewall and extensive Content Filtering
• VPN client/server with multiple protocol support

• Quality of Service (QoS) controls

• Wi‑Fi 6 AX3000 Dual-Band Wireless

• AX3000 Wi‑Fi 6 dual-band wireless LAN
• Wi‑Fi 6 module can provide Internet access and support local wireless LAN simultaneously

• Mesh Root support with DrayTek VigorAP mesh nodes

• Advanced LAN & VLAN Control

• 4 Gigabit RJ-45 LAN ports
• 4 LAN subnets with VLANs (port-based / 802.1q)

• Up to 8 VLANs

• Central Management & Service Options

• Compatible with VigorACS central management platform
• Optional VigorCare extended warranty available
• Latest DrayTek DrayOS 5 for enhanced security-focused capabilities

Technical Specification (UK Hardware Spec.)

Physical Interfaces

Performance

WAN Interfaces & Connectivity

• WAN Ports
• WAN1: Gigabit Ethernet
• WAN2: Gigabit Ethernet (LAN switchable)
• WAN3: 2.4GHz Wireless WAN
• WAN4: 5GHz Wireless WAN

• WAN5: Integrated 5G/4G modem

• Internet Connection Features

• Hardware Acceleration (Always On)
• 802.1p/q multi-VLAN tagging
• Multi-VLAN/PVC
• 2.4GHz or 5GHz Wireless WAN
• WAN Active on Demand: Link Failure, Traffic Threshold
• Connection Detection: ARP Detect, Ping Detect
• WAN Data Budget per WAN
• Dynamic DNS

• DrayDDNS with automated Let’s Encrypt certificates

• IPv4 Connection Types

• PPPoE, DHCP, Static IP

• IPv6 Connection Types

• Ethernet: PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel

Wireless Features (Wi‑Fi 6 AX3000)

Wireless Security

• OWE
• WEP
• WPA
• WPA2/WPA
• WPA3
• Pre-Shared Key authentication
• Enterprise 802.1x authentication
• Identity Access Policies (MAC address, Login, Guest Hotspot)

Antenna Specifications

Wireless LAN Antennas

• 2 x External Dipole
• 5GHz Gain: 2.8 dBi
• 2.4GHz Gain: 2.1 dBi
• RP-SMA fitting antenna connectors

5G/4G Cellular Antennas

• 2 x External Dipole
• 2 x Internal PIFA
• Gain: 4 dBi
• SMA fitting antenna connectors

Integrated 4G Modem Features

• Dual-SIM failover
• 4G LTE Category 6 modem
• Unlocked to any network (EE, 3, O2, Vodafone, Eircom)
• 4G max data rates:
• 300 Mbps downlink

• 50 Mbps uplink

• Supported Bands

• 4G LTE (FDD) Bands: 1, 3, 7, 8, 20, 28
• 4G LTE (TDD) Bands: 38, 40

• 3G (WCDMA) Bands: 1, 8

• 2 x 4G external antennas included

• Per-SIM-card WAN data budget
• 2 x Nano-size SIM-card slots
• Removable SIM slot cover
• SMS Inbox – send & receive SMS text messages

Firewall & Content Filtering

• IP-based firewall policy
• DoS attack defence
• Spoofing defence

Content Filtering

• Application Content Filter
• URL Content Filter
• DNS Keyword Filter

Web Features

• Web Category Filter

NAT Features

• NAT Port Redirection
• Open Ports
• Port Triggering
• DMZ Host
• UPnP
• ALG: SIP, RTSP

LAN Management

• 802.1q tag-based & port-based VLAN
• Up to 4 LAN subnets (NAT or Routing mode selectable per LAN interface)
• Up to 8 VLANs

DHCP Server

• Multiple IP subnet support
• Custom DHCP options
• Bind-IP-to-MAC
• DHCP Pool: up to 253 addresses for LANs 1–4
• DHCP Relay per LAN

Additional LAN Features

• Wired 802.1x port authentication
• Local DNS server
• Conditional DNS forwarding
• Hotspot Web Portal
• Hotspot Authentication: Click-Through, External Portal Server

Networking Features

• Policy-based Routing: by protocol, IP address, port
• DNS Security (DNSSEC)
• Local RADIUS server
• Multicast: IGMP Proxy, IGMP Snooping & Fast Leave

Routing (IPv4 & IPv6)

• Static Routing
• Inter-VLAN Routing
• RIP v1/v2/ng
• BGP
• OSPF

VPN Features

• Up to 4 active VPN tunnels
• Up to 370 Mb/s IPsec
• LAN-to-LAN – Dial-In VPN Server & Dial-Out VPN Client
• Teleworker-to-LAN – Dial-In VPN Server

User Authentication

• Local, RADIUS, TACACS+, mOTP, TOTP

Key Exchange & Security

• IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
• Encryption: DES, 3DES, AES (128/192/256)
• Authentication: SHA-256, SHA-1
• Dead Peer Detection (DPD)
• IPsec NAT-Traversal (NAT-T)

Supported VPN Protocols

• IPsec IKEv1, IKEv2, IKEv2 EAP
• IPsec-XAuth
• OpenVPN
• WireGuard

Bandwidth Management

• IP-based bandwidth limit
• IP-based session limit

QoS (Quality of Service)

• 4 priority queues
• App QoS
• VoIP prioritisation

Management & Monitoring

• Local Services: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
• Config file export & import
• Firmware upgrade via TFTP, HTTP, TR-069

Access Control & Monitoring

• Access List
• Brute Force Protection
• Syslog
• SMS & Email notification alerts
• SNMP v1, v2c, v3

Central Management

• Managed by VigorACS

Router-Based Central Management Features

• AP Management: up to 20 VigorAP access points
• Switch Management: up to 5 VigorSwitch network switches
• DrayTek Mesh: up to 7 VigorAP access points^

Operating Requirements

Physical Specifications

Box Contents

• Vigor C410ax series router
• Quick Start Guide
• Cat-5e RJ-45 network cable
• 2 x detachable wireless LAN antennas
• 2 x detachable cellular antennas
• DC 12V power supply with UK plug

Warranty & Support

• Standard Warranty: Two (2) year RTB
• Software security updates: 5 years after the EOL notification
  (applies to products sold in the UK)

VigorCare Extended Warranty Options

• VigorCare A3 3 Year Subscription: VCARE-A3
• VigorCare A5 5 Year Subscription: VCARE-A5
