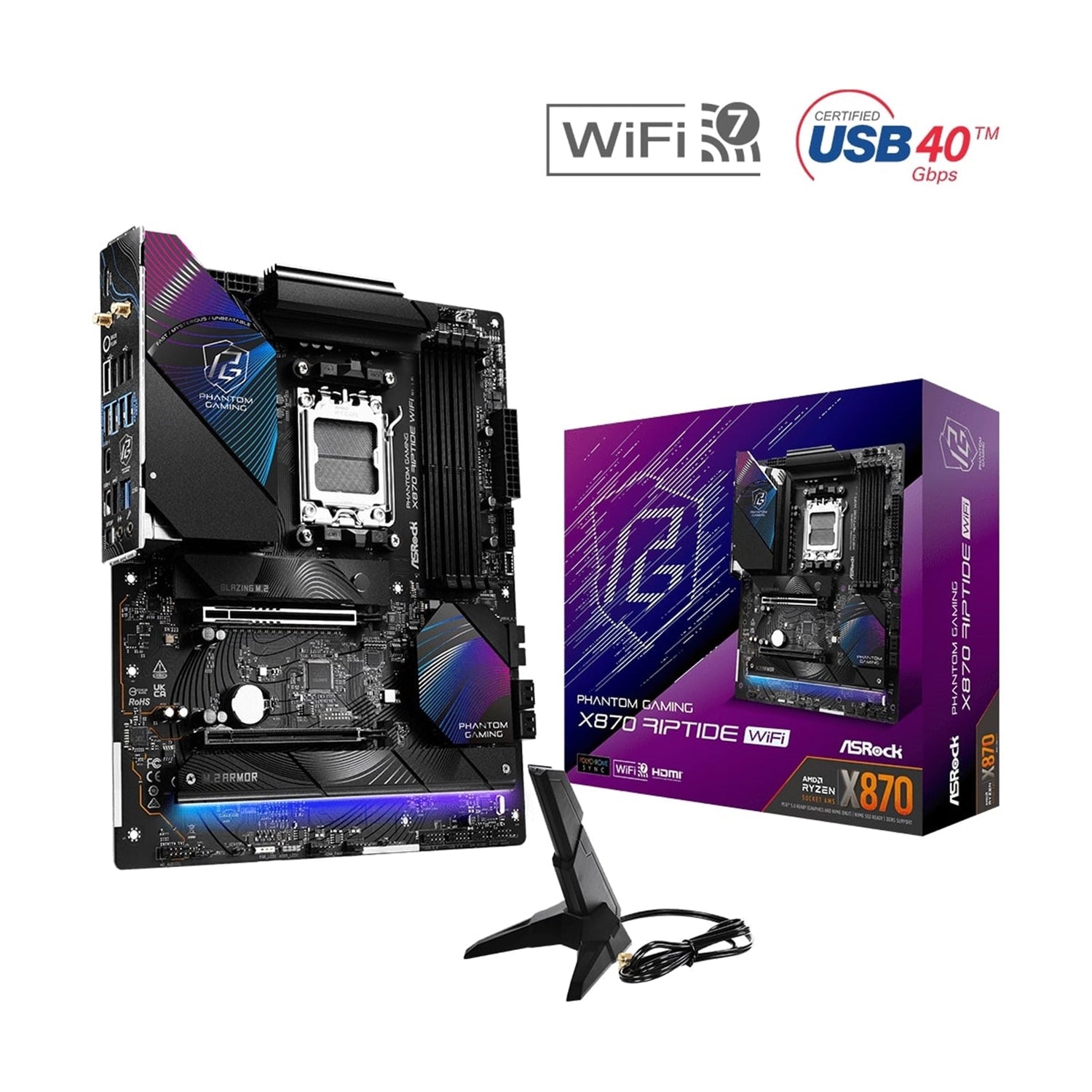

ASRock X870 RIPTIDE WIFI AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

Phantom Gaming X870 Riptide WiFi Motherboard

Built for gamers, designed for stability, and ready for next‑gen performance, the Phantom Gaming X870 Riptide WiFi delivers a powerful, immersive gaming foundation. Inspired by the ocean’s riptide—calm on the surface with immense strength beneath—it combines robust hardware design with advanced connectivity and tuning features.

Key Highlights

• AMD Socket AM5 – Supports Ryzen 9000, 8000 and 7000 Series processors
• AMD X870 Chipset – Optimized for modern gaming and productivity
• PCIe Gen5 Support – For graphics and M.2 storage
• Dual Channel DDR5 – High-speed memory with XMP & EXPO support
• Wi-Fi 7 (802.11be) & Killer 2.5G LAN – High-bandwidth, low-latency networking
• USB4 Type-C (40 Gb/s) – Ultra-fast, versatile connectivity
• 14+2+1 Power Phase Design & Dr.MOS – Stable power and enhanced overclocking
• 8-Layer PCB & Aluminum Heatsinks – Improved thermals and efficiency

Rock-Solid Power & Durability

• 14+2+1 Power Phase Design
  Sturdy power delivery components provide smooth, reliable power to the CPU, supporting enhanced performance and overclocking with low temperatures.

• Dr.MOS Power Stages
  Integrated power stage solution optimized for synchronous buck applications. Compared to traditional discrete MOSFETs, it intelligently delivers higher current per phase for better thermal performance and efficiency.

• Exclusive 20K Black Capacitors (1000uF)

• Lifespan up to 20,000 hours

• Capacitance increased from 560uF to 1000uF

• Hi-Density Power Connectors
  Hi-Density CPU 8-pin and ATX 24-pin connectors withstand higher current than traditional connectors, promoting system stability and lowering fire risk under heavy overclocking.

• 8-Layer PCB
  Provides stable signal routing and efficient power delivery, lowering temperatures and improving energy efficiency—ideal for memory overclocking and supporting the latest DDR5 modules.

High-Performance Memory

• DDR5 XMP & EXPO Support
  Built with high-quality materials and a “stable and reliable” design concept, this motherboard supports Intel XMP and AMD EXPO profiles. Enthusiasts can easily boost DDR5 memory performance by enabling pre-tested profiles (XMP/EXPO-capable modules required).

Next-Generation Storage & Expansion

• PCIe Gen5 Blazing M.2
• Supports PCIe 5.0 standard
• Up to 128 GB/s transfer speed

• Ready for future ultra-fast SSDs

• Aluminum Heatsink Design
  Optimized heatsinks support efficient heat dissipation during intensive gaming or productivity workloads, helping maintain stability and long-term durability.

Advanced Networking for Gamers

• Killer Ethernet E3100 (2.5G LAN)
• 10/100/1000/2500 Mb/s
• Designed for competitive gamers and performance users

• Enhanced detection and prioritization for gaming and multimedia traffic

• Wi-Fi 7 (802.11be) Wireless

• Higher data throughput and lower latency
• Multi-link Operation (MLO) for simultaneous use of multiple bands/channels

• Improved speed, throughput, and reduced latency for smoother VR/AR and high-bandwidth applications

• New Wi-Fi Antenna Design
  Tailored for high-bandwidth, low-latency usage with a stable wireless connection.

• Bluetooth 5.4 & MU-MIMO Support

Ultra-Fast USB & Front Panel Connectivity

• USB4 Type-C Ports (40 Gb/s)
  USB4 delivers high speed and versatility via advanced USB Type-C connections for work and home, enabling up to 40 Gb/s data transfer.

• Lightning Gaming Ports
  Two USB 3.2 Gen1 Type-A ports sourced from different controllers for reduced jitter and latency when using high-speed mice and keyboards.

• Ultra USB Power

• Provides 5V from the +12V rail, reducing voltage drop under heavy load

• Helps prevent noise from other devices or RGB LEDs and enhances audio experience

• Front Panel USB 3.2 Gen2x2 Type-C Header

• Up to 20 Gb/s
• Reversible USB Type-C connector

Audio for Immersive Gaming

• 7.1 CH HD Audio (Realtek ALC4082)
• Content Protection
• Individual PCB layers for left/right channels
• Direct Drive Technology on front headphone port (supports up to 600 Ohm headsets)
• Nahimic Audio software support

VR-Ready Wireless Experience

• Enhanced VR Experience
  Wi-Fi 7’s higher throughput, lower latency, and Multi-link Operation provide smoother, real-time interaction for immersive VR/AR usage.

Detailed Specifications

Unique Features

• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Type-C Ports (40 Gb/s)
• 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
• ASRock Lightning Gaming Ports
• EZ Update
• BIOS Flashback Button
• ASRock Auto Driver Installer
• EZ Troubleshooter

Core Hardware

Memory

Graphics Output

Audio

LAN & Wireless

Expansion Slots

Storage

RAID Support
- RAID 0, RAID 1, RAID 10 for M.2 NVMe storage devices

USB Configuration

CPU-Driven Ports (Rear):
- 2 x USB4 Type-C
- 1 x USB 3.2 Gen2 Type-A (USB32_3)
- 1 x USB 3.2 Gen1 Type-A (USB32_1)

Chipset-Driven Ports:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear, USB32_4)
- 6 x USB 3.2 Gen1 Type-A (2 Rear: USB32_2 & USB32_5, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

Internal Connectors & Headers

• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin, Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin, Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX Power Connector (Hi-Density)
• 2 x 8-pin 12V CPU Power Connectors (Hi-Density)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (supports 4 x USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (supports 4 x USB 3.2 Gen1 ports)
• 1 x Front Panel USB 3.2 Gen2x2 Type-C Header (20 Gb/s)

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_1,2; USB32_1 & USB32_2 are Lightning Gaming Ports)
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s, USB32_3 & USB32_4; both support Ultra USB Power)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Software & UEFI

• Software
• ASRock Motherboard Utility (Phantom Gaming Tuning)
• Killer Control Center

• ASRock Polychrome SYNC

• UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Included Accessories

• 2 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 1 x ARGB Splitter Cable
• 1 x Thermistor Cable

With gaming-focused design, robust power delivery, PCIe Gen5 readiness, Wi-Fi 7, Killer 2.5G LAN, and USB4 connectivity, the Phantom Gaming X870 Riptide WiFi is crafted to deliver a fast, stable, and future-ready platform for modern AMD gaming builds.
