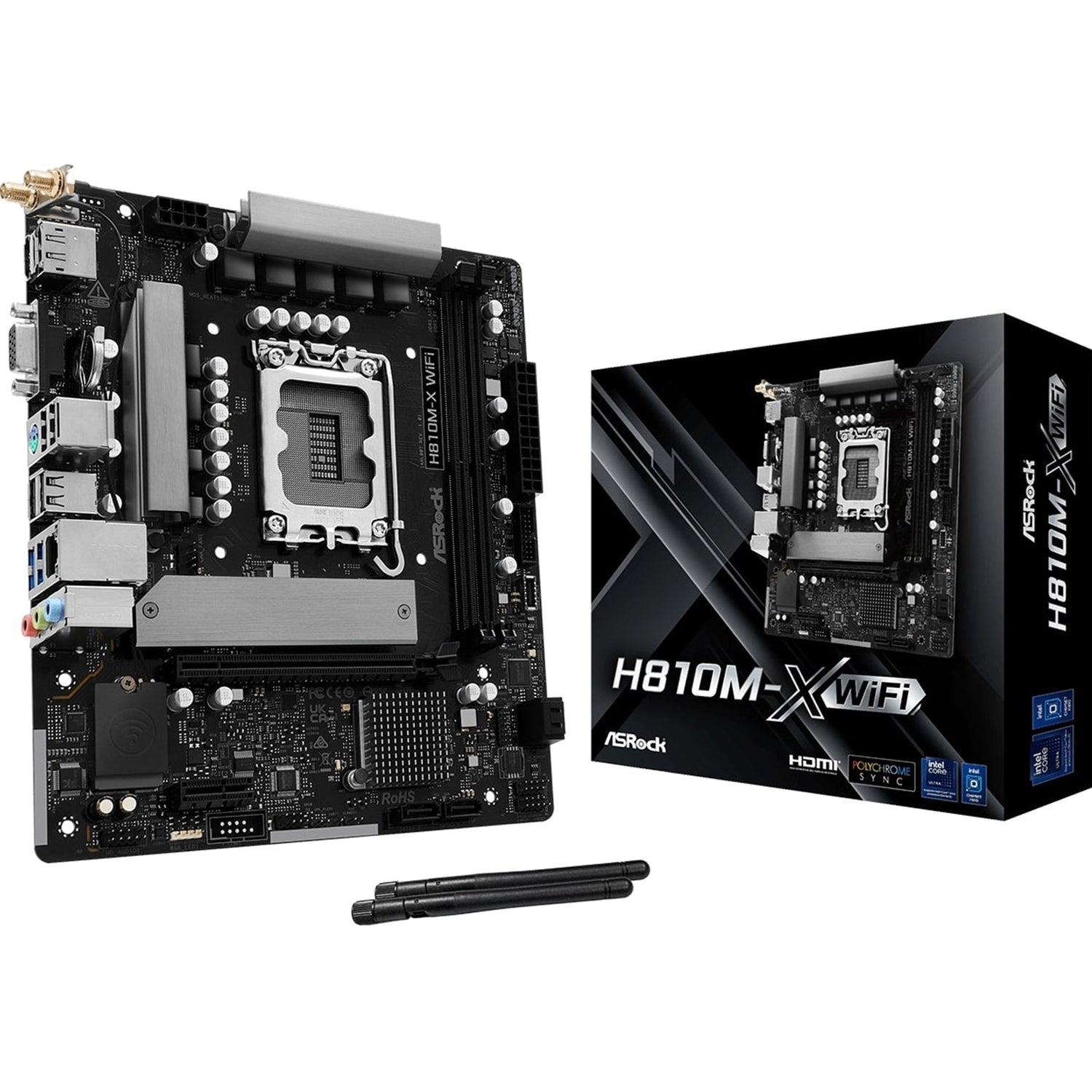

ASRock H810M-X WIFI Intel Socket 1851 Motherboard, 2x DDR5 DIMM Slots, 1x M.2 Socket, 2.5G LAN, WiFi 5, 1x HDMI Port / 1x DisplayPort

ASRock H810M-X WiFiX Series Motherboard

The ASRock H810M-X WiFiX Series motherboard delivers a compact, high-value platform that balances performance, versatility, and reliability for both professional workloads and everyday computing.

Key Features

High-Speed M.2 Storage

Hyper M.2 Gen4 x4

• Supports PCI Express 4.0 M.2 SSDs
• Capable of delivering up to twice the speed of previous 3rd generation solutions
• Designed for lightning-fast data transfer and responsive system performance

Intelligent Cooling Design

Aluminum Heatsink

• Optimized aluminum heatsink design for efficient heat dissipation
• Helps maintain stable thermal performance during demanding tasks such as gaming and productivity workloads
• Enhances overall system stability and durability

Dual Band 802.11ac WiFi & Bluetooth

• Integrated 802.11ac WiFi module (2.4 GHz / 5 GHz)
• Supports wireless networks and Bluetooth
• Designed to reduce weak signals and sluggish internet performance

Dragon 2.5 Gb/s LAN

• 2.5Gb/s LAN for high-performance networking
• Boosts bandwidth up to 2.5X compared to standard gigabit Ethernet
• Ideal for home networking, content creation, online gaming, and high-quality streaming
• Delivers faster connectivity for gaming, file transfers, and backups

Front USB 3.2 Gen1 Type-C

• Front-panel USB 3.2 Gen1 Type-C header
• Supports up to 5 Gbps data transfer rate
• Reversible USB Type-C design for convenient front-panel access

Polychrome RGB Lighting

• Onboard RGB headers and addressable RGB headers
• Connect compatible LED devices such as strips, CPU fans, coolers, and chassis lighting
• Supports synchronization with Polychrome RGB Sync-certified accessories
• Create unique, customizable lighting effects

SignalRGB Integration

• SignalRGB support for unified RGB device control
• Offers seamless customization, game-reactive effects, macro automation, and system monitoring
• Official partnership enables advanced lighting control and broad RGB compatibility

Triple Graphics Outputs

• Equipped with three commonly used display outputs:
• D-Sub
• DisplayPort
• HDMI

Easy Driver Setup

Auto Driver Installer

No optical drive required:

1. Install ASRock Auto Driver Installer
2. Update the drivers needed
3. Setup complete

ASRock pre-installs the LAN driver to simplify driver installation.

Specifications

Unique Features

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 6+1+1+1+1 Power Phase
• ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
• Ultrafast Connectivity: 2.5G LAN, 802.11ac Wi-Fi Module
• EZ Update
• ASRock Auto Driver Installer

CPU

Chipset

Memory

Graphics

Audio

LAN

Wireless LAN

Expansion Slots

Storage

USB

Connectors (Onboard)

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x Chassis Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (supports 2 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1 ports)
• 1 x Front Panel Type-C USB 3.2 Gen1 Header

Rear Panel I/O

• 2 x Antenna Ports
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 2 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line In / Front Speaker / Microphone

Software & UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Accessories

• 1 x I/O Shield
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5 GHz Antennas

Form Factor

Operating System

• Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
