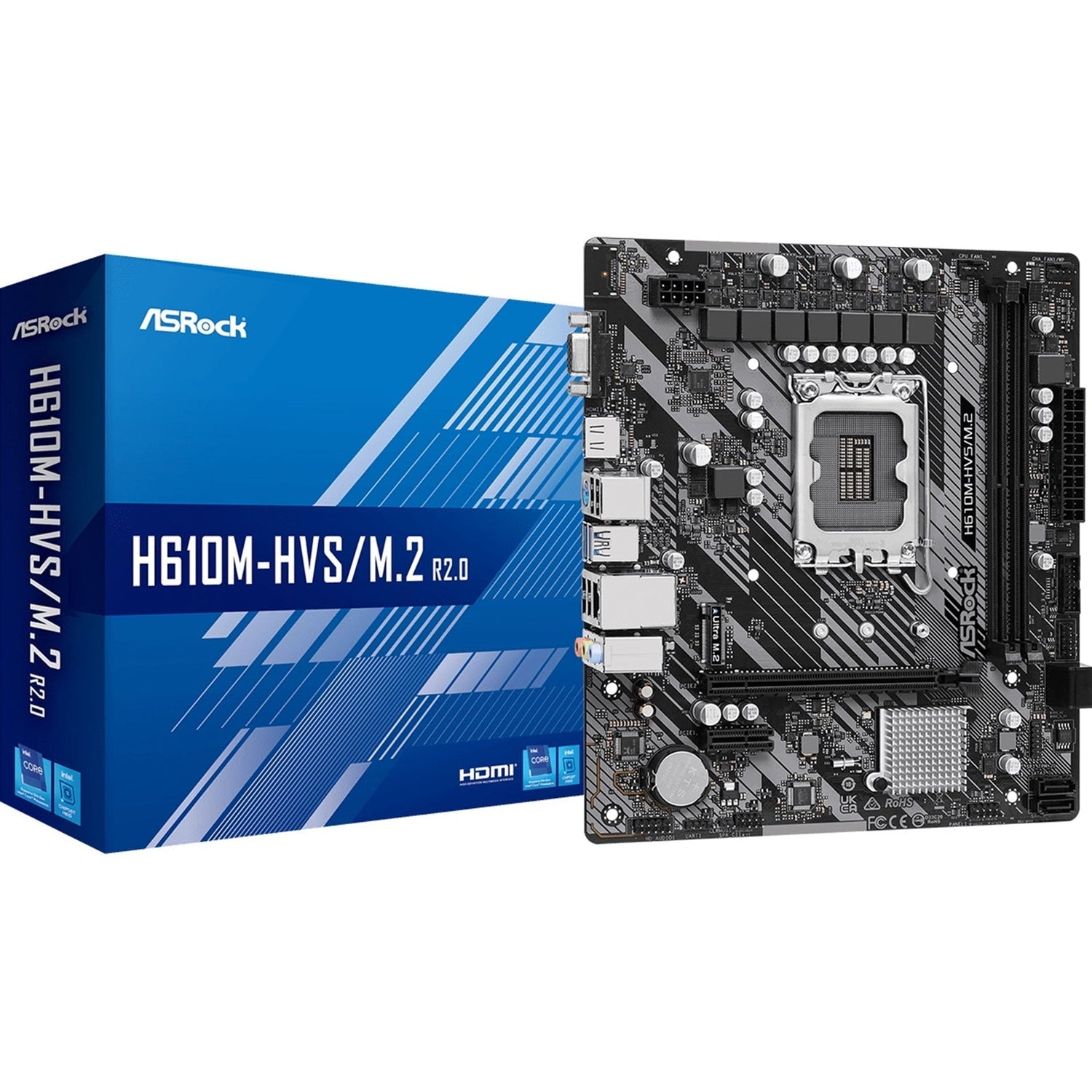

ASRock H610M-HVS/M.2 R2.0 Super Alloy Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

ASRock H610 Micro ATX Motherboard for 12th Gen Intel Core (LGA1700)

Optimize your next build with this ASRock H610 micro ATX motherboard, designed for 12th Gen Intel Core processors and built with ASRock Super Alloy components for enhanced durability and stability.

Key Features

• CPU Support
• Supports 12th Gen Intel Core Processors (LGA1700)
• 7 Phase Power Design
• Supports Intel Hybrid Technology

• Supports Intel Turbo Boost Max 3.0 Technology

• Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM slots
• Supports DDR4 non-ECC, un-buffered memory up to 3200
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max system memory capacity: 64GB

• Supports Intel XMP 2.0

• Graphics & Display

• Intel Xe Graphics Architecture (Gen 12)
• Dual graphics outputs: HDMI and D-Sub by independent display controllers
• HDMI 2.1 TMDS Compatible, up to 4K x 2K (4096x2160) @ 60Hz
• D-Sub up to 1920x1200 @ 60Hz

• Supports HDCP 2.3 (HDMI 2.1 TMDS Compatible port)

• Expansion Slots

• 1 x PCIe 4.0 x16 slot (CPU, x16 mode)

• 1 x PCIe 3.0 x1 slot (chipset)

• Storage

• 1 x Ultra M.2 Socket (PCIe Gen3 x4, 32 Gb/s, SATA3 support)
• Supports type 2242/2260/2280 M.2 PCIe Gen3 x4 (32 Gb/s)

• 4 x SATA3 6.0 Gb/s connectors

• Audio

• 7.1 CH HD Audio (Realtek ALC897/887 Codec)

• Supports surge protection

• Networking

• Realtek PCIE x1 Gigabit LAN (RTL8111H, 10/100/1000 Mb/s)
• Wake-On-LAN support
• Lightning/ESD Protection
• Energy Efficient Ethernet 802.3az

• PXE support

• USB Connectivity

• 4 x USB 3.2 Gen1 (2 rear, 2 via header)
• 6 x USB 2.0 (4 rear, 2 via header)
• All USB ports with ESD Protection

ASRock Super Alloy & Power Design

• Digi Power
  Next generation digital PWM design delivers smoother, more efficient CPU Vcore voltage, enhancing stability and motherboard lifespan.

• Premium Power Choke
  Improves saturation current up to three times compared to traditional chokes, providing stronger and more stable Vcore voltage.

• Sapphire Black PCB & High Density Glass Fabric PCB
  Pure black PCB for a solid, premium look, with High Density Glass Fabric PCB design as part of ASRock Super Alloy.

• Full Spike Protection
  Integrated protections for USB, audio, and LAN ports to help prevent damage from unexpected voltage spikes.

High-Speed Storage: Ultra M.2

• Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
• PCIe Gen3 x4 interface with data transfer speeds up to 32 Gb/s
• Supports SATA3 6 Gb/s M.2 modules

Dual Graphics Outputs & 4K HDMI

• Dual Outputs

• D-Sub + HDMI combo for flexible display options

• HDMI 4K @ 60Hz

• Supports the latest HDMI 4K 60Hz specification for smoother motion and clearer detail

Specifications

Core Specifications

Memory

Graphics

Audio

LAN

Expansion Slots

Storage

Connectors (Onboard Headers)

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis/Water Pump Fan Connector (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (supports 2 x USB 2.0, ESD Protection)
• 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1, ESD Protection)

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 3.2 Gen1 Ports (ESD Protection)
• 4 x USB 2.0 Ports (ESD Protection)
• 1 x RJ-45 LAN Port with ACT/LINK and SPEED LEDs
• HD Audio Jacks: Line In / Front Speaker / Microphone

BIOS & Management

• 128Mb AMI UEFI Legal BIOS with multilingual GUI
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 support
• Voltage multi-adjustment for: CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC

UEFI Features

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Instant Flash
• ASRock Internet Flash

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN

Hardware Monitoring & Cooling

• Fan Tachometer: CPU, Chassis/Water Pump Fans
• Quiet Fan (auto adjusts chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
• CASE OPEN detection
• Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V

Included Accessories

• Quick Installation Guide
• Support CD (Drivers, Utilities, AntiVirus Software trial)
• I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Operating System Support

• Microsoft Windows 10 64-bit
• Microsoft Windows 11 64-bit
