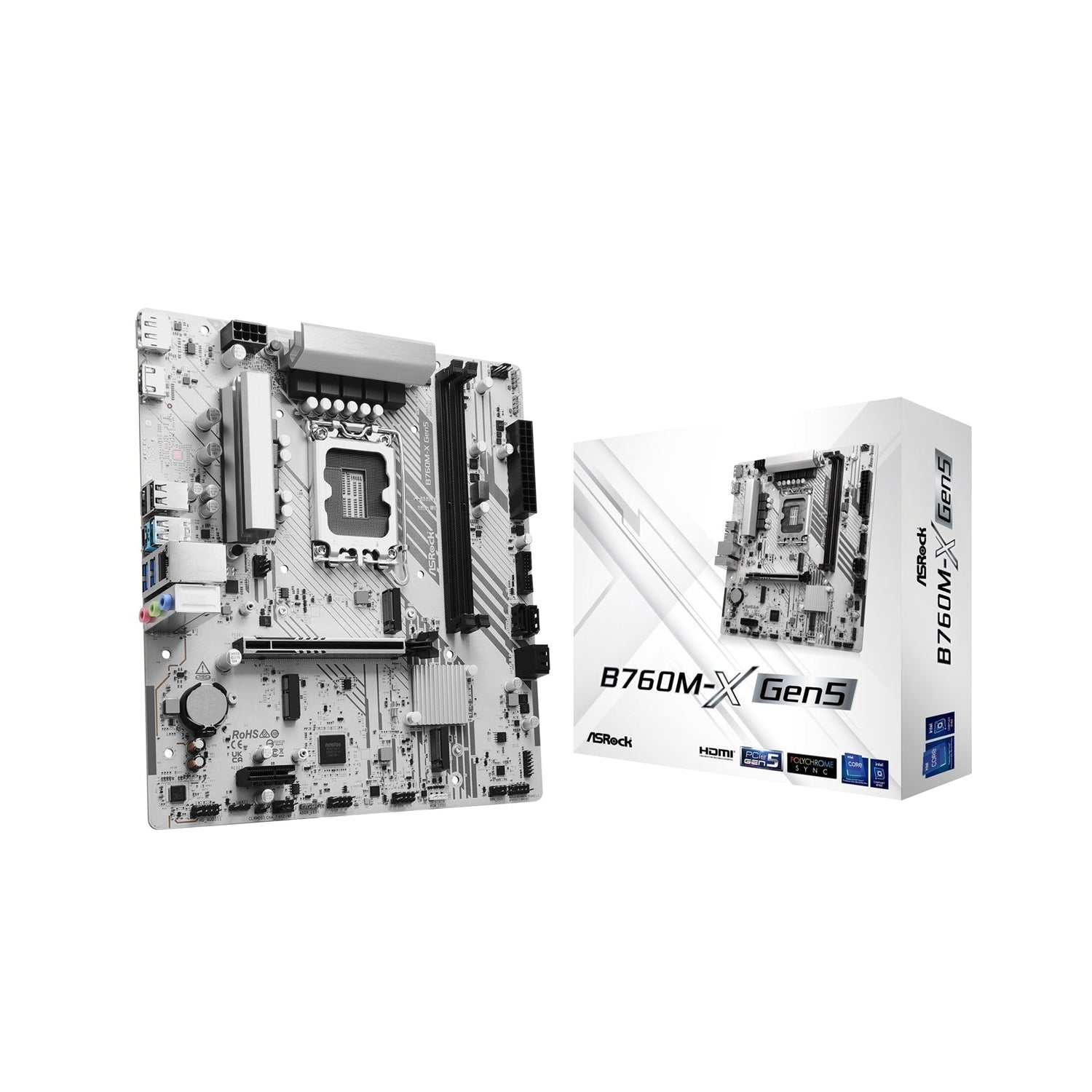

ASRock B760M-X Gen5 Micro ATX Motherboard

The ASRock B760M-X Gen5 is a micro ATX motherboard designed for Intel® 14th, 13th, and 12th Gen Core™ processors, delivering PCIe Gen5 graphics support, DDR5 memory, and fast connectivity in a compact form factor.

Key Features

Superb Productivity

• PCIe Gen5 support for graphics
• Dual Channel DDR5 memory technology

Rock-Solid Durability

• 7+1+1 power phase design
• ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

Ultrafast Connectivity

• 2.5G LAN
• ASRock Auto Driver Installer

CPU & Chipset

Memory

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible
• Supports HDCP 2.3
• Max resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed)
• Supports HDCP 2.3
• Max resolution up to 8K 60Hz / 5K 120Hz

Audio

• 7.1 CH HD Audio
• Realtek ALC897 Audio Codec

LAN & Networking

Wired LAN

Dragon 2.5G LAN Software: - Smart auto adjust bandwidth control
- Visual, user-friendly UI
- Visual network usage statistics
- Optimized default settings for Game, Browser, and Streaming modes
- User customized priority control

Wireless

• 1 x M.2 Socket (Key E), supports type 2230 PCIe WiFi/BT module

Expansion Slots

CPU (PCIe Lanes)

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset

• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

M.2 Slots (Chipset)

• 1 x Hyper M.2 Socket (M2_1, Key M)
• Supports type 2260/2280

• PCIe Gen4x4 (64 Gb/s) mode*

• 1 x Ultra M.2 Socket (M2_2, Key M)

• Supports type 2280
• PCIe Gen3x4 (32 Gb/s) modes*

SATA

• 4 x SATA3 6.0 Gb/s connectors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB Connectivity

Chipset

• Rear:
• 1 x USB 3.2 Gen1 Type-C
• 3 x USB 3.2 Gen1 Type-A

• 2 x USB 2.0

• Front (via headers):

• 2 x USB 3.2 Gen1 (via 1 x header)
• 4 x USB 2.0 (via 2 x headers)

Internal Connectors & Headers

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**

Cooling & Power

• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector

Front Panel & Audio

• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (support 4 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1 ports)

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line In / Front Speaker / Microphone

Software & UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI Features

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer

Accessories

• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor

• Micro ATX
• Dimensions: 9.6 in x 8.7 in (24.4 cm x 22.1 cm)

Operating System Support

• Microsoft Windows® 10 64-bit
• Microsoft Windows® 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
