ASRock B650M-H/M.2+ AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, GbE LAN, 1x DsiplayPort / 1x HDMI Port

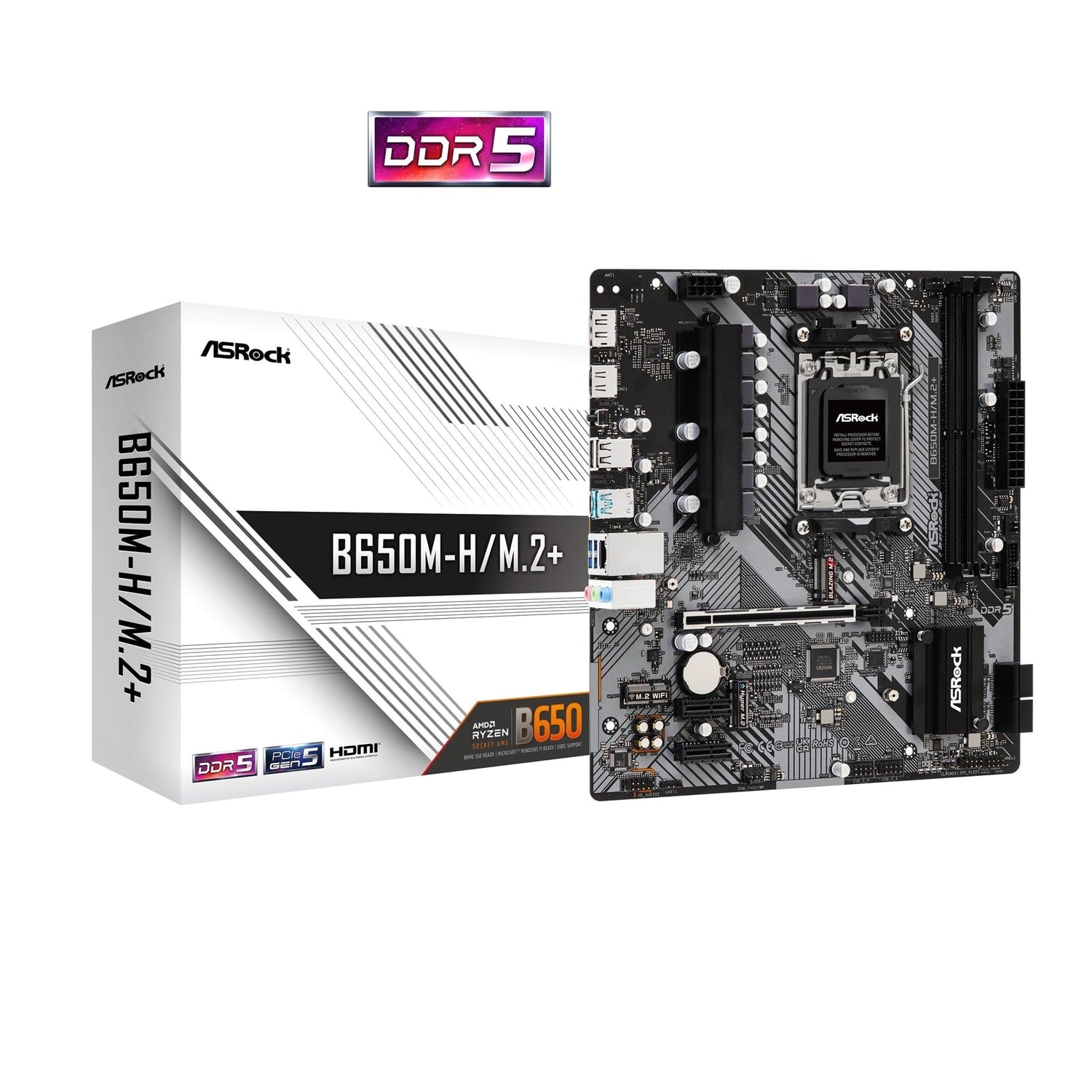

ASRock B650M-H/M.2+ Micro ATX Motherboard

The ASRock B650M-H/M.2+ is a micro ATX motherboard designed for AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series processors, offering PCIe Gen5 M.2 storage, DDR5 memory support, and a range of productivity and troubleshooting features.

Key Features

Superb Productivity

• PCIe Gen5 (M.2)
• Dual Channel DDR5 memory support

Rock-Solid Durability

• 6+1+1 Power Phase design
• 50A Dr.MOS for VCore

EZ Update

• BIOS Flashback Button
• ASRock Auto Driver Installer

EZ Troubleshooter

• ASRock Post Status Checker

CPU & Chipset

*Actual support may vary by CPU.

Memory

*OC support may vary by configuration.

BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (actual support may vary by CPU):

• 1 x HDMI 2.1 TMDS/FRL 8G compatible
• Supports HDR, HDCP 2.3
• Max resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed)
• Supports HDCP 2.3
• Max resolution up to 4K 120Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

LAN & Wireless

• Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Wireless LAN: N/A

Expansion Slots

From CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

From Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

*Actual support may vary by CPU and device configuration.

Storage

From CPU: - 1 x Blazing M.2 Socket (M2_1, Key M)
- Supports type 2280
- PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M)
- Supports type 2260/2280
- PCIe Gen4x4 (64 Gb/s) mode

From Chipset: - 4 x SATA3 6.0 Gb/s Connectors

*Actual bandwidth depends on CPU and configuration.

RAID Support

• RAID 0, RAID 1 and RAID 10 for SATA storage devices
• RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB Connectivity

• Rear:
• 1 x USB 3.2 Gen1 Type-C
• 3 x USB 3.2 Gen1 Type-A
• 2 x USB 2.0
• Front (via headers):
• 2 x USB 3.2 Gen1 (via 1 x header)
• 4 x USB 2.0 (via 2 x headers)

Internal Connectors

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (support 4 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1 ports)

* CPU_FAN1 supports up to 1A (12W).
** CHA_FAN1~3/WP support up to 2A (24W) and can auto-detect 3-pin or 4-pin fans.

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line In / Front Speaker / Microphone

Software & UEFI

Software: - ASRock Motherboard Utility (A-Tuning)

UEFI: - ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor

• Micro ATX Form Factor
• Dimensions: 9.6 in x 8.9 in (24.4 cm x 22.6 cm)

Operating System Support

• Microsoft Windows® 10 64-bit
• Microsoft Windows® 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
