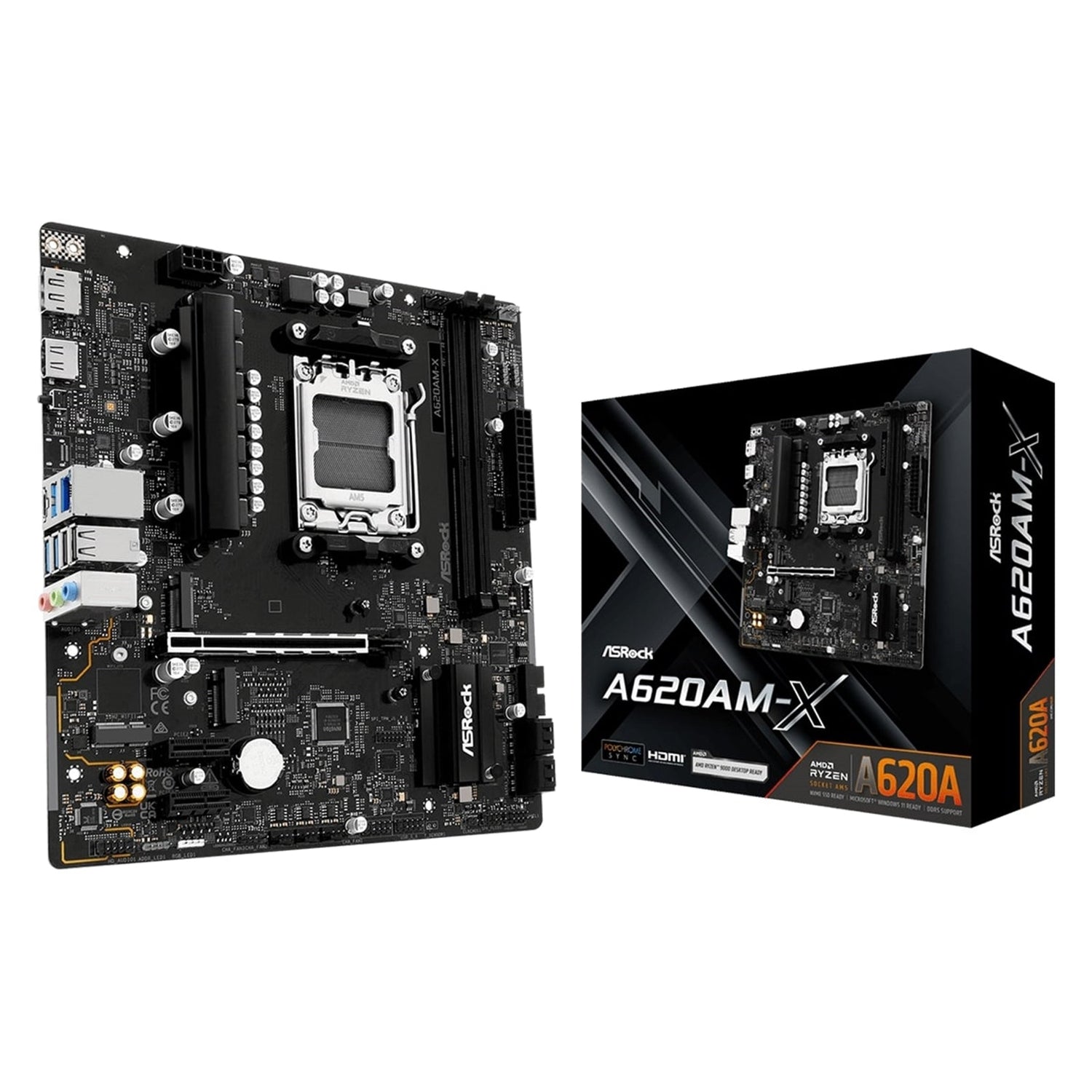

ASRock A620AM-X AMD Socket AM5 Motherboard, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 1x HDMI Port / 1x Display Port

ASRock A620AM-XX Series Micro ATX Motherboard

The ASRock A620AM-XX Series motherboard delivers a compact, high-value platform that balances performance, versatility, and reliability for both professional and everyday computing tasks.

Key Features

Optimized Power Design

6+1+1 Power Phase Design with Dr.MOS for VCore
- Sturdy components and smooth power delivery to the CPU
- Enhanced performance for gamers and power users

Dr.MOS Power Stages
- Integrated power stage optimized for synchronous buck step-down applications
- Higher current and improved thermal efficiency compared to traditional MOSFETs
- Increased system stability under load

Hi-Density Power Connector
- Designed to handle higher currents than traditional CPU and ATX power connectors
- Supports heavy CPU overclocking with improved system stability
- Reduces fire risk during extreme overclocking scenarios

Advanced PCB & Memory Performance

6-Layer PCB
- Stable signal traces and optimized power delivery
- Lower operating temperatures and higher energy efficiency
- Supports the latest memory modules and extreme memory performance

Dual Channel DDR5 with XMP & EXPO Support
- Dual Channel DDR5 Memory Technology
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+ (OC)
- Max system memory up to 128 GB
- Supports Intel XMP and AMD EXPO pre-tested profiles
- Built with high-quality materials for stable, reliable DDR5 overclocking

High-Speed Storage & Connectivity

PCIe 4.0 M.2 Solution
- Supports PCI Express 4.0 M.2 SSDs
- Up to 2x the speed of previous 3rd generation PCIe
- Delivers lightning-fast data transfer for responsive system performance

Dragon 2.5 Gb/s LAN
- Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mb/s)
- Up to 2.5X the bandwidth of standard Gigabit Ethernet
- Ideal for online gaming, content creation, streaming, file transfers, and backups
- Smart Auto Adjust Bandwidth Control
- Visual, user-friendly network usage statistics
- Optimized default profiles for gaming, browsing, and streaming
- Customizable priority control

Wi-Fi 6E (802.11axe) Ready
- Supports Wi-Fi 6E technology in the 6 GHz spectrum band
- Higher Wi-Fi capacity and faster internet traffic handling
- Lower latency with performance comparable to 5G-class service levels

Front USB 3.2 Gen1 Type-C
- Front panel USB 3.2 Gen1 Type-C header
- Up to 5 Gbps data transfer rate
- Reversible USB design for convenient front access

Intelligent Cooling & Build Enhancements

Aluminum Heatsink Design
- Optimized aluminum heatsinks for efficient heat dissipation
- Maintains thermal performance under heavy workloads such as gaming and productivity
- Helps ensure long-term system stability and durability

Smart Fan Control
- 1 x CPU Fan connector (4-pin)
- 3 x Chassis/Water Pump Fan connectors (4-pin) with Smart Fan Speed Control

Immersive Audio with Nahimic

7.1 CH HD Audio (Realtek ALC897 Codec)

Nahimic Audio Features
- Rich, detailed sound over headphones, headsets, speakers, USB, Wi-Fi, analog, or HDMI
- Enhanced communication with powerful noise-free algorithms
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
- Clearer voice, reduced interference, and lower listening fatigue

Ultimate Gaming Experience
- Sound Tracker: Visual indicator showing the direction of predominant in-game sounds
- 360° sound positioning on a radar for deeper immersion

Broad Device Compatibility
- Works with your favorite audio devices and tools
- Nahimic continuously optimizes technology for the best possible sound experience

RGB Lighting & Control

Polychrome RGB
- Onboard RGB and addressable RGB headers
- Connect compatible LED strips, CPU fans, coolers, chassis lighting, and more
- Sync across Polychrome RGB Sync-certified accessories
- Create custom lighting effects to match your build style

Signal RGB Integration
- Unified control of RGB devices
- Seamless customization with game-reactive effects
- Macro automation and system monitoring
- Enhanced compatibility and flexible lighting control via official partnership

Diagnostics & Ease of Use

Post Status Checker
- Colored LEDs display real-time status of:
- CPU
- DRAM
- VGA
- BOOT device
- Simple, at-a-glance way to confirm system operation and assist troubleshooting

EZ Troubleshooter & Utilities
- EZ Troubleshooter
- EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Motherboard Utility (A-Tuning)

Specifications

Unique Features

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 6+1+1 Power Phase, Dr.MOS for VCore
• Ultrafast Connectivity 2.5G LAN
• EZ Update
• BIOS Flashback Button
• ASRock Auto Driver Installer
• EZ Troubleshooter
• ASRock Post Status Checker

CPU

• Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors

Chipset

• AMD A620A

Memory

BIOS

Graphics Output

Audio

LAN

Expansion Slots

Storage

RAID Support
- RAID 0, 1, 10 for SATA storage devices
- RAID 0, 1, 10 for M.2 NVMe storage devices

USB Ports

Internal Connectors

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 3 x Chassis/Water Pump Fan Connectors (4-pin, Smart Fan Speed Control)
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (supports 4 x USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (supports 2 x USB 3.2 Gen1 ports)
• 1 x Front Panel Type-C USB 3.2 Gen1 Header

Rear I/O Panel

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line In / Front Speaker / Microphone

Software & UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC

UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor

• Micro ATX
• Dimensions: 9.6 in x 8.9 in (24.4 cm x 22.6 cm)

Operating System Support

• Microsoft Windows 10 64-bit
• Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)
