ASRock A620AM PRO RS AMD Socket AM5 Motherboard, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, 1x HDMI Port/ 1x DisplayPort

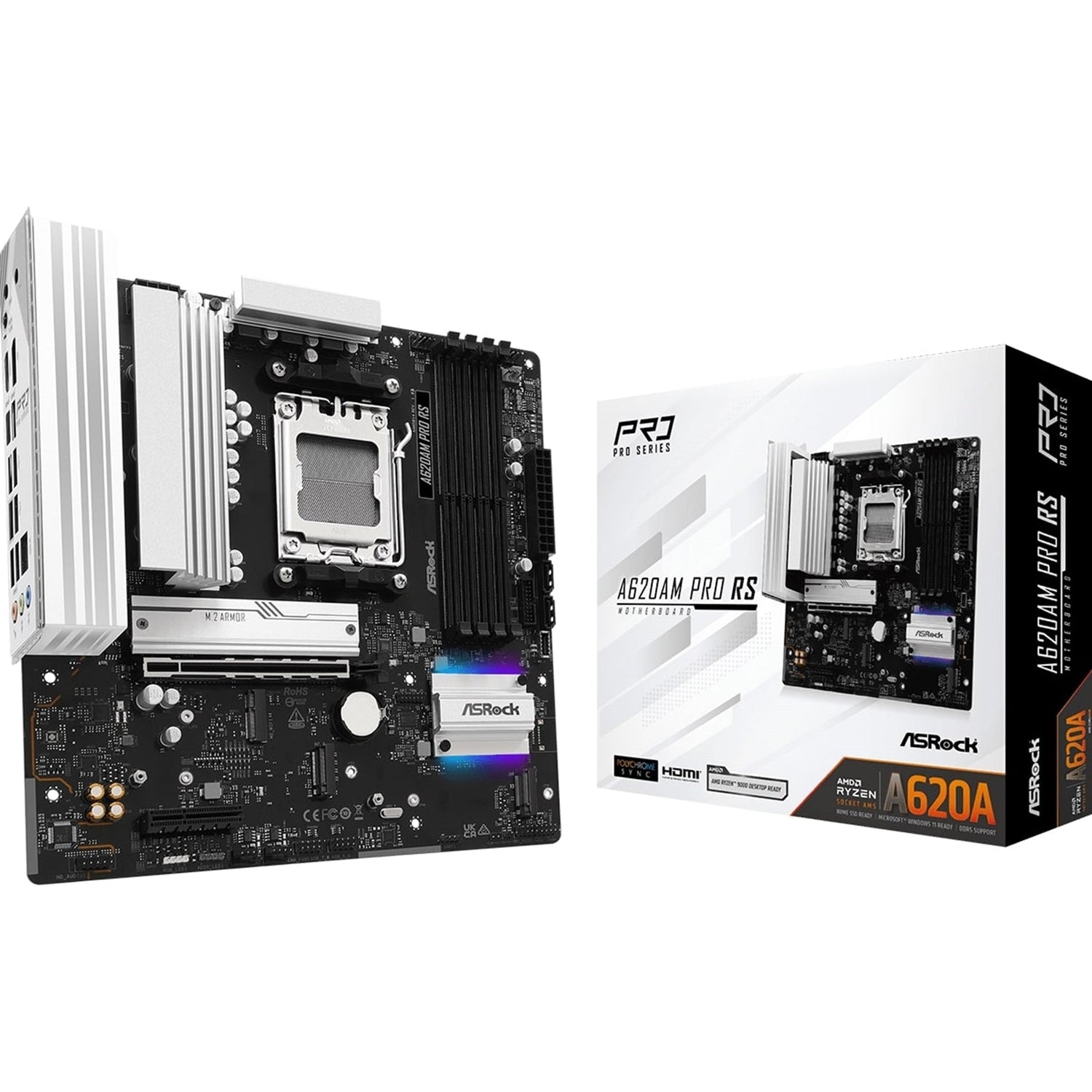

ASRock A620AM Pro RS Motherboard (Race Sport Edition)

The ASRock A620AM Pro RS brings modern, futuristic design together with balanced, gaming-ready performance in the popular PRO series Race Sport (RS) Edition.

Key Features

Optimized Power Design

• 6+2+1 Power Phase Design with Dr.MOS
  Sturdy components and smooth power delivery provide enhanced performance, stability, and efficiency for gamers and enthusiasts.
• Dr.MOS Power Stages
  Integrated power stages optimized for synchronous buck applications deliver higher current and improved thermal efficiency compared to traditional MOSFETs.
• Hi-Density Power Connector
  Designed to withstand higher current than traditional CPU and ATX connectors, helping provide a more stable system and reducing risk during heavy CPU overclocking.
• 6-Layer PCB
  Delivers stable signal traces, lower temperatures, and higher energy efficiency, supporting extreme DDR5 memory overclocking performance.

Memory Performance

• Dual Channel DDR5
  4 x DDR5 DIMM slots, supporting ECC/non-ECC, un-buffered memory up to 7200+(OC), with a maximum system capacity of 256GB.
• DDR5 XMP & EXPO Support
  Built for stability and reliability, this board supports Intel XMP and AMD EXPO profiles for easy DDR5 overclocking when using compatible modules.

High-Speed Storage

• PCIe 4.0 M.2 Support
  Supports PCI Express 4.0 M.2 SSDs, capable of up to twice the speed of 3rd generation PCIe for lightning-fast data transfers.
• M.2 & SATA Configuration
• CPU:
  • 1 x Hyper M.2 (M2_1, Key M), 2260/2280, PCIe Gen4x4 (64 Gb/s)
  • 1 x Hyper M.2 (M2_2, Key M), 2260/2280, PCIe Gen4x4 (64 Gb/s)
• Chipset:
  • 1 x Ultra M.2 (M2_3, Key M), 2260/2280, PCIe Gen3x4 (32 Gb/s)
  • 2 x SATA3 6.0 Gb/s connectors
• RAID Support
  Supports RAID 0, 1, 10 for both SATA and M.2 NVMe storage devices.

Intelligent Cooling

• Aluminum Heatsink Design
  Optimized aluminum heatsinks aid efficient heat dissipation under heavy workloads such as gaming or productivity tasks, helping ensure long-term stability and durability.
• Comprehensive Fan Headers
• 1 x CPU Fan (4-pin)
• 1 x CPU/Water Pump Fan (4-pin, Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan (4-pin, Smart Fan Speed Control)

Networking & Connectivity

Dragon 2.5 Gb/s LAN

• High-Speed 2.5G Ethernet (Dragon RTL8125BG)
• 10/100/1000/2500 Mb/s
• Optimized for home networking, content creation, online gaming, and high-quality streaming.
• Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual network usage statistics
• Optimized default profiles for game, browser, and streaming
• User-customizable priority control

USB Connectivity

• Rear USB (CPU + Chipset)
• 1 x USB 3.2 Gen1 Type-C
• 3 x USB 3.2 Gen1 Type-A
• 4 x USB 2.0
• Front USB Headers (Chipset)
• 1 x USB 3.2 Gen1 Type-C header (up to 5 Gb/s, reversible Type-C for front panel)
• 1 x USB 3.2 Gen1 header (supports 2 x USB 3.2 Gen1 Type-A)
• 2 x USB 2.0 headers (support 4 x USB 2.0 ports)

Graphics & Audio

Integrated Graphics (CPU-Dependent)

• Display Outputs
• 1 x HDMI 2.1 TMDS/FRL 8G compatible
  • Supports HDR, HDCP 2.3, up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed)
  • Supports HDCP 2.3, up to 4K 120Hz
• Note: Actual integrated graphics support may vary by CPU.

Audio

• 7.1 CH HD Audio
• Realtek ALC897 Audio Codec
• Nahimic Audio support

Expansion & Slots

• PCIe Slots
• CPU:
  • 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode, 15µ gold contacts
• Chipset:
  • 1 x PCIe 3.0 x16 slot (PCIE2), supports x2 mode
  • 1 x M.2 (Key E) socket, type 2230, for PCIe WiFi/BT module

RGB Lighting & Control

• Polychrome RGB
• Onboard RGB header
• 3 x addressable RGB headers
• Connect compatible LED strips, CPU fans, coolers, chassis, and more.
• Synchronize lighting with Polychrome RGB Sync-certified accessories for custom effects.
• Signal RGB Integration
• Unified RGB device control
• Game-reactive effects, macro automation, and system monitoring
• Enhanced compatibility and flexibility for RGB customization.

System Monitoring & Ease of Use

• Post Status Checker
  Displays real-time status of CPU, DRAM, VGA, and BOOT devices with colored LEDs during startup for quick troubleshooting.
• EZ Troubleshooter & ASRock Post Status Checker
  Tools designed to simplify system diagnostics.
• Pre-Installed I/O Shield
  Streamlines installation and provides a clean, secure rear I/O fit.
• BIOS Flashback Button
  Easily update BIOS from the rear panel without needing CPU or memory installed.
• EZ Update & Drivers
• ASRock Auto Driver Installer
• EZ Update
• ASRock Instant Flash

Software & UEFI

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software

• ASRock Polychrome SYNC

• UEFI Features

• 256Mb AMI UEFI Legal BIOS with GUI support
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Rear I/O Panel

• 2 x Antenna mounting points
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 3 x USB 3.2 Gen1 Type-A ports
• 1 x USB 3.2 Gen1 Type-C port
• 4 x USB 2.0 ports
• 1 x RJ-45 2.5G LAN port
• 1 x BIOS Flashback button
• HD audio jacks: Line In / Front Speaker / Microphone

Internal Headers & Connectors

• 1 x 24-pin ATX power connector
• 1 x 8-pin 12V CPU power connector (Hi-Density Power Connector)
• 1 x SPI TPM header
• 1 x Power LED and Speaker header
• 1 x RGB LED header
• 3 x Addressable LED headers
• 1 x Front panel audio connector
• 2 x USB 2.0 headers (4 ports)
• 1 x USB 3.2 Gen1 header (2 ports)
• 1 x Front panel USB 3.2 Gen1 Type-C header

CPU & Chipset

Form Factor

• Micro ATX
• Dimensions: 9.6 in x 9.6 in (24.4 cm x 24.4 cm)

Operating System Support

• Microsoft Windows 10 64-bit
• Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)

Included Accessories

• 1 x User Manual
• 2 x SATA data cables
• 4 x Screws for M.2 sockets
• 1 x Standoff for M.2 socket

Highlighted Advantages

• Superb Productivity with dual channel DDR5
• Rock-Solid Durability with 6+2+1 Power Phase and Dr.MOS
• Ultrafast Connectivity via Dragon 2.5G LAN and multiple USB 3.2 Gen1 ports
• Modern aesthetics with Polychrome RGB and Signal RGB support
• User-friendly features including pre-installed I/O shield, BIOS Flashback, EZ Troubleshooter, and comprehensive software suite.
